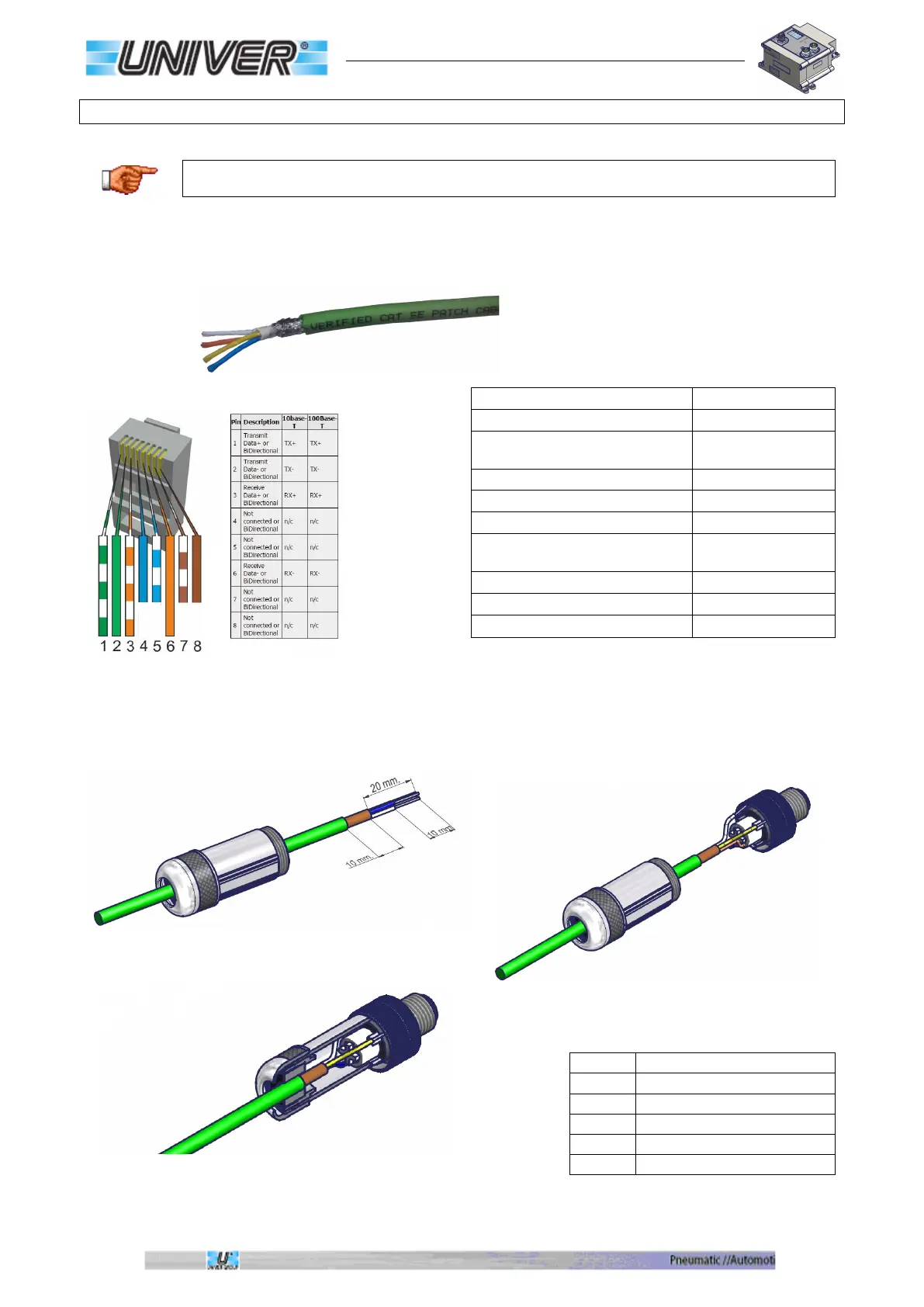

Connection to the Profinet, EtherNet/IP, EtherCAT fieldbus network
Connect the module with the appropriate network cable in accordance with the
following table:
Ethernet cable specifications
Connector for fieldbus TZ-M4M12-D to be connected to
BUS 1 and BUS 2.

Description
Features
ISO/IEC 11801 Ed. 2.0, category 5
(Category)
ISO/IEC 11801 Ed. 2.0 Class D
(Transmission
performances)
Conductor cross-section
AWG 22
Maximal operating voltage
300V RMS
Massimal resistance at 20°C
57.1 Ohm / km
Transfer Impendance at
10 MHz
< 40 mOhm / m
Nominal propagation speed 68%
Delay
< 5.3 ns / m
Impendance at 1 – 100 MHz
100 +/- 15 Ohm
Pin
Cable color
1
Yellow
2
White
3
Orange
4
Blue
Case
Shield
