UniVer TC User Manual

Rev.B15
Pg. 64 di 80

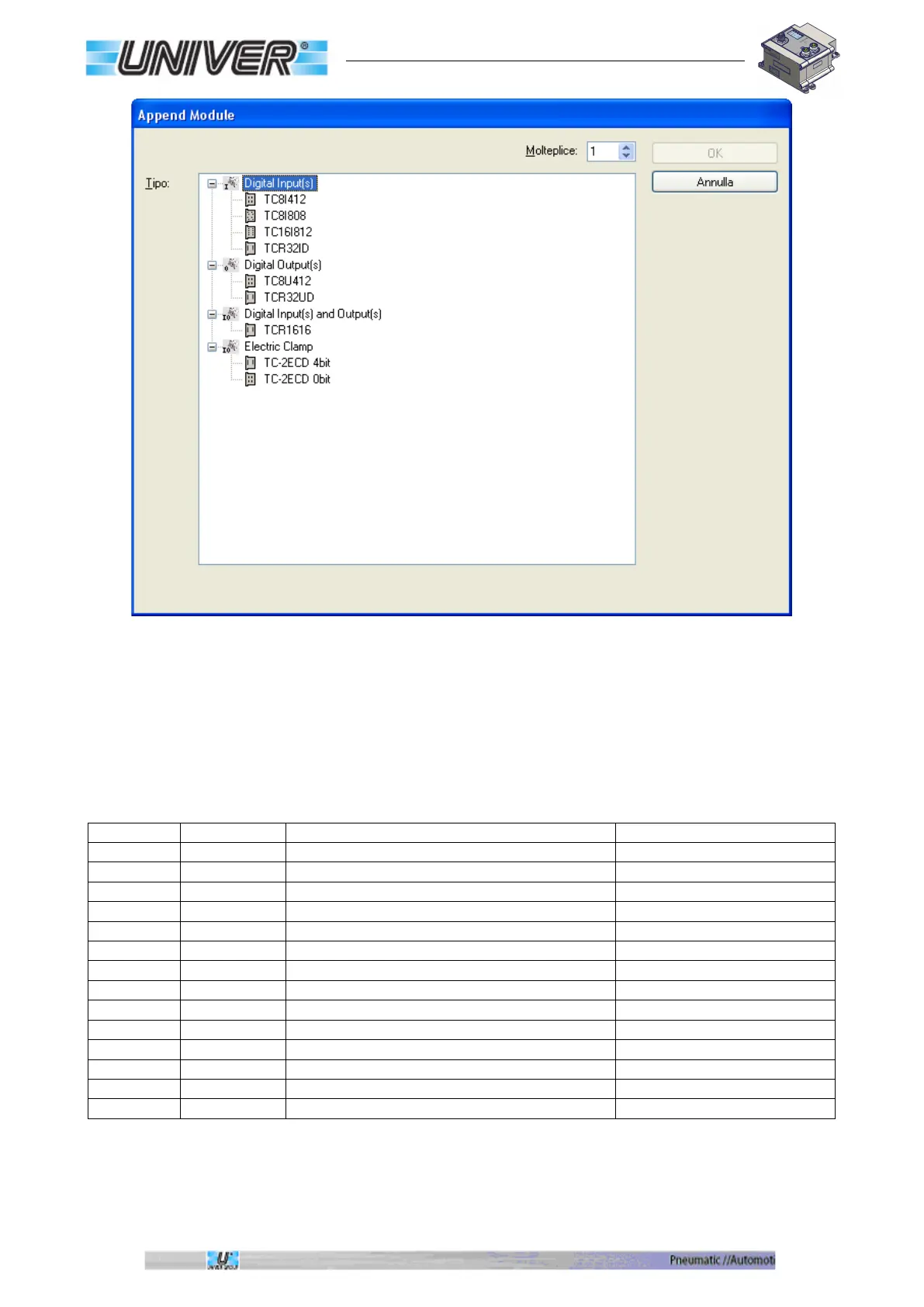

The above indications are just a rough indication of how to configure the devide, for more details on the use of the software
“TwinCAT”, the various configuration possibilities and the related operating models, refer to the software manual.
The management of the configuration of the various parameters takes place via dictionary F8000h and sub index from
1 to 14 (E in hexadecimal).
Dictionary
Sub index
Dunction
Admitted value
F800h
1
Diag: 24V Main Power Loss
0 = Disable – 1 = Enable
F800h
2
Diag: Module Fail
0 = Disable – 1 = Enable
F800h
3
Diag: Output Fail
0 = Disable – 1 = Enable
F800h
4
Diag: High Noise level
0 = Disable – 1 = Enable
F800h
5
Diag: 24V Input power loss
0 = Disable – 1 = Enable
F800h
6
Fast Input response time
0 = Slow – 1 = Fast
F800h
7
Mode Manifold First
0 = False – 1 = True
F800h
8
Turn off output on Fail
0 = False – 1 = True
F800h
9
Extended Diag.
0 = False – 1 = True
F800h
A
Diag: Electric Clamp Fail
0 = Disable – 1 = Enable
F800h
B
Diag: Clamp Command Fail
0 = Disable – 1 = Enable
F800h
C
Clamp LagTime
5..80 in steps of 5
F800h
D
Clamp Contemporary
1..8
F800h
E
Keep output on Safe OP
0 = Disable – 1 = Enable
