3.3. Robot Control

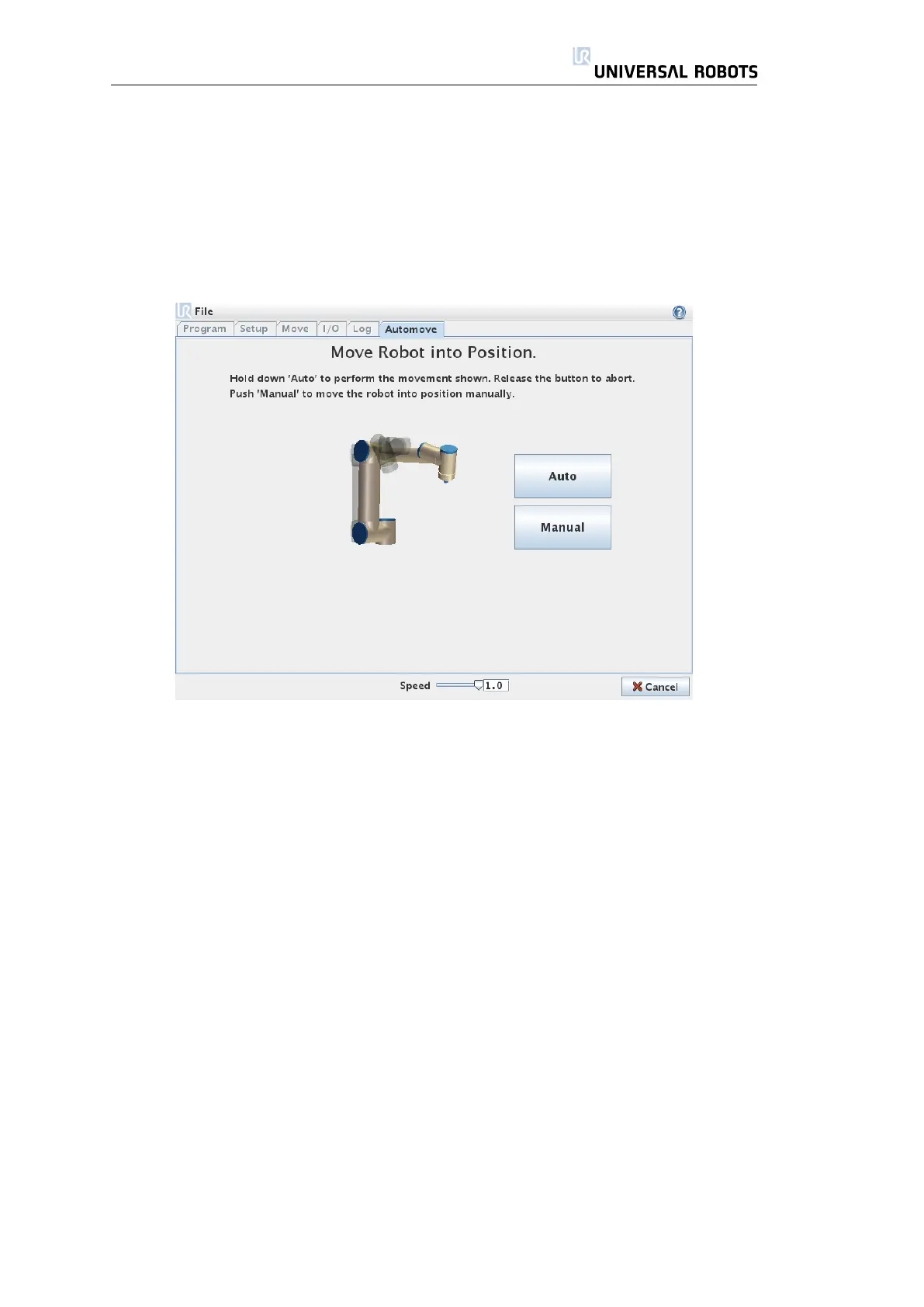

3.3.3 AutoMove Tab
The AutoMove tab is used when the robot has to move to a specific position in
its workspace. Examples are when the robot has to move to the start position of
a program before running it, or when moving to a waypoint while modifying a
program.
Animation
The animation shows the movement the robot is about to perform. Compare
the animation with the position of the real robot and make sure that robot can
safely perform the movement without hitting any obstacles.
Auto
Hold down the Auto button to move the robot as shown in the animation. Note:
Release the button to stop the motion at any time!
Manual
Pushing the Manual button will take you to the MoveTab where the robot can
be moved manually. This is only needed if the movement in the animation is not
preferable.
41 UR-6-85-5-A
