3.5. Setup

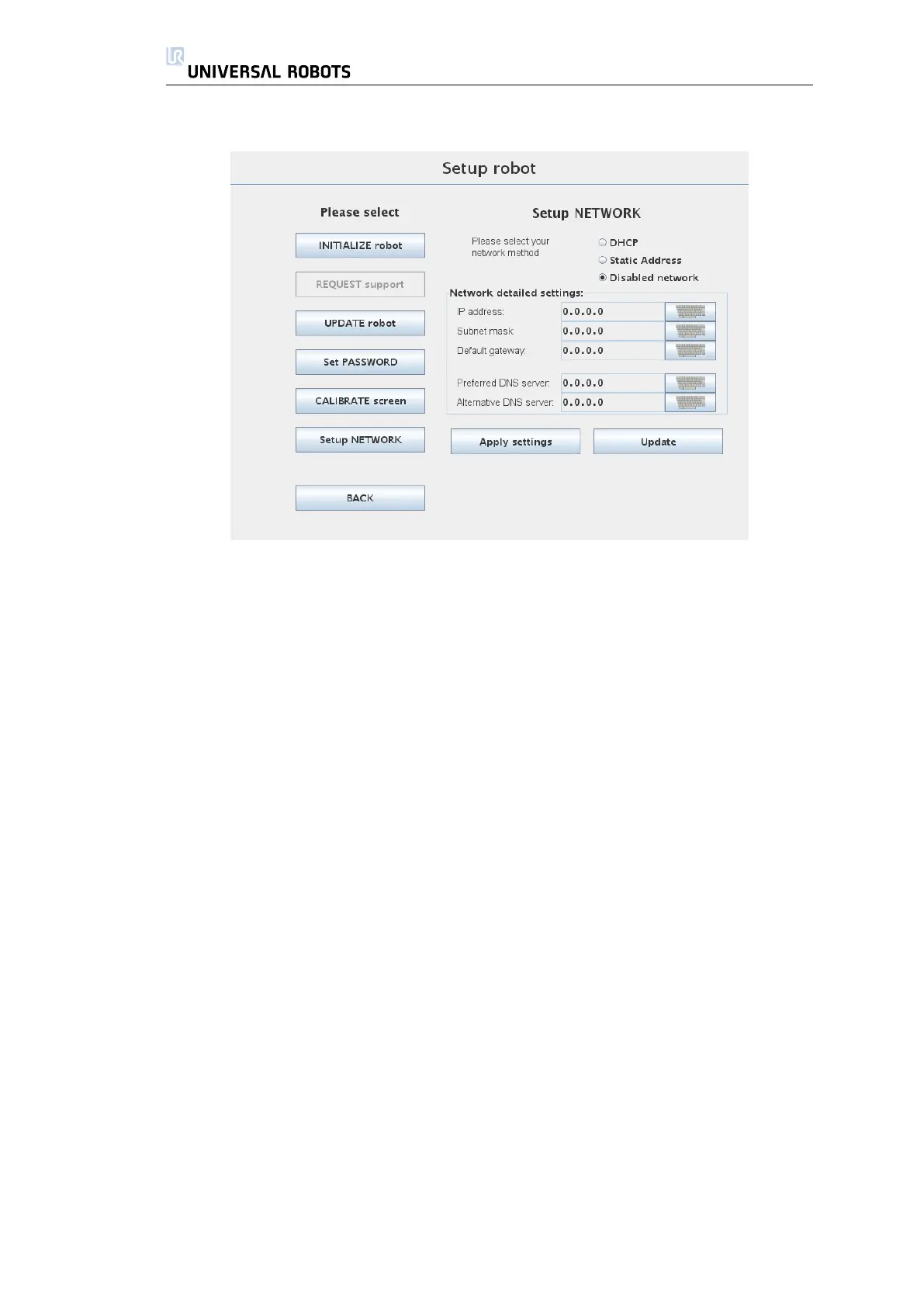

3.5.6 Setup Screen → Network

Panel for setting up the Ethernet network. An Ethernet connection is not neces-

sary for the basic robot functions, and is disabled by default.
