Vacon 100 flow Installation Manual

4.7 DIMENSIONS OF OPTIONS FOR MR10 AND MR12
18 (0.71)
70
(2.76)
9
(0.35)
31
288 (11.33)
286 (11.25)
305 (12.01)
315 (12.38)
181
(7.13)
107
Ø13 (0.49)
Ø13
(0.49)
Ø7
(0.26)
Ø7 (0.28)
174 (6.85)
160 (6.31)
155 (6.10)
83
(3.26)
155
(6.10)
148 (5.83)
169 (6.66)
53 (2.09)
58
(2.27)
5
(0.20)
53 (2.09)
40 (1.57)
(4.20)
(1.20)

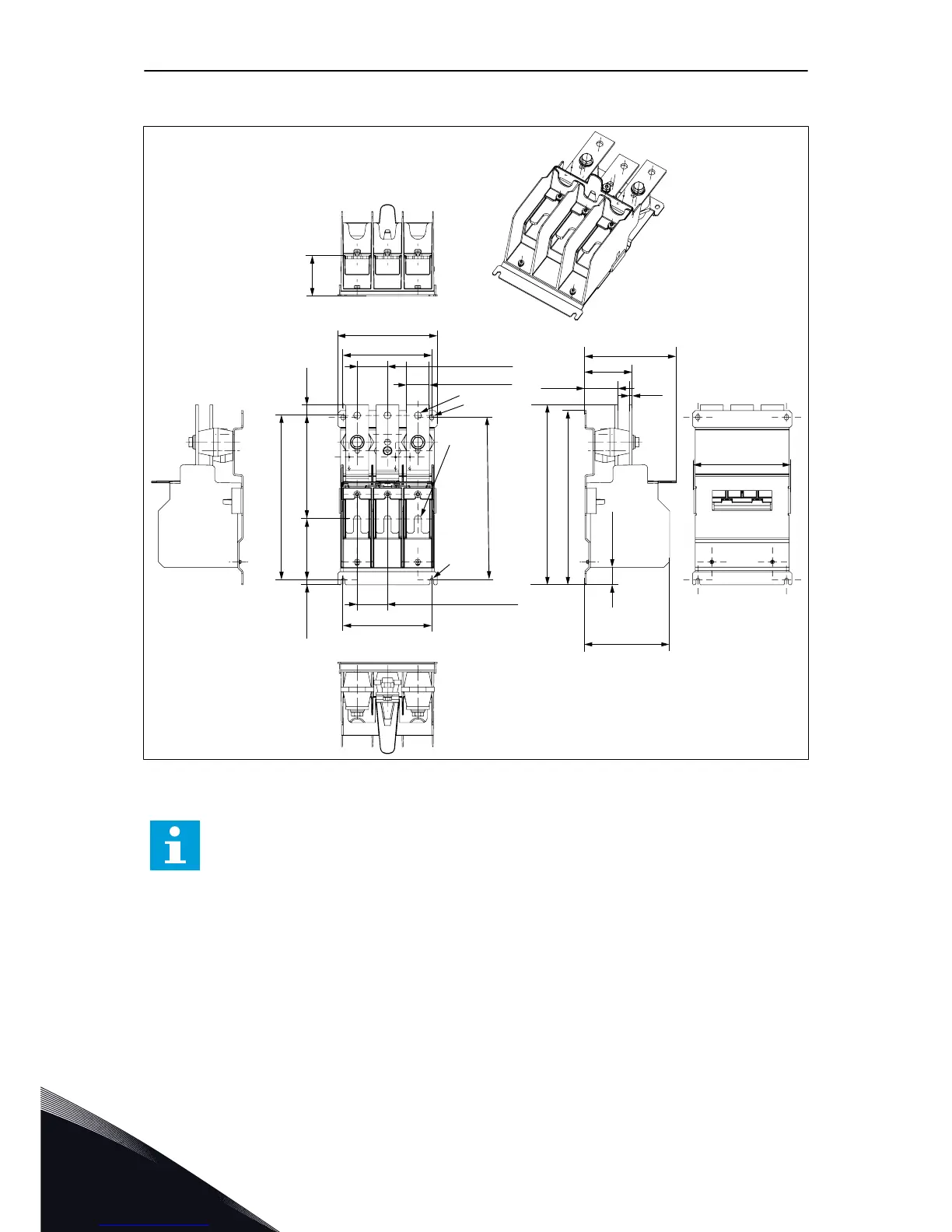

Fig. 10: Dimensions of the optional external power connection block (+PCTB), used without the
options module [mm (in)]
NOTE!
The optional external power connection block is necessary when the cabling is
made with 3 parallel motor cables.
VACON · 28 MOUNTING DIMENSIONS
4
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/

Vacon 100 flow Specifications

General

Protection class	IP20
Communication interface	RS-485
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +70°C
Ambient temperature	-10°C to +40°C
Control method	Sensorless vector control
Communication protocols	CANopen
Approvals	CE, UL
I/O	2 analog inputs
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Frequency range	0 Hz to 400 Hz
Humidity	5% to 95%, non-condensing
Voltage range	208-240 V
