5.2.1 INSTALLING THE IP00 DRIVE MODULE INTO THE CABINET
INSTALLING THE IP00 DRIVE MODULE WITHOUT THE OPTIONS MODULE

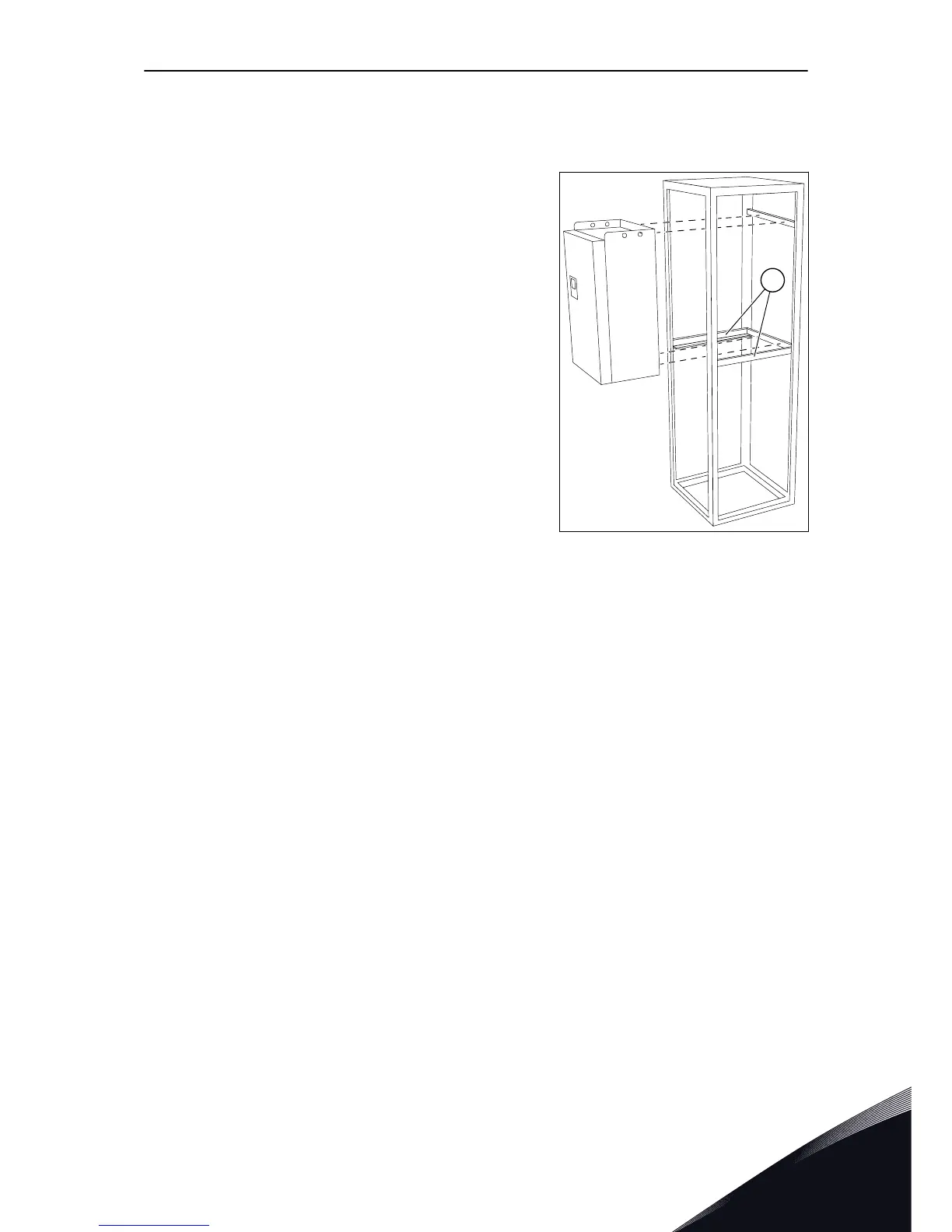

1 We recommend that you install the IP00 drive
module on rails inside the cabinet.
A
A. The rails inside the cabinet
2 Use fixing points to attach the IP00 drive module
into the cabinet. See the locations of the fixing
points in Chapter 4 Mounting dimensions.
INSTALLING THE MR10 OR MR12 IP00 DRIVE MODULE WITH AN OPTIONS MODULE
Here you can see a recommended installation of the IP00 drive module with an options
module into the cabinet.
