Vacon 100 flow Installation Manual

4 MOUNTING DIMENSIONS
4.1 DIMENSIONS OF MR8, IP00
10
(0.37)
290 (11.42)
187 (7.34)
255 (10.04)
217 (8.54)
794 (31.26)
683 (26.89)
663 (26.10)
18
(0.71)
172 (6.75)
343 (13.50)
216 (8.49)
11
(0.43)
15
(0.59)
Ø9 (0.35)
Ø9
(0.35)
Ø22
(0.87)
Ø11 (0.43)
A

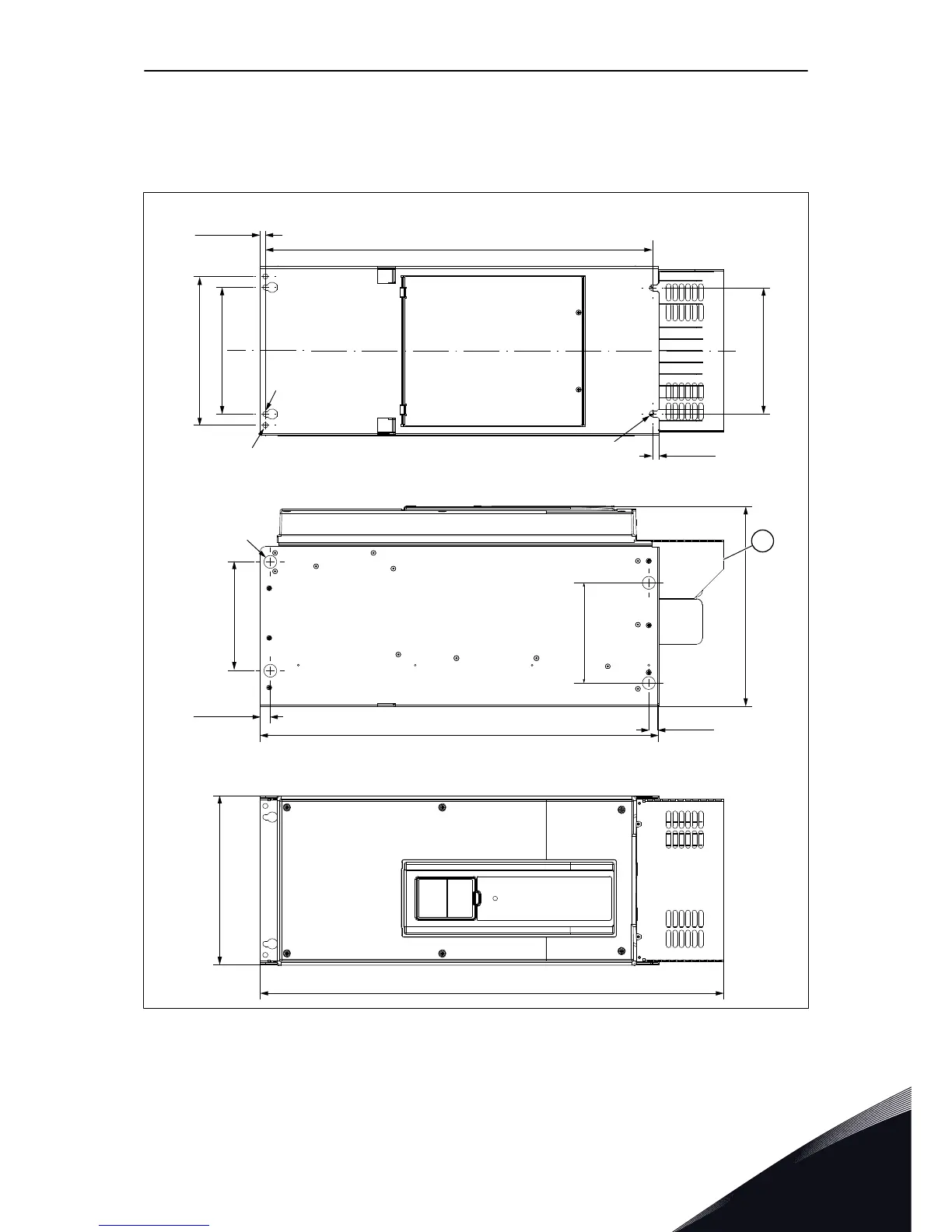

Fig. 3: The dimensions of the AC drive, MR8, [mm (in)]
MOUNTING DIMENSIONS VACON · 21
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
4

Vacon 100 flow Specifications

General

Protection class	IP20
Communication interface	RS-485
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +70°C
Ambient temperature	-10°C to +40°C
Control method	Sensorless vector control
Communication protocols	CANopen
Approvals	CE, UL
I/O	2 analog inputs
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Frequency range	0 Hz to 400 Hz
Humidity	5% to 95%, non-condensing
Voltage range	208-240 V
