Vacon 100 flow - Dimensions for Flange Mounting of MR10

4.6 DIMENSIONS FOR FLANGE MOUNTING OF MR10
1070 (42.13)
1080 (42.52)
103 (4.06)
243 (9.57)
525 (20.67)
222 (8.74)
576 (22.68)
544 (21.42)
200
(7.87)
45
(1.77)
75
(2.95)
15
(0.6)
M8 GND
Ø22
(0.87)
Ø11
(0.43)
Ø12
(0.47)
215
(8.46)
63
(2.48)
1110 (43.70)

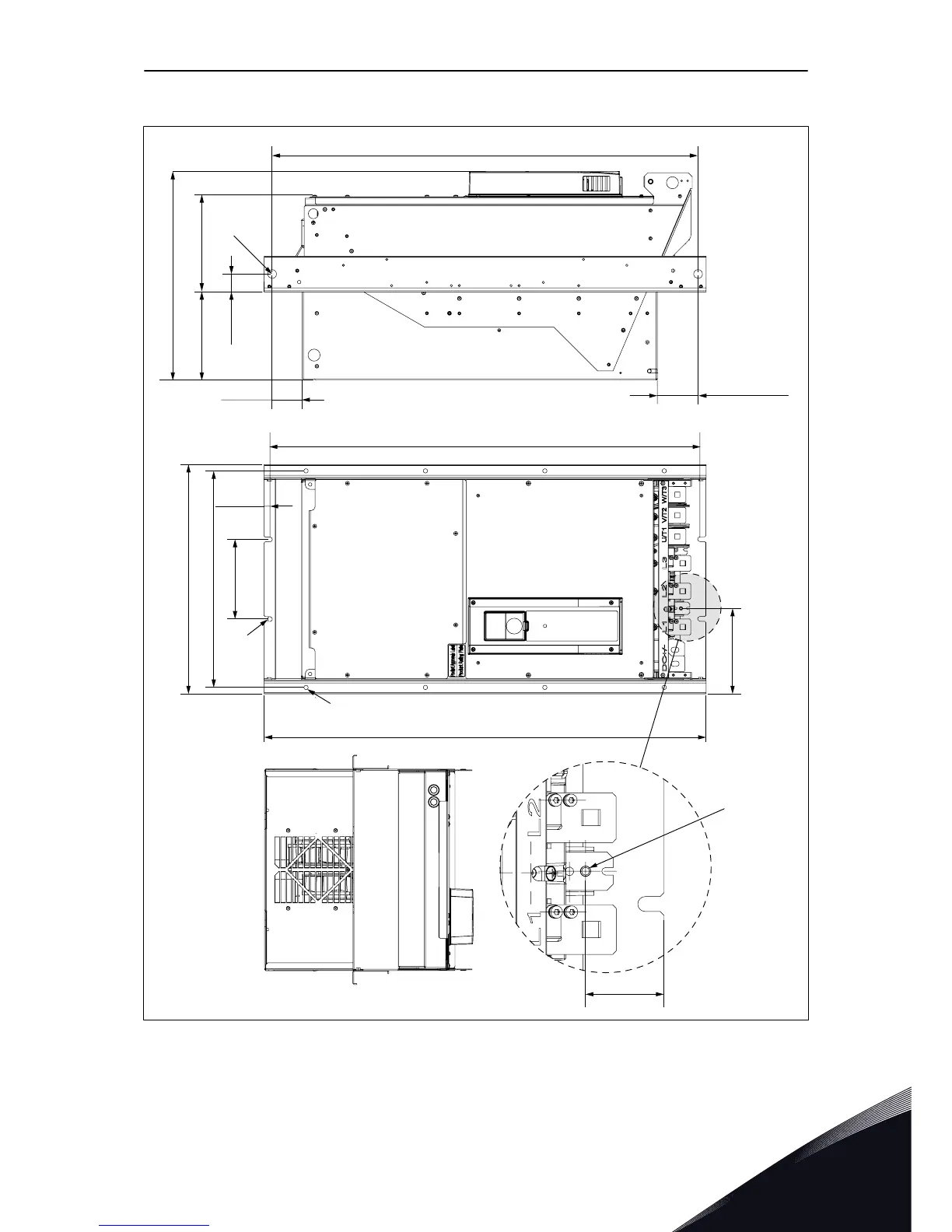

Fig. 9: The dimensions of the AC drive, flange mounting, MR10 [mm (in)]
