Vertiv™ NetSure™ 5100 Series -48 VDC Power System Installation Manual
Proprietary and Confidential © 2023 Vertiv Group Corp.
135

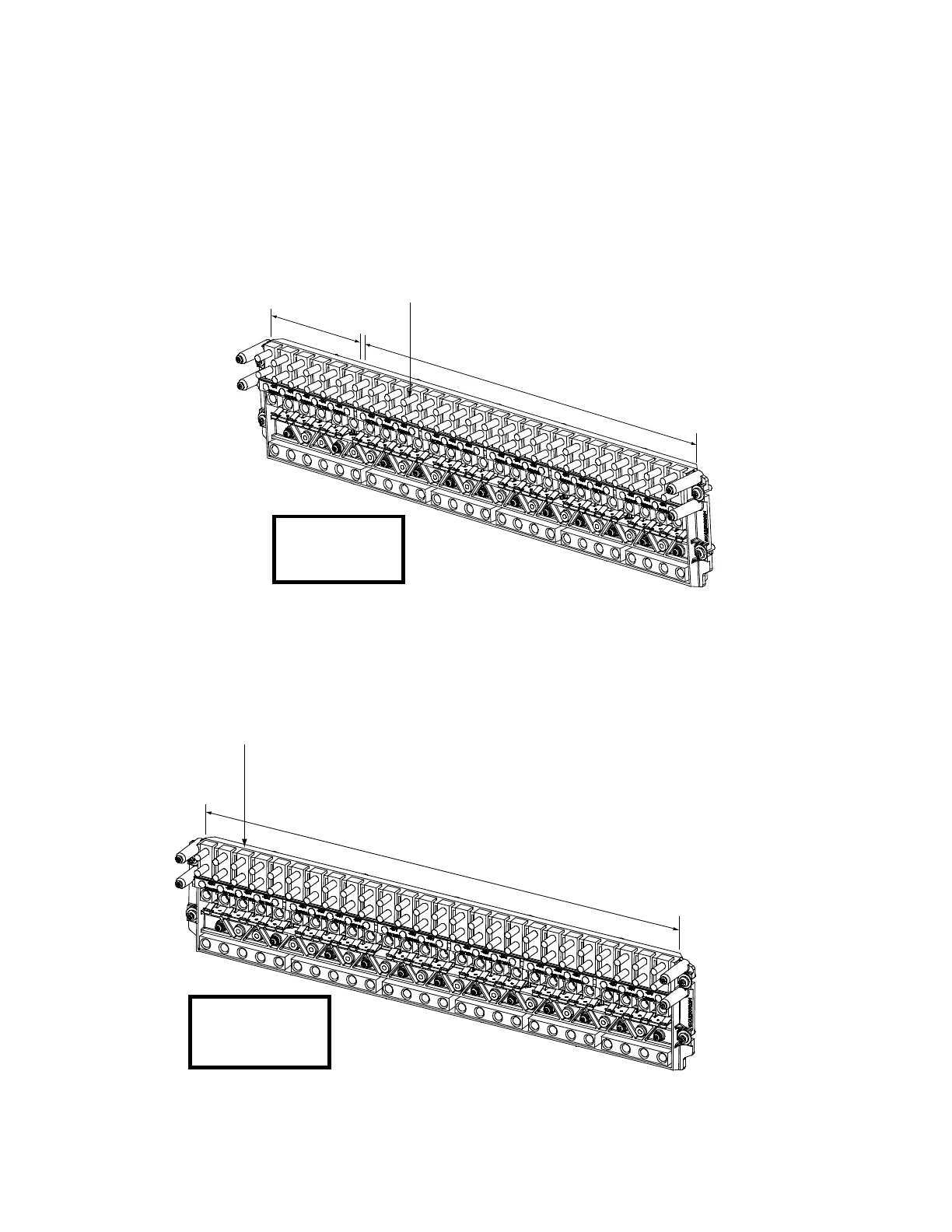

Figure 5.57 List FE Load Connections in a List 26 Distribution Cabinet
(6) -48 VDC Load Bullet/TPS/TLS Circuit Breaker/Fuse Positions and
(20) -58 VDC Load Bullet/TPS/TLS Circuit Breaker/Fuse Positions
Figure 5.58 List FF Load Connections in a List 26 Distribution Cabinet
(26) -58 VDC Load Bullet/TPS/TLS Circuit Breaker/Fuse Positions
Observe proper
polarity when making
load connections.
WARNING!
See SAG582137100 for temperature, sizing, and spacing restrictions.
1/4-20 Studs on 5/8” Centers
(Customer must supply or order hardware)
Maximum Lug Width: 0.625 inches.
Busbar Hardware:
1/4-20 Hex Nut
1/4" Lock Washer
1/4" Flat Washer
Recommended Torque: 75 in-lbs.
Load Connections
-48 VDC Distribution
-58 VDC Distribution
-58 VDC Distribution
Load Connections
1/4-20 Studs on 5/8” Centers
(Customer must supply or order hardware)
Maximum Lug Width: 0.625 inches.
B
usbar Hardware:
1/4-20 Hex Nut
1/4" Lock Washer
1/4" Flat Washer
Recommended Torque: 75 in-lbs.
Observe proper
polarity when making
load connections.
WARNING!
See SAG582137100 for temperature, sizing, and spacing restrictions.
