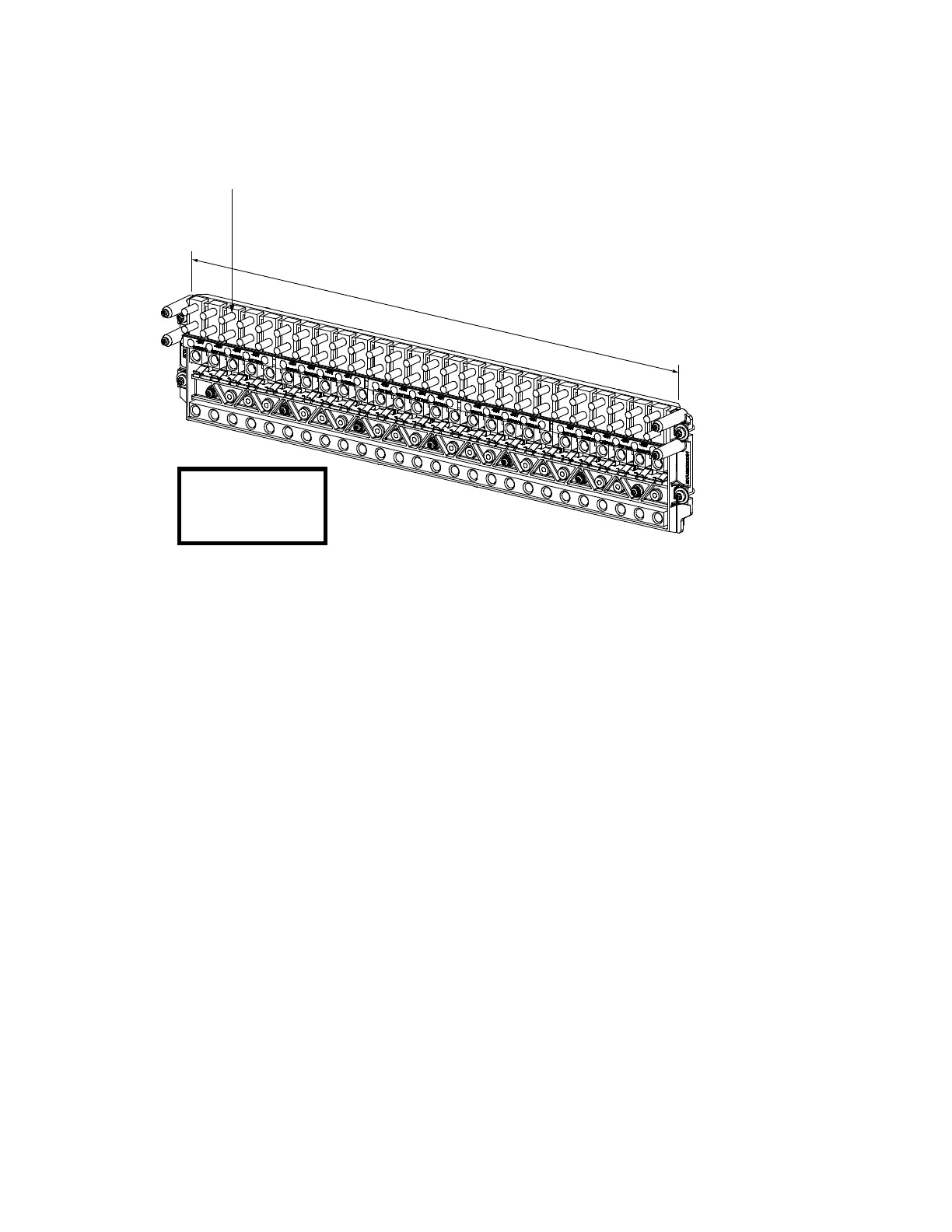

Figure 5.59 List GB Load Connections in a List 26 Distribution Cabinet
(26) -58 VDC Load Bullet/TPS/TLS Circuit Breaker/Fuse Positions
-58 VDC Distribution
Load Connections
1/4-20 Studs on 5/8” Centers
(Customer must supply or order hardware)
Maximum Lug Width: 0.625 inches.
Busbar Hardware:
1/4-20 Hex Nut
1/4" Lock Washer
1/4" Flat Washer
Recommended Torque: 75 in-lbs.
Observe proper
polarity when making
load connections.
WARNING!
See SAG582137100 for temperature, sizing, and spacing restrictions.
Note: List GB panel is installed in the bottom row of List 26.
