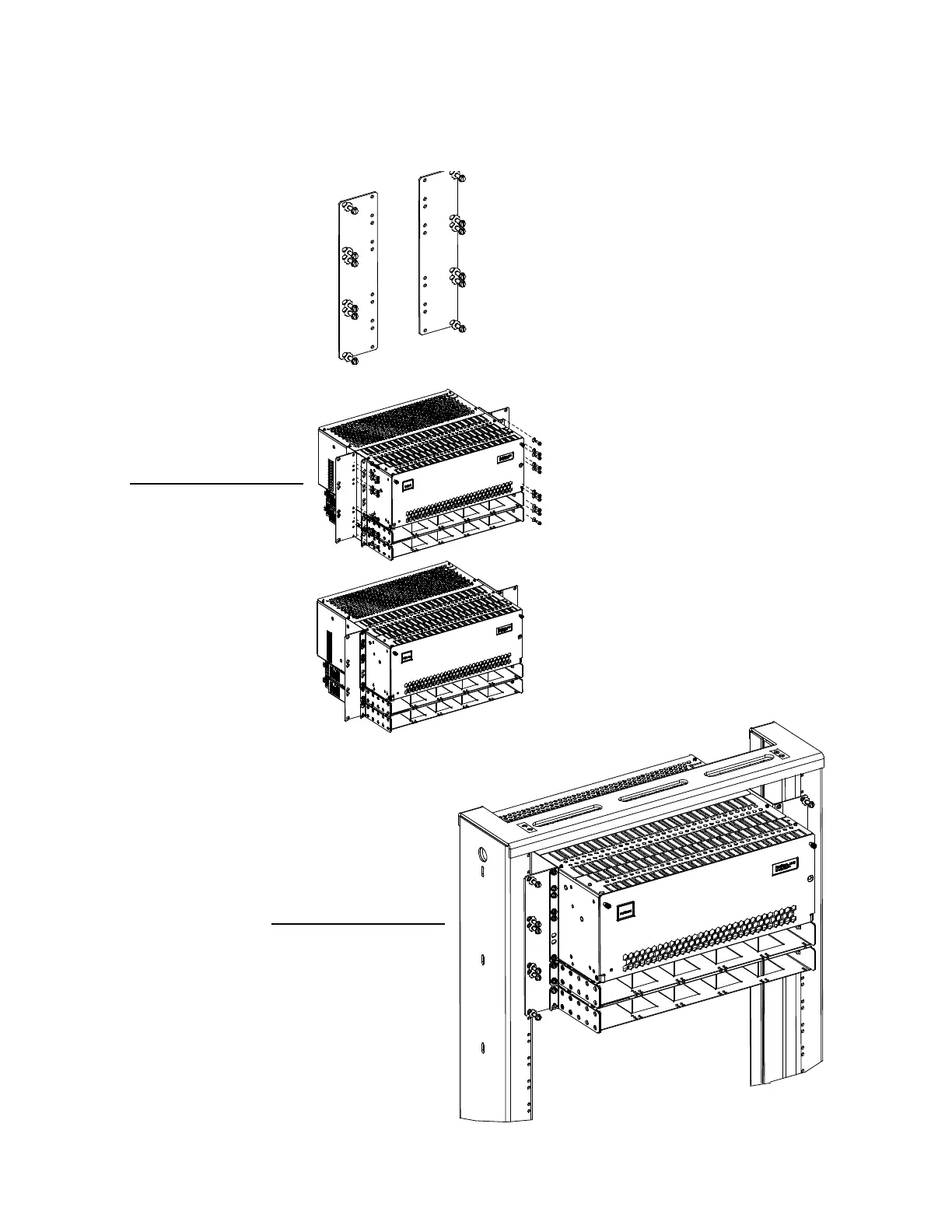

Figure 3.7 Mounting the Distribution Cabinet with Module Mounting Assembly Using 19” to 23” Wide Relay Rack Mounting
Bracket Kit P/N 553630
P/N 553630
19” to 23” Wide
Relay Rack Mounting
Bracket Kit
Install P/N 553630
Mounting Bracket Kit
to 6RU Power System
Install 6RU Power System
(with bracket kit) to
23” Wide Relay Rack
Bracket Kit
Installed View
MOUNTING HARDWARE
12-24 x 3/4" Thread
Forming Hex Head Screw
No. 10/12 Ground Washer
Torque: 65 in-lbs.
MOUNTING HARDWARE
12-24 x 3/4" Thread
Forming Hex Head Screw
No. 10/12 Ground Washer
Torque: 65 in-lbs.
Front
