Maintenance
Drive unit/diesel engine
138
BA RD40_RD45 en 00
Switch off diesel engine and remove ignition key.
Allow machine to cool down less than 30 °C (86 °F).
Fold up the clips [1].
Remove dust collection container [2].
Clean the inside of the dust collectors.
Pull out the air filter cartridge [3].
Insert a new air filter cartridge.
Put on the dust receiver bin [2].
Snap shut the clips [1].
Check the operating readiness of the air filter.

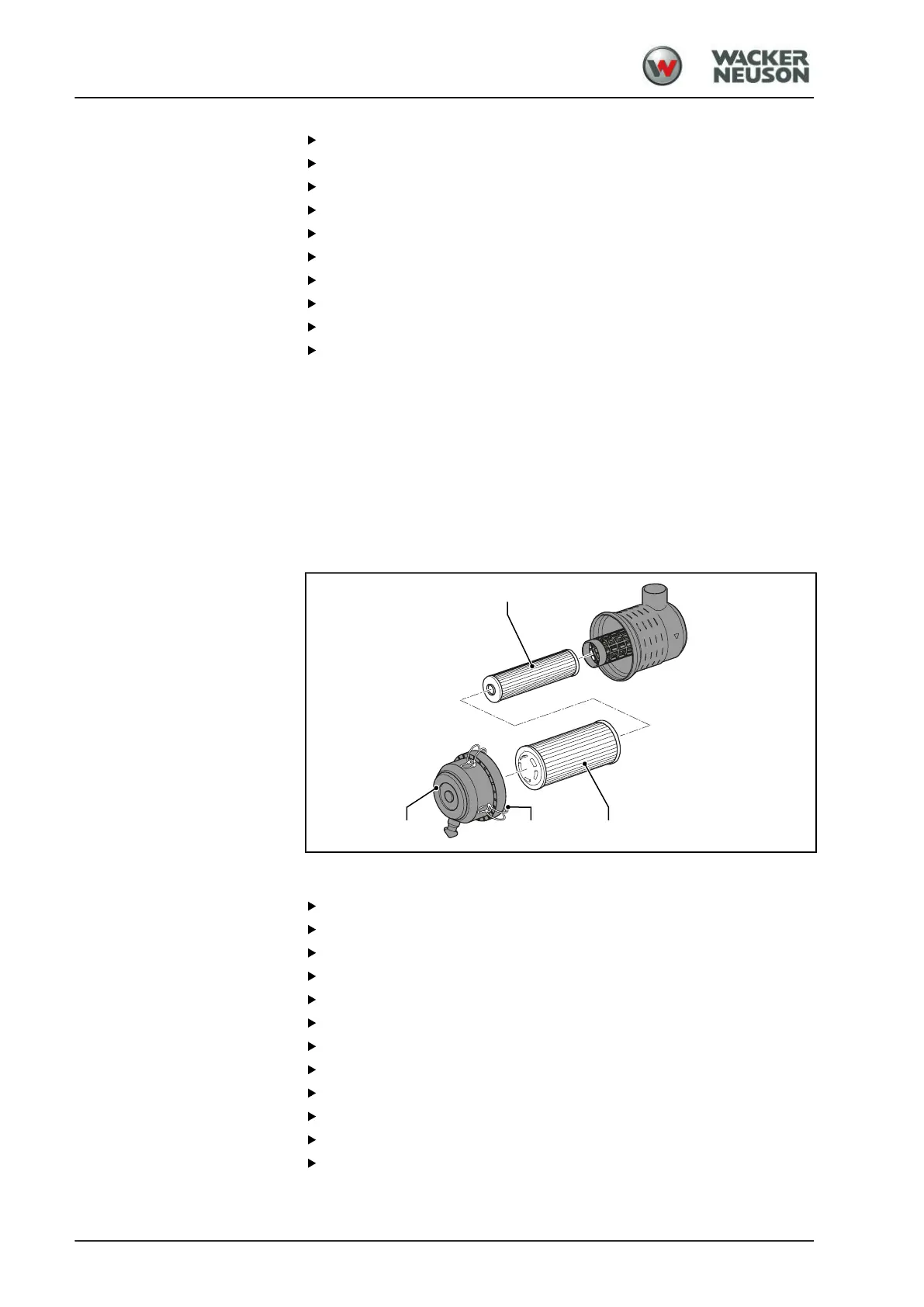

4.03.10 Replacing the safety cartridge at the air filter
Replace the safety cartridge:
■
after having changed the air filter cartridge five times.
■
After 2000 operating hours at the latest.
■
If the air filter pilot light is flashing on the information display after
having replaced the air filter cartridge.
■
If the air filter cartridge is defective.
Changing safety cartridge
Switch off diesel engine and remove ignition key.
Allow machine to cool down less than 30 °C (86 °F).
Fold up the clips [1].
Remove dust container [2].
Clean the inside of the dust container.
Pull the air filter cartridge [3] out of the air filter.
Pull out safety filter cartridge [4].
Slide in a new safety cartridge.
Slide a new air filter cartridge [3] into the air filter.
Put on the dust receiver bin [2].
Snap shut the clips [1].
Check the operating readiness of the air filter.
