Wacker Neuson RD40 User Manual

Auxiliary equipment
Edge pressing and cutting device (KAG)
212
BA RD40_RD45 en 00

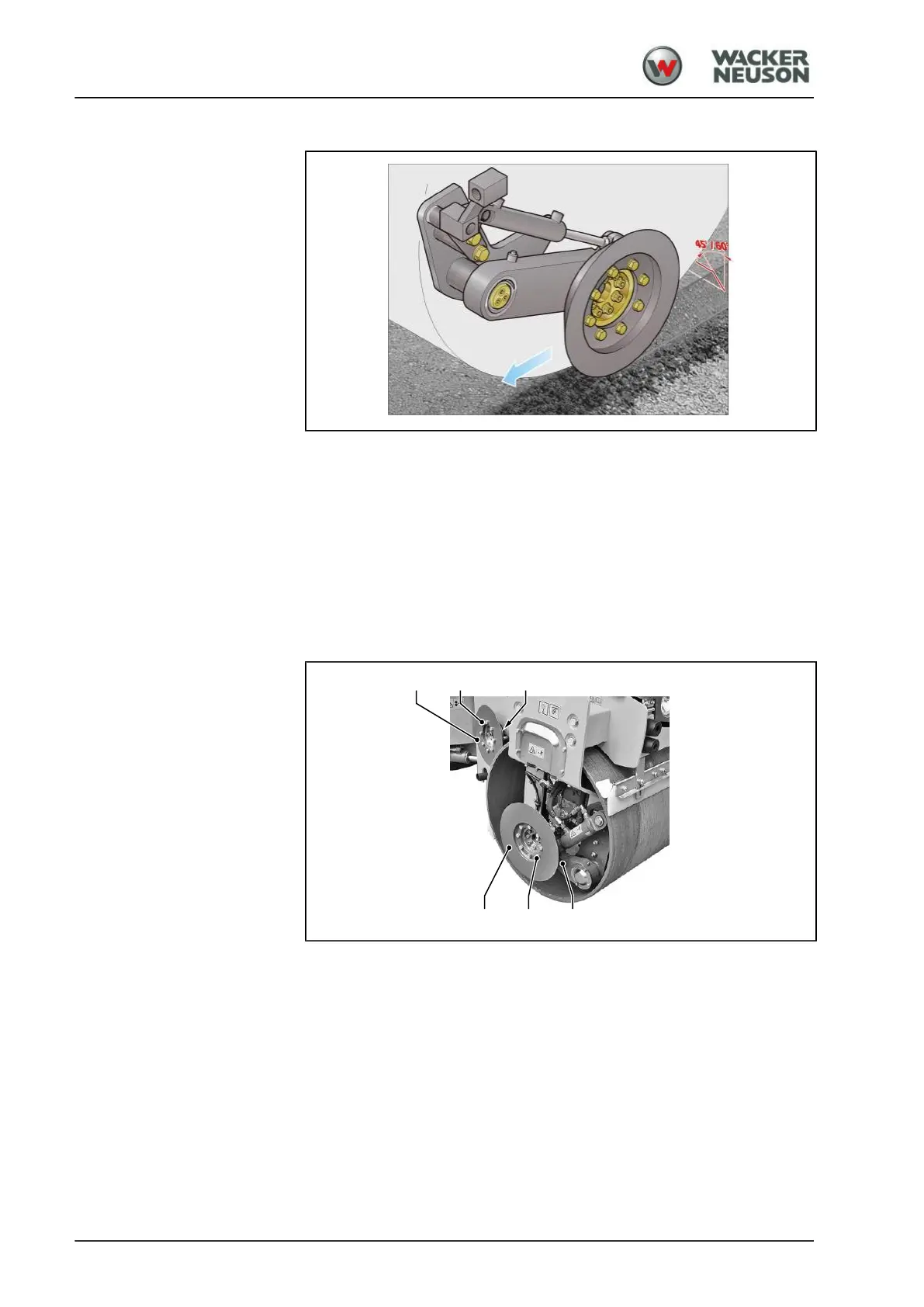

Pressure roller
Conical pressing rolls chamfer the edges of asphalt surfaces. The
pressing rolls can be changed to match different layer thicknesses and
produce different chamferings.
Track indicator (option)
With the aid of the track indicator, the driver can align the tire track with a
previously marked working line.
6.06.03 Mounting/Dismounting tools
Overview
3
1
1 4 2
4
[1] KAG tools [2] Lever arm with flange
[3] Support with flange [4] Screws M10x30 (8 pcs.)
The tools [1] for the edge pressing and cutting device are attached to the
flange at the lever arm [2].
Tools not used at the moment are attached at the flange of the holder
[3] at the vehicle frame.
