Maintenance
Transmission
BA RD40_RD45 en 00
149
To install a new scraper, be sure to place the screws for the
clamp connection into the lowest positions of the elongated
holes.
3 1 2 2

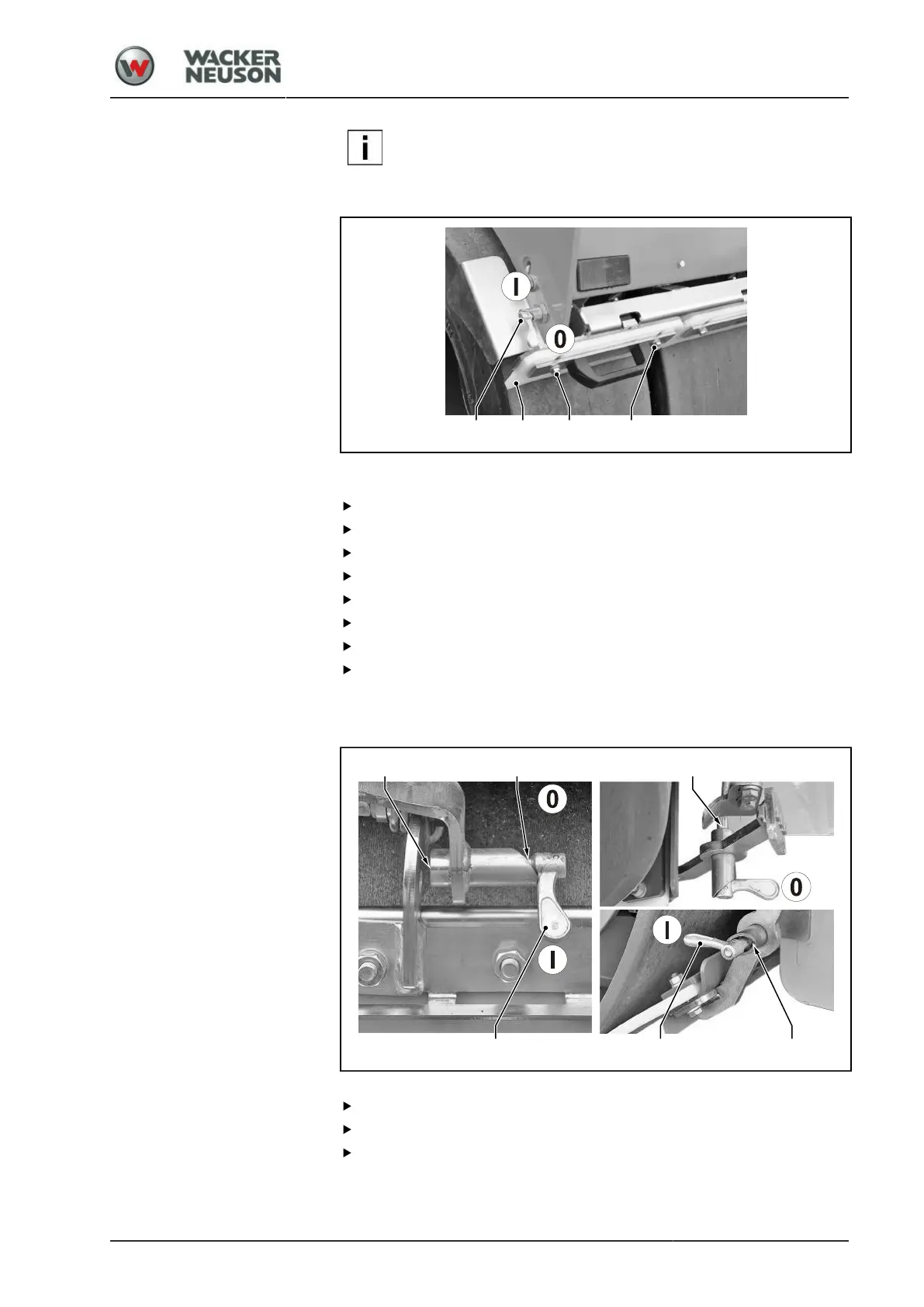

Readjusting/replacing scrapers
Switch off diesel engine and remove ignition key.
Turn stop lever [3] to 0 position.
Move the scraper [1] away.
Loosen clamp connection [2] (2 ×).
Replace the scraper [1] by a new one if necessary.
Push scraper [1] to the tyres.
Establish a clearance of 10 mm between the tyres and the scrapers.
Tighten clamp connection [2].
4.06.05 Lubricate the scraper stop lever
2
2
1
1
2
2
Switch off diesel engine and remove ignition key.
Clean off dirt adhering to the catch.
Turn stop lever [1] to I position.
