Adjusting the working and rear-view mirrors
BA RD40_RD45 en 00
71
3.07 Adjusting the working and rear-view mirrors
The operation and rear-view mirrors are an option.
They can be installed either on one side or on both sides.
For versions with the ROPS cab, the working and rear-view
mirrors are supplied as standard. There is also inside mirror
within the cab.
3 12
1

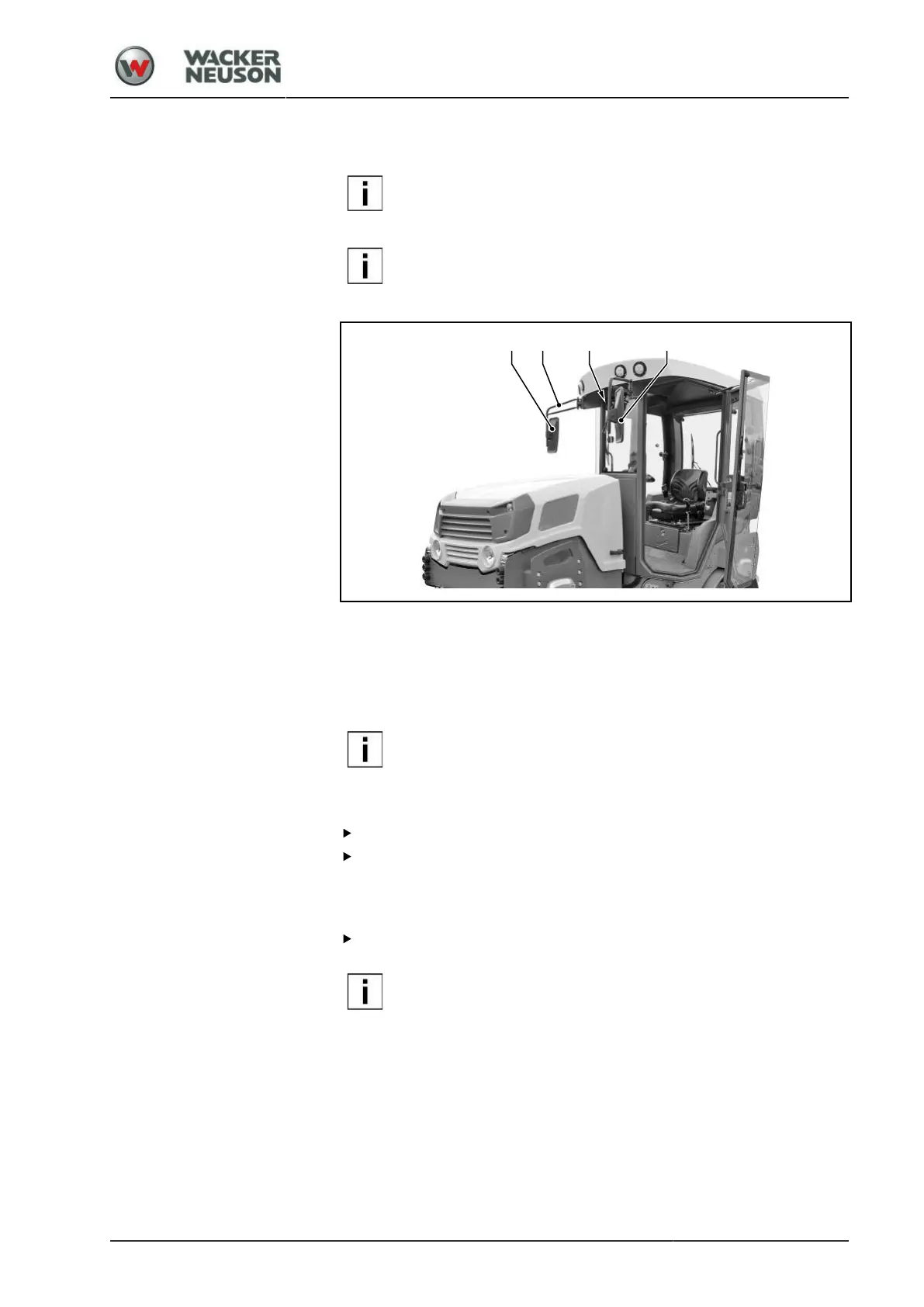

[1] Rear-view mirror [2] Mirror mount
[3] Inside mirror
Always adjust the mirrors so that you can observe the traffic behind the
machine.
Clean mirrors at regular intervals.
Replace defective mirrors immediately.
Adjusting the working and rear-view mirrors
Align the mirrors [1] with the working edge of the drum/tyres.
Adjust the mirrors [1] so as to ensure that you still see the machine at
the inside of the mirrors. This is the only way of avoiding a blind spot.
Folding in the working and rear-view mirrors
Turn the mirror mount [2] forwards.
Fold in and lock the operation mirror before transporting the
machine on a lorry.
