Wacker Neuson RD40 User Manual

Tables
Fuses
BA RD40_RD45 en 00
185
5.03 Fuses
WARNING
Fire in the machine electrical system!
Serious injuries or death or material damage as a result of fire caused by using fuses not meeting
specifications.
■
Only use fuses specified by the manufacturer (not fuses with a higher amperage).
■
Do not bridge fuses.
The fuse assignment indicates a fully equipped machine. Depending on the machine
configuration (special attachments), slots are correspondingly free or occupied by fuses.
Please follow the fuse assignment shown on the adhesive label in the engine compartment.

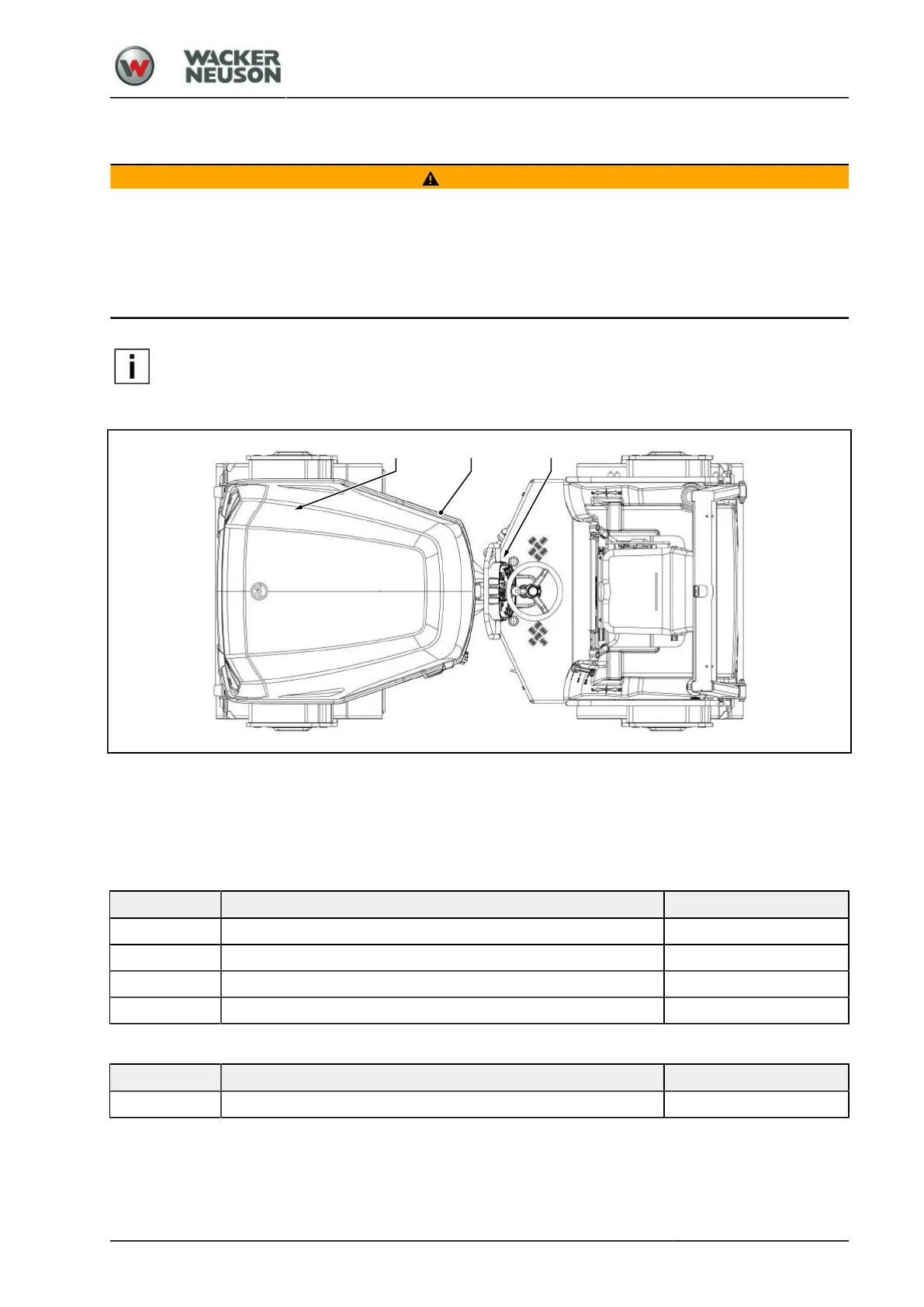

341, 2
[1] Main fuses [2] Battery isolator switch
[3] Central electrical system/option 1 [4] Central electrical system/option 2
5.03.01 Engine compartment
[1] Main fuses
Component Fuse assignment Fuse
F01.1 Alternator B+ 100 A
F01.2 Cold starting device 80 A
F01.3 On-board power supply (terminal 30) 80 A
F01.4 Not assigned
[2] Battery isolation switch
Component Fuse assignment Fuse
F200 Battery isolating switch 7.5 A
