Control stand
BA RD40_RD45 en 00
45
2.02.04 Control panel
1
2
3 5 4 6 1 7
8
13 12
10
9
11

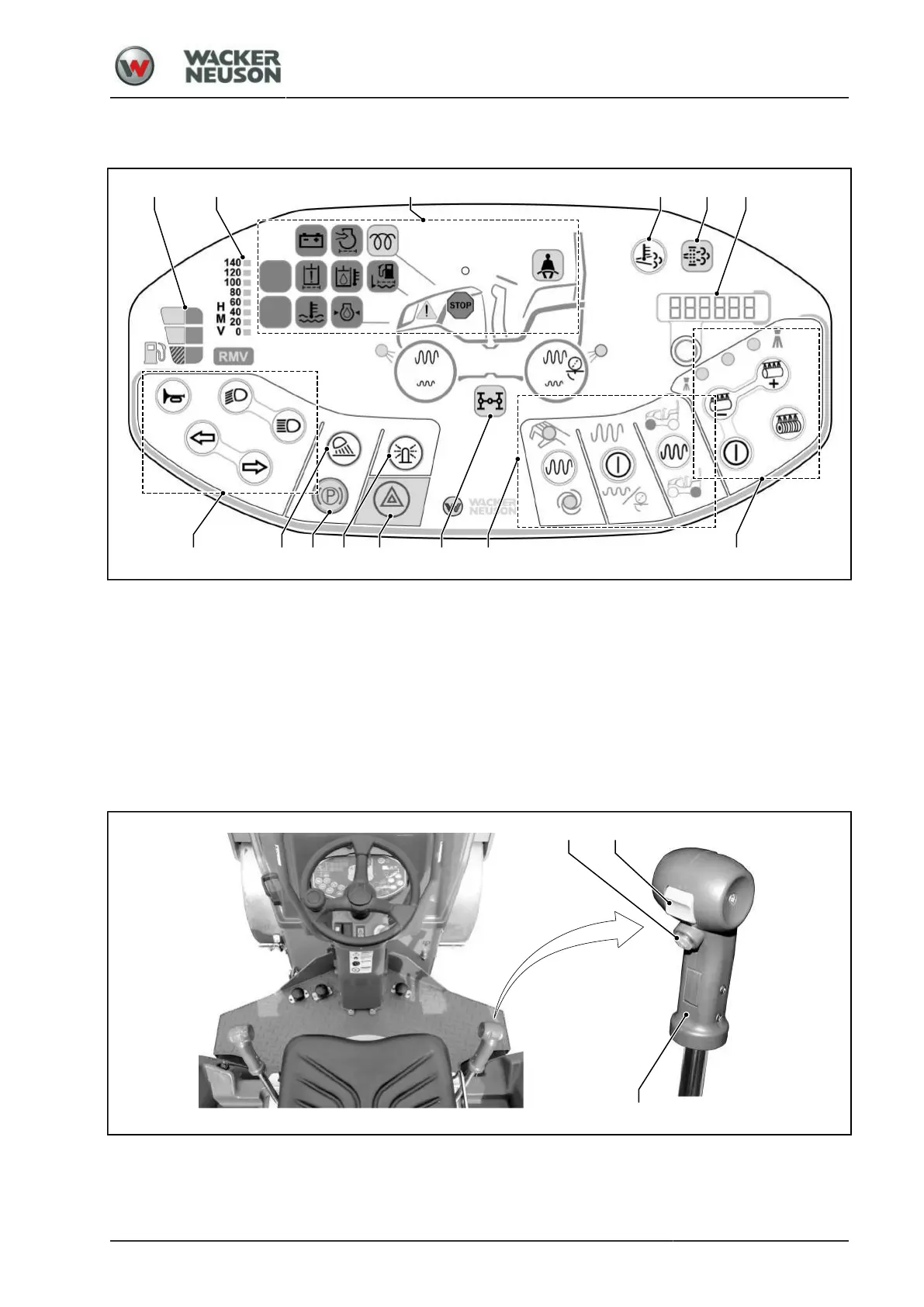

[1] Warning and indicator lights [2] Driving light, turn signals, signal horn
[3] Work light [4] Rotating beacon
[5] Parking brake [6] Hazard warning light
[7] Dynamic compaction system [8] Water sprinkling system control
[9] Fuel fill level indicator [10] Info display for system info/diagnostic codes
[11] Compaction display [12] DPF indicator light
[13] DPF regeneration switch
2.02.05 Drive lever
2
1
3
[1] Drive lever [2] Switch for dynamic compaction system/chip
spreader ON-OFF
[3] KAG lifting/lowering switch
