Operation

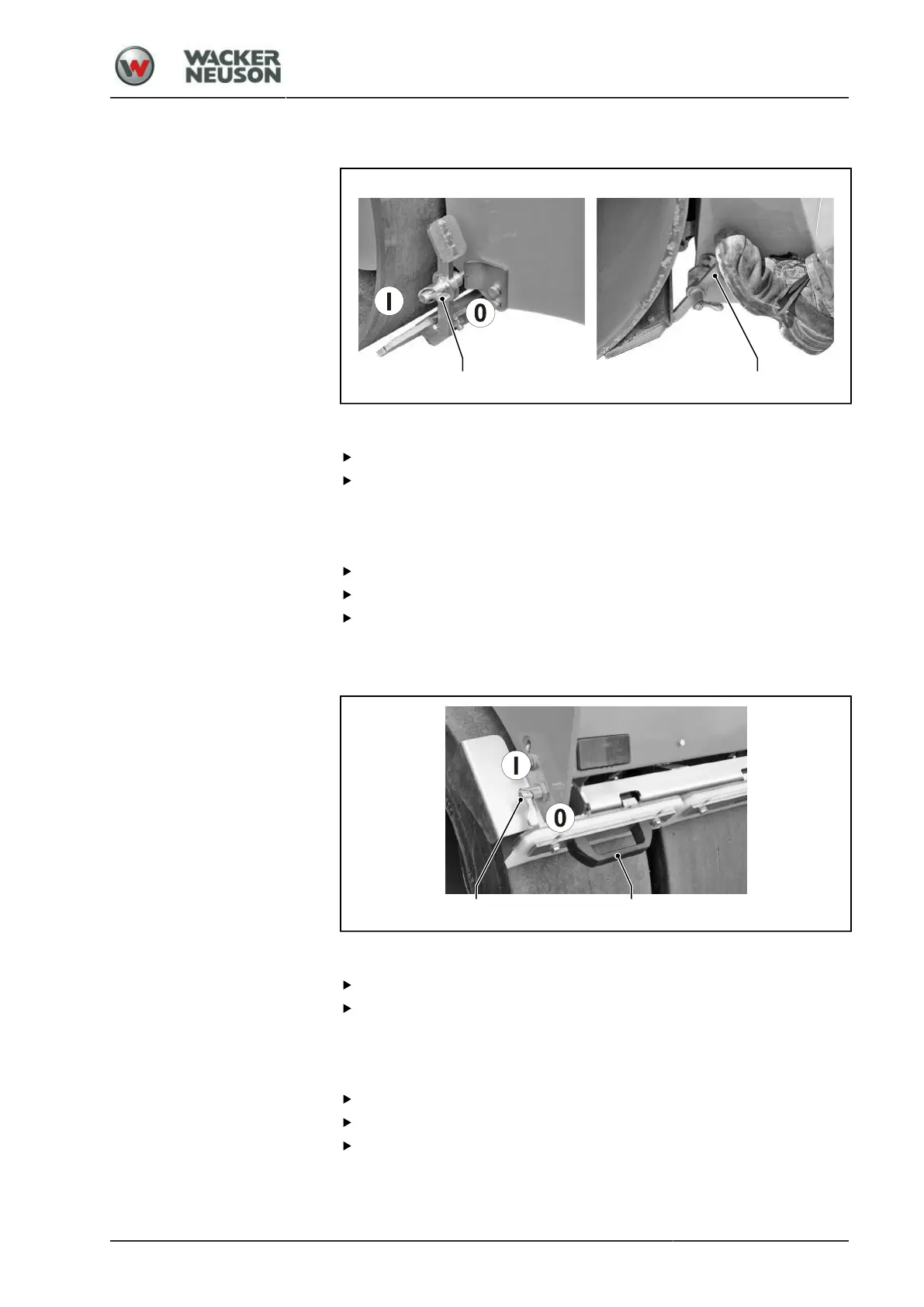

Adjusting scrapers
BA RD40_RD45 en 00
99
3.20.02 Bottom drum scraper
1
2
Attach scraper
Switch off diesel engine and remove ignition key.
Turn stop lever [1] to I position.
a
The scraper folds up to the roller drum.
Moving the scraper away
Switch off diesel engine and remove ignition key.
Turn stop lever [1] to 0 position.
Press the pedal [2] until the catch latches in.
3.20.03 Tyre scraper
1 2
Attach scraper
Switch off diesel engine and remove ignition key.
Turn stop lever [1] to I position.
a
The scraper folds down to the roller drum/tyre.
Moving the scraper away
Switch off diesel engine and remove ignition key.
Turn stop lever [1] to 0 position.
Lift the scraper bracket [2] until the catch latches in.
