Wacker Neuson RD40

Auxiliary equipment
Edge pressing and cutting device (KAG)
216
BA RD40_RD45 en 00
Cleaning sprinkler nozzles
1 2 3
4
Switch off diesel engine and remove ignition key.

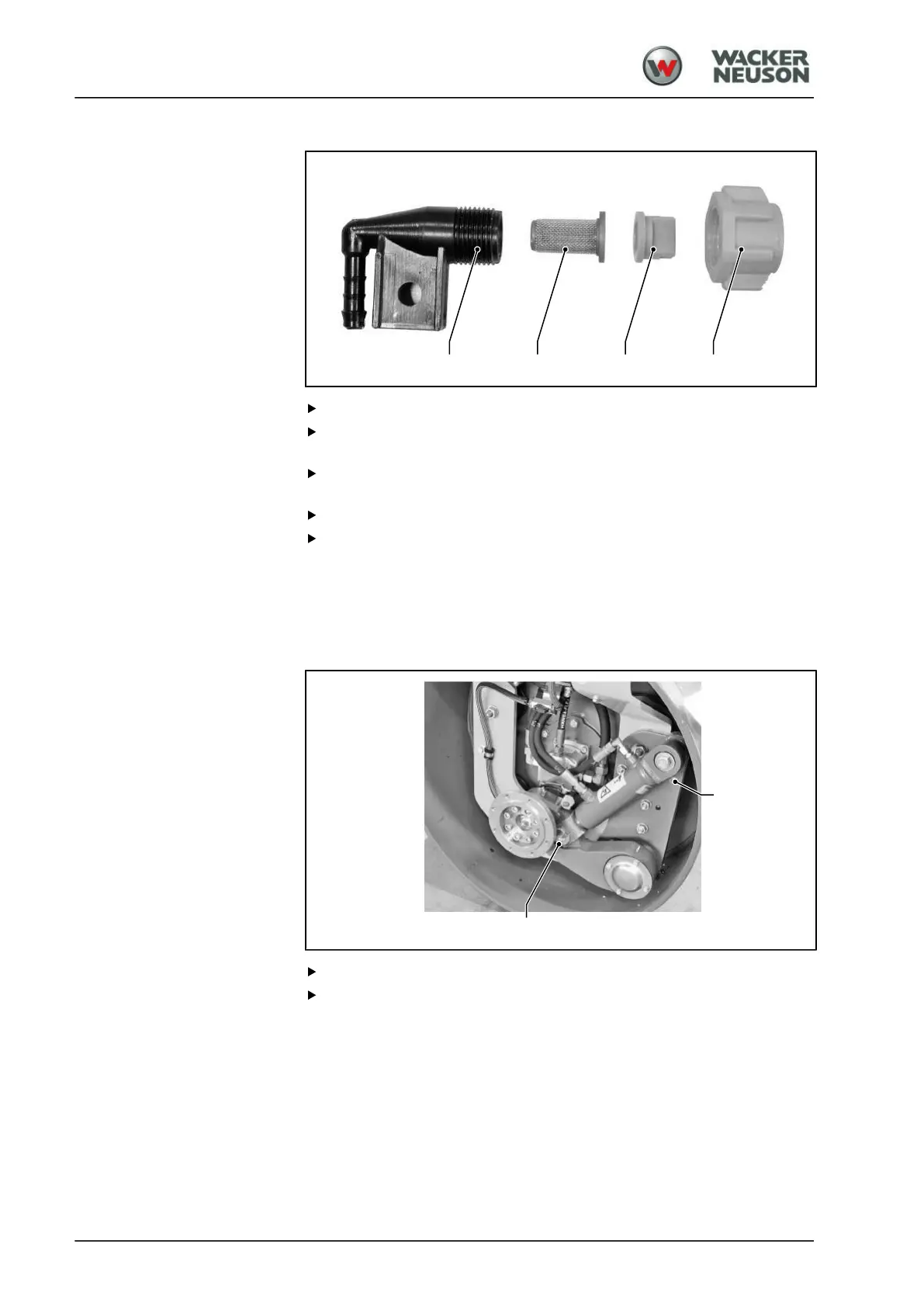

Loosen the cap nut [4] and remove it together with spray nozzle [3]
and filter [2] of casing [1].
Loosen the cap nut [4] and remove it together with spray nozzle [3]
and filter [2] of casing [1].
Flush the pipeline and housing [1] with the water sprinkling system.
Insert spray nozzle [3] and filter [2] in union nut [4] and screw them
onto the casing [1] together.
Lubricating KAG cylinder bolts
" Lubricant only admissible if containing this marking ("Technical data",
page 162 sqq.).
1
1
Switch off diesel engine and remove ignition key.
Lubricate lubrication nipple [1] (2 nipples).
Lubricate the KAG lever bearing
" Lubricant only admissible if containing this marking ("Technical data",
page 162 sqq.).
