Operation
Safety strut
56
BA RD40_RD45 en 00

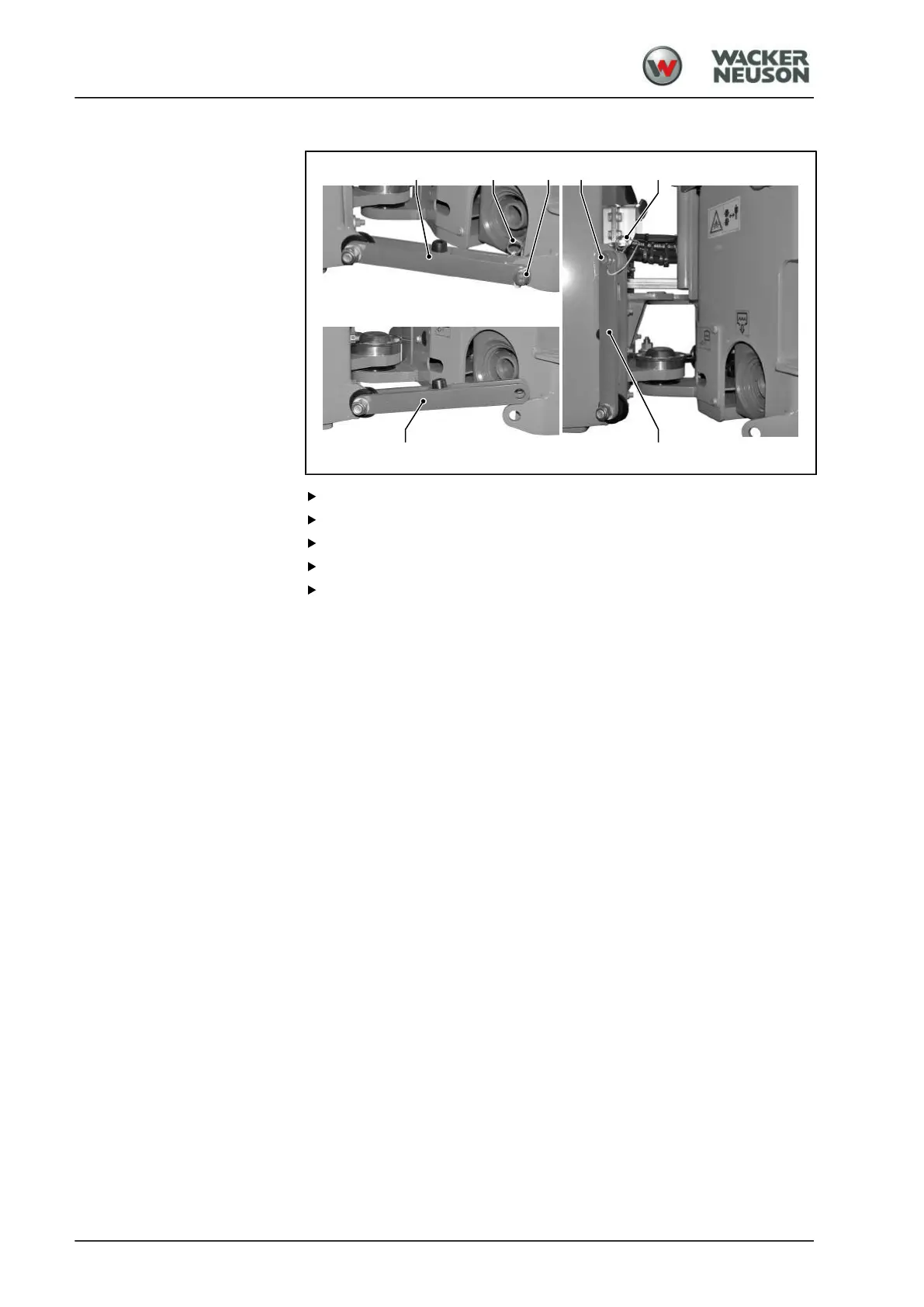

Releasing safety strut
1
3
3
2
1 2
3
Pull the spring cotter pin [1] out of the bolt [2].
Pull out the bolt [2].
Swing the coupling bar [3] upwards and press it down.
Use the bolt [2] to lock the coupling bar [3] in place.
Slide the spring cotter pin [1] into the bolt [2].
a
The safety strut is released.
