5-40 Maintenance Procedures
5. Using the combined 2.5-mm Allen wrench and cone extraction tool,
loosen the 2 captive screws that secure the ion block cover plate.
6. Remove the ion block cover plate.
7. Grasp the isolation valve and pull it out of the ion block.

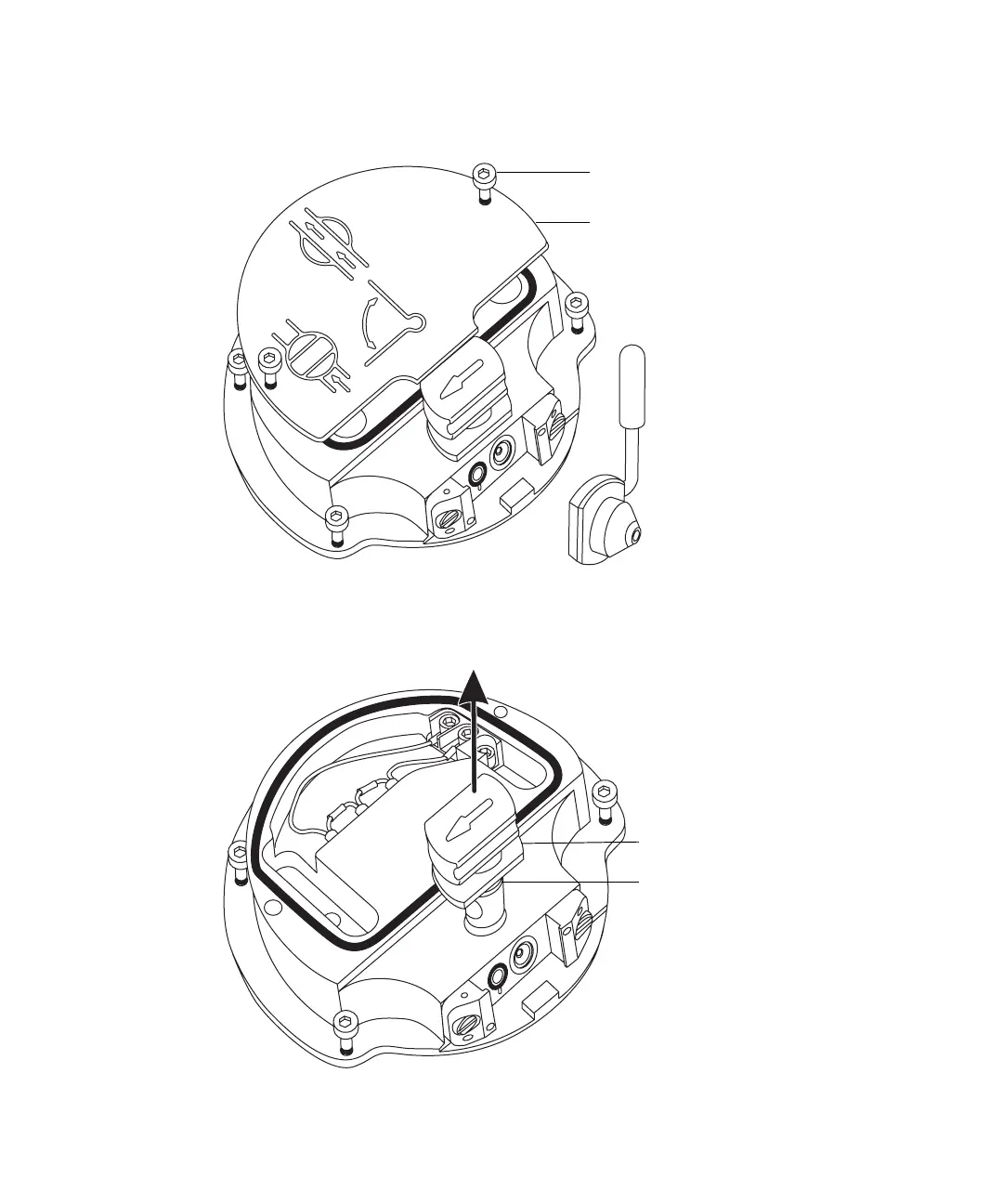

Ion block cover plate securing screw
Ion block cover plate
Isolation valve
O-ring
To Next Page
