Replacing the ESI probe sample capillary 5-63
10. Unscrew and remove the knurled collar from the UNF coupling.
11. Remove the knurled collar and conductive sleeve from the capillary.
12. Using the 7-mm wrench, loosen the locknut.
Tip: Use the 8-mm wrench to steady the UNF coupling when loosening
the locknut.
13. Unscrew the PEEK union from the UNF coupling (this connection is
finger-tight only).
14. Remove the ferrule and PTFE liner sleeve from the capillary.
15. Remove the capillary from the UNF coupling.
16. Dispose of the capillary, PTFE liner sleeve, and ferrule in accordance
with local environmental regulations.
Warning: The capillary, PTFE liner sleeve, and ferrule can
be contaminated with biohazardous and/or toxic materials.
Dispose of them according to local environmental
regulations.

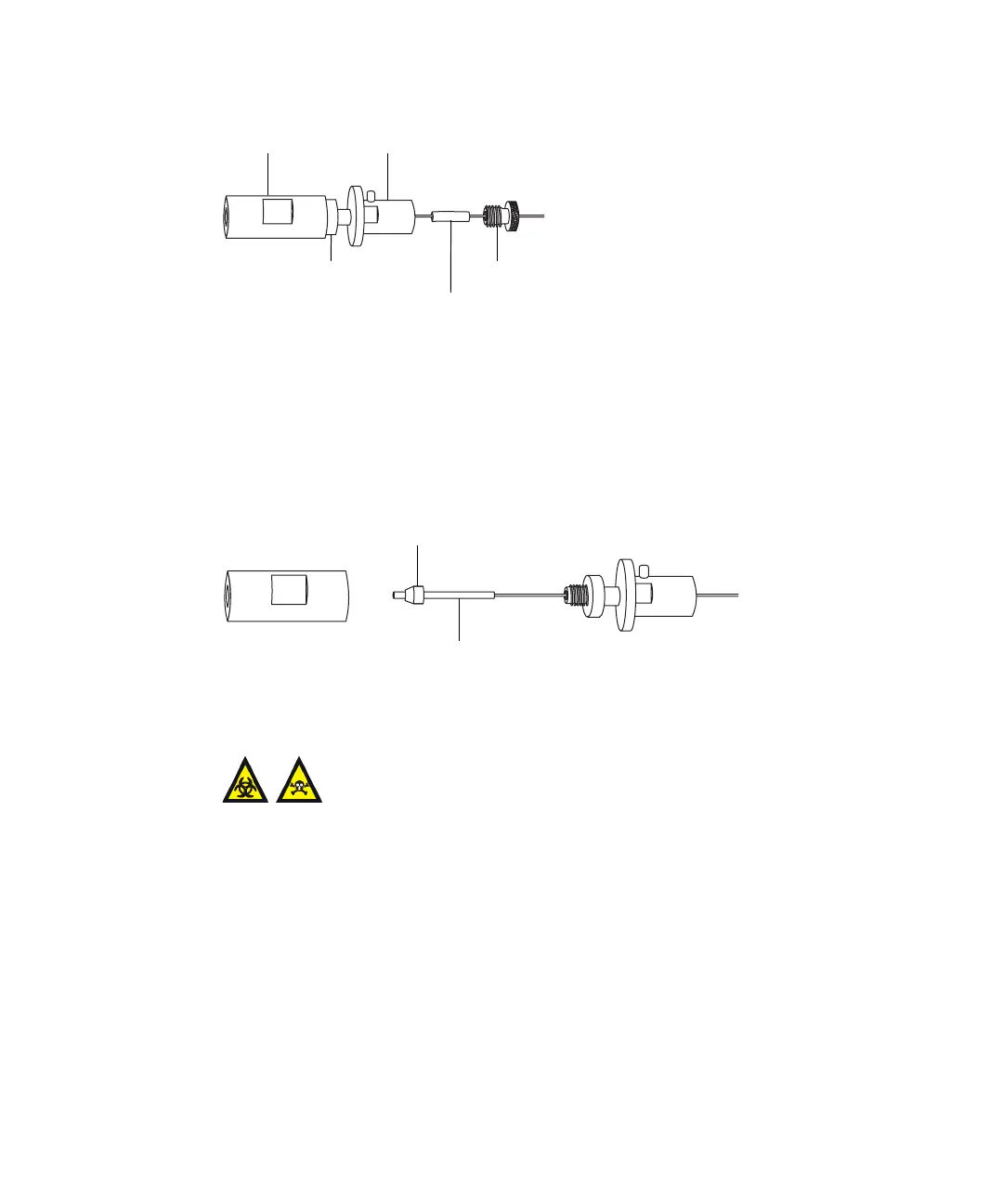

UNF couplingPEEK union
Conductive sleeve
Knurled collar
Locknut
Ferrule
PTFE liner sleeve
