Replacing the APCI probe sample capillary 5-69
3. Using the combined 2.5-mm Allen wrench and cone extraction tool,
remove the 3 probe end cover retaining screws.
4. Remove the end cover and gasket.
5. Unscrew and remove the nebulizer adjuster knob.

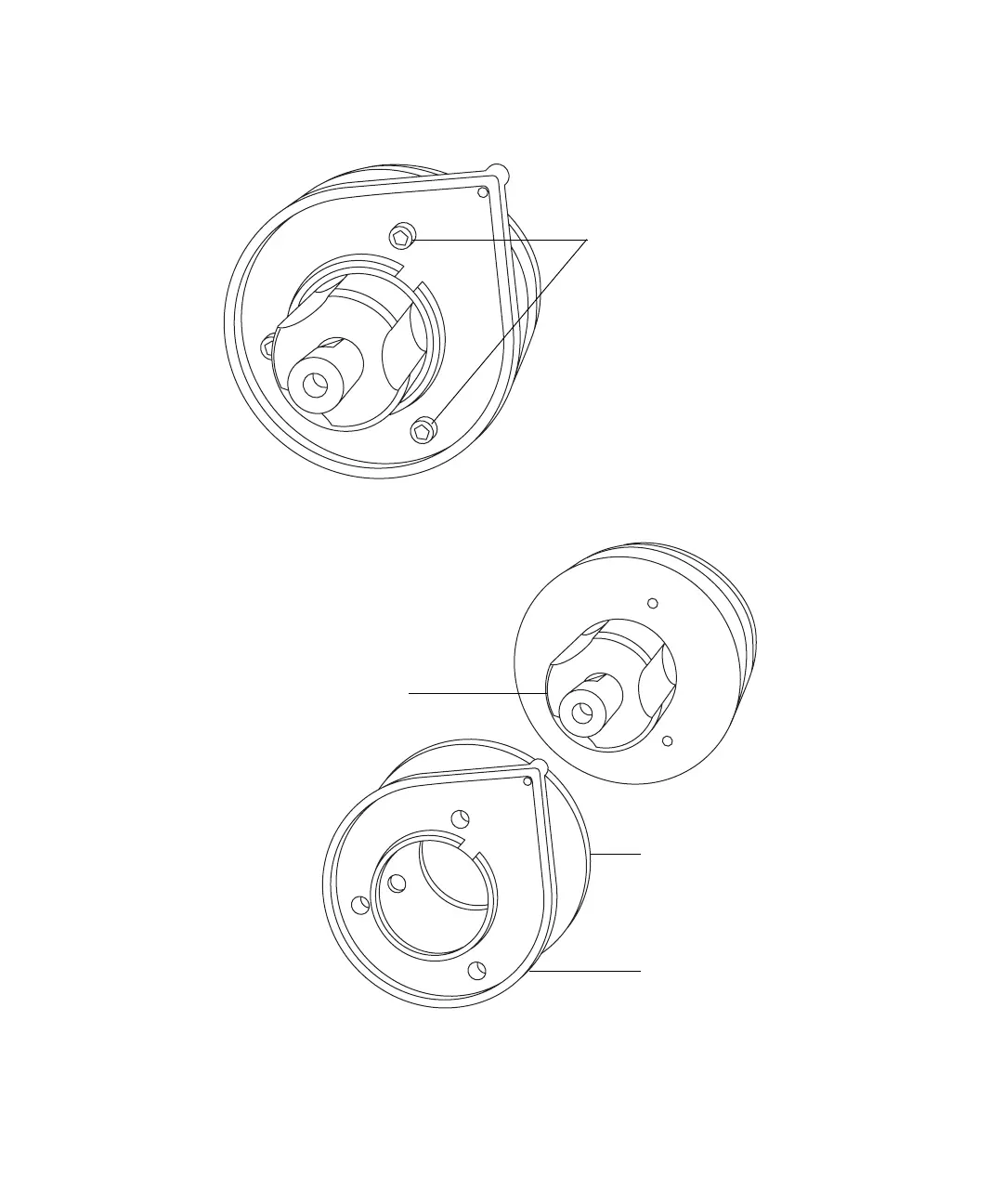

End cover retaining screws
Nebulizer adjuster knob
End cover
Gasket
