5-70 Maintenance Procedures
6. Remove the PEEK union/UNF coupling assembly and capillary from the
probe.
7. Using the 7-mm wrench, loosen the locknut.
8. Unscrew the PEEK union from the UNF coupling (this connection is
finger-tight only).
9. Remove the ferrule from the capillary.
10. Remove the capillary from the UNF coupling.
11. Dispose of the capillary and ferrule in accordance with local
environmental regulations.
Warning: The capillary and ferrule can be contaminated
with biohazardous and/or toxic materials. Dispose of them
according to local environmental regulations.

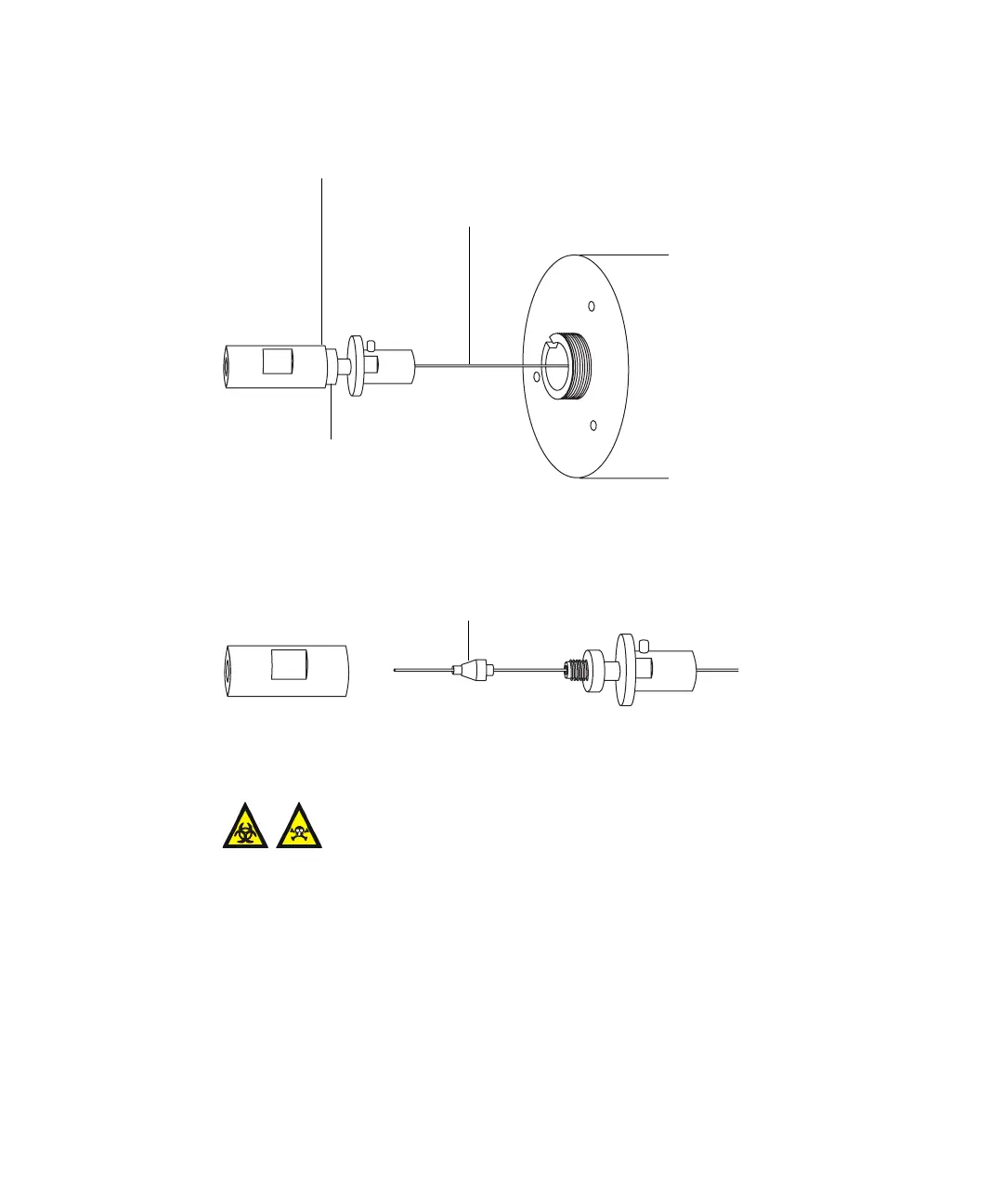

PEEK union/UNF coupling assembly
Capillary
Locknut
Ferrule
