Replacing the IntelliStart Fluidics tubing 5-113

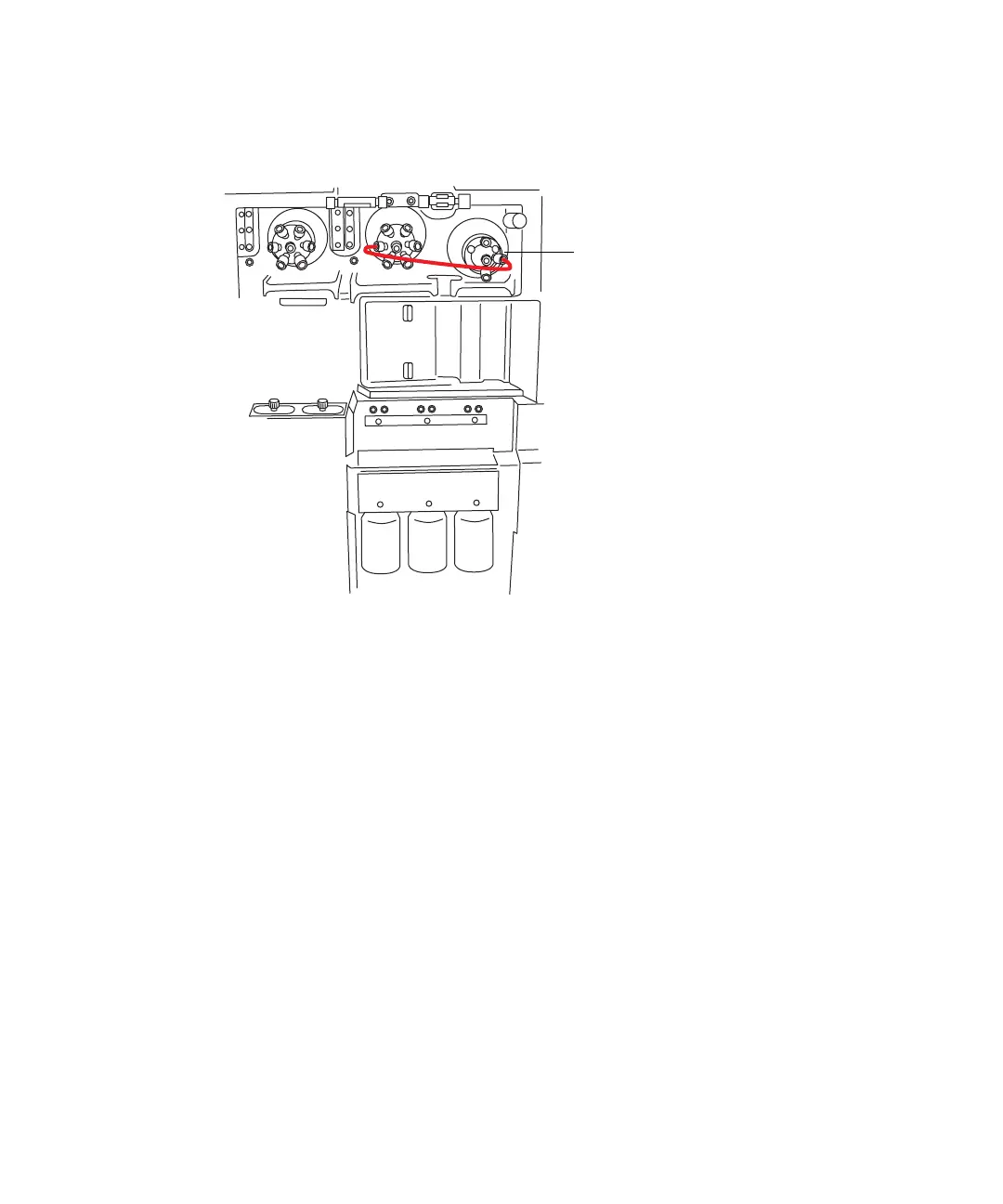

7. Using two long "finger tight" fittings, connect the red, 1/16-inch,
200-mm, PEEK tubing from port 3 of the sample selector valve to port 3
of the divert valve.
8. Using a long "finger tight" fitting, connect 1/16-inch, 1000-mm,
natural-colored PEEK tubing to port 4 of the divert valve, and thread it
securely into the waste port.
Tip: This is the same waste port as used in step 3.
A
B
C
A
B
C
A
B
C
W
aters
A
B
C
Divert valve
