5-114 Maintenance Procedures

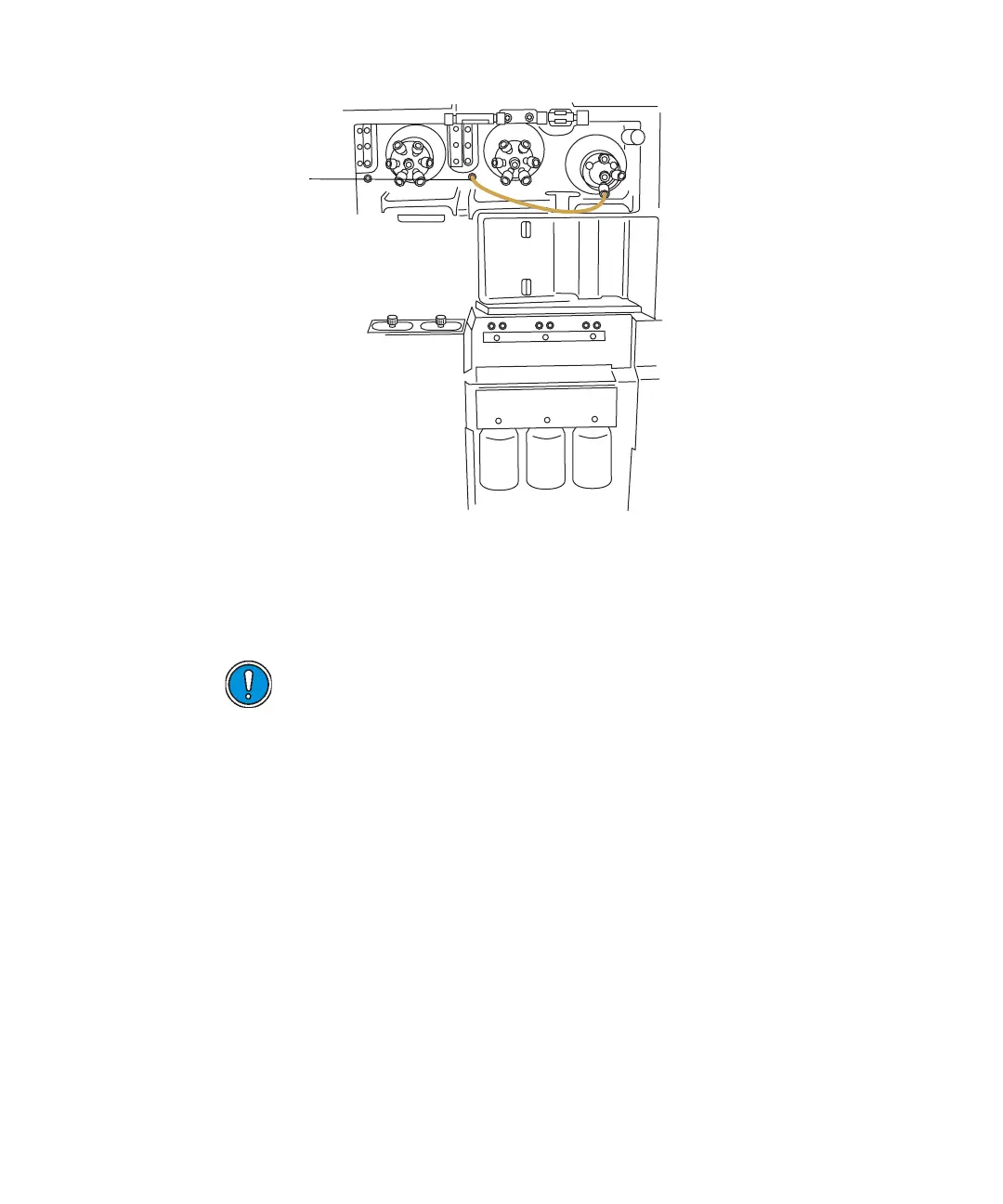

9. Connect port 2 of the sample selector valve to the source probe,
observing the relevant procedure:
• For the ESI probe, see page 3-2.
• For the APCI probe, see page 3-14.
10. Close the access doors to the IntelliStart Fluidics system.
Caution: Ensure that the tubing does not become trapped when
you close the access doors to the IntelliStart Fluidics system.
A
B
C
A
B
C
A
B
C
W
aters
A
B
C
Waste port
