Input/output signal connectors B-19
To make the signal connections
1. Determine the signal connection location from the silk-screened label on
the rear panel of each instrument.
2. Use the small flat-bladed screwdriver to attach the positive and negative
leads of the signal cable to the connector.
3. Slide the clamp (with the bend facing down) into the protective shield.
4. Insert the clamp and shield (with the bend facing down) into the
connection cover, and insert and finger tighten one self-tapping screw.

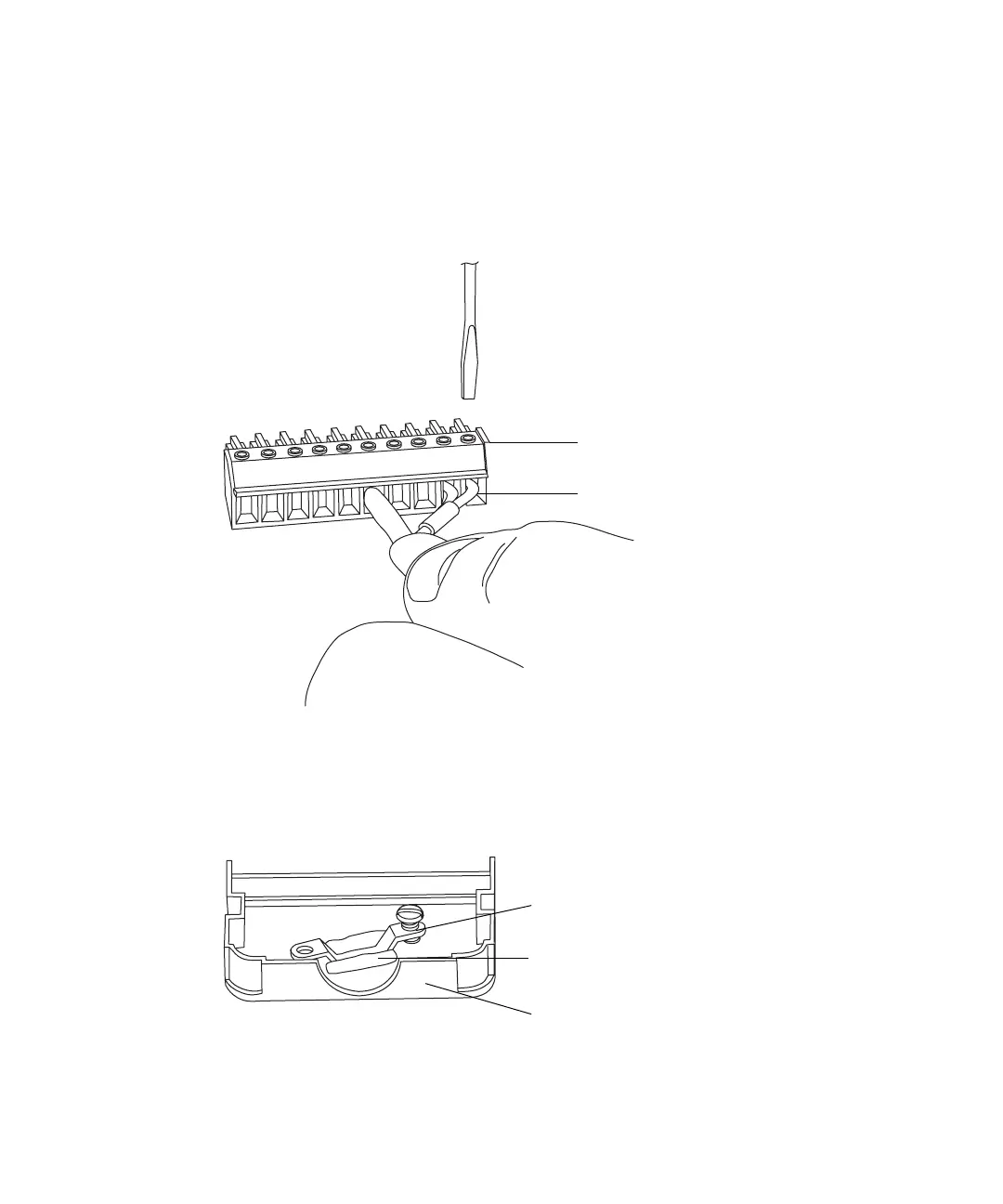

TP02585
Signal cable
Connector
TP02586
Connector cover
Shield
Clamp
