Alignment of side channels 5.4.1
• Align the side channels so that they are parallel and positioned vertically to the
guttering and the wall gap sealing profile. If necessary, shift side channels as shown
in fig. 6.

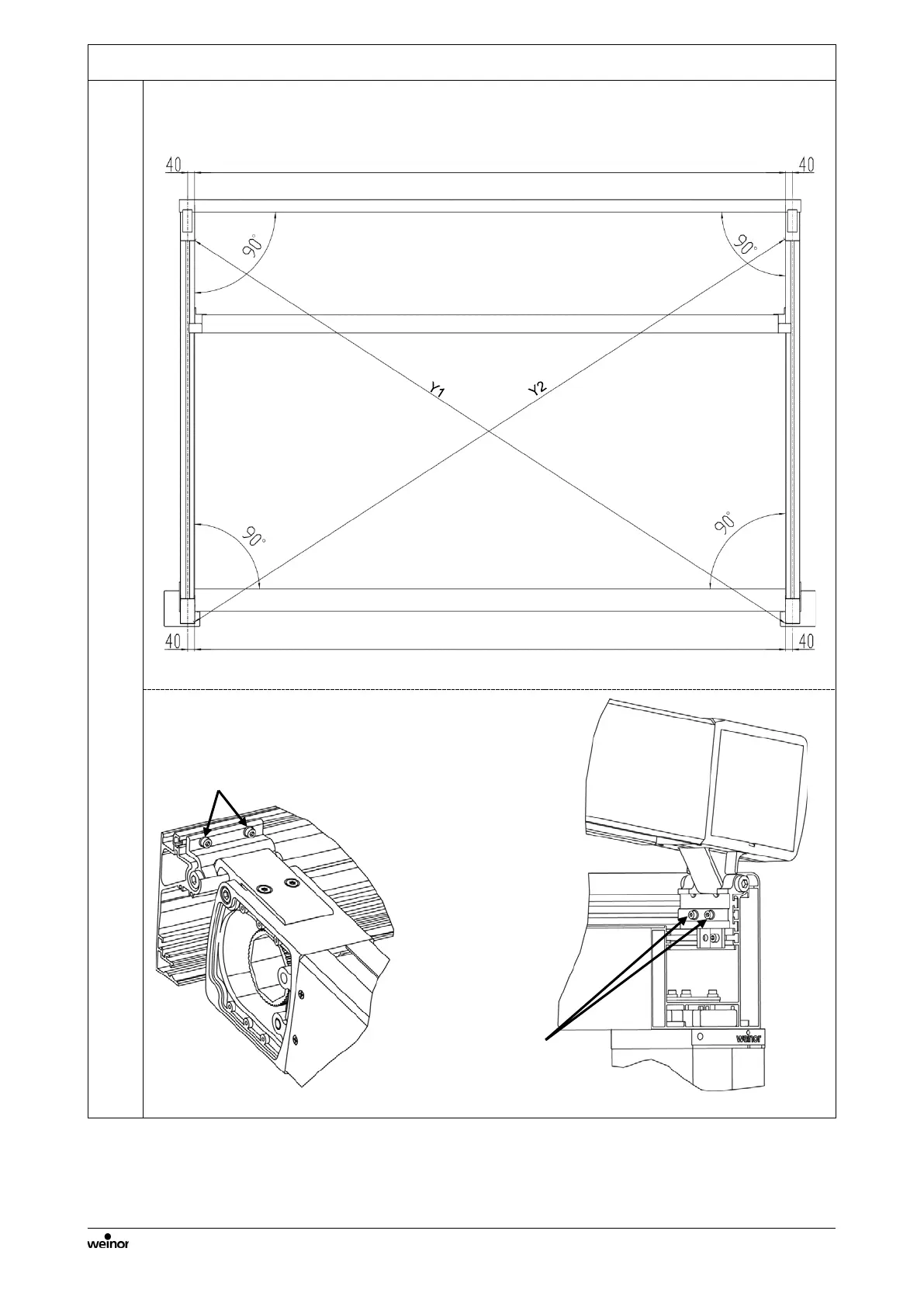

Figure 5: Alignment of weinor PergoTex II
Figure 6: Socket head cap screw M5 to slide the side channel
Slightly loosen the socket
head cap screws M5x16
on the wall gap sealing
profile to be able to slide
the side channel
Slightly loosen the
socket head cap
screws M5x16 on
the guttering to be
able to slide the
side channel
X1
X2
