PergoTex II/ PergoTex II LED
Instructions for assembly
Version 9
05.10.2017
We reserve the right to make technical changes
Item number
118697-0000
Page 45/66

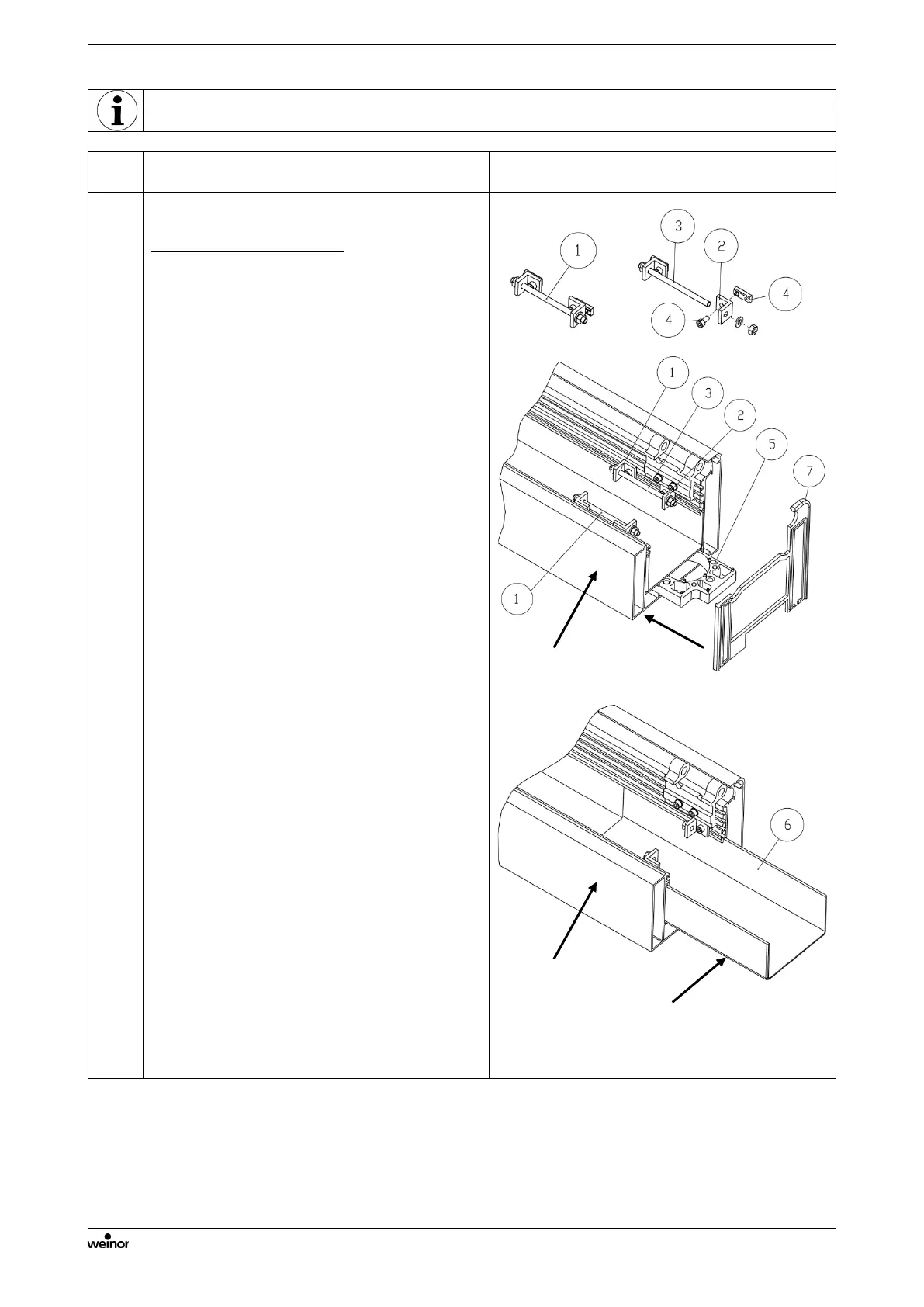

6.2 Gutter coupling
2. An aid such as an assembly trestle is required to elevate the guttering.
3. A post must always be standing under the coupling point.
1.
Determining the length of posts, see
Chapter 5.2.1
2.
Coupling the guttering
Right guttering section:
1. Lay the guttering and unscrew the
bracing in the right part of the guttering
(1), by loosening the outside angle
bracket 20x20x4 mm (2) with holder (3)
and bolting (fixing slider with socket
head cap screw M5x10) (4).
2. Push the outside angle bracket
20x20x4 mm (2) of the bracing (1) into
the left part of the guttering and secure
with the bolting (fixing slider with socket
head cap screw M5x10) (4).
3. Connector plate (5) has been pushed
into the right guttering section and
fixed.
4. "Guttering coupling" (6) has also been
pushed into the right guttering section.
Must be drawn out.
5. Adhere the gutter connector (7) to the
coupling point of the right part of the
guttering with a suitable adhesive/
jointing compound.
6. Apply suitable adhesive/ sealing
compound around the outside of the
"guttering coupling" (6) and push
halfway into the right part of the
guttering again.
7. Elevate the right part of the guttering to
the necessary height using e.g. an
adjustable trestle.
8. Attach "outside post" to the right side of
the construction from below and bolt
(see Chapter 5.2.4).
Apply adhesive/ jointing compound
to the "guttering coupling" from
below
Right guttering section
Right guttering section
