PergoTex II/ PergoTex II LED
Instructions for assembly
Version 9
05.10.2017
We reserve the right to make technical changes
Item number
118697-0000
Page 26/66

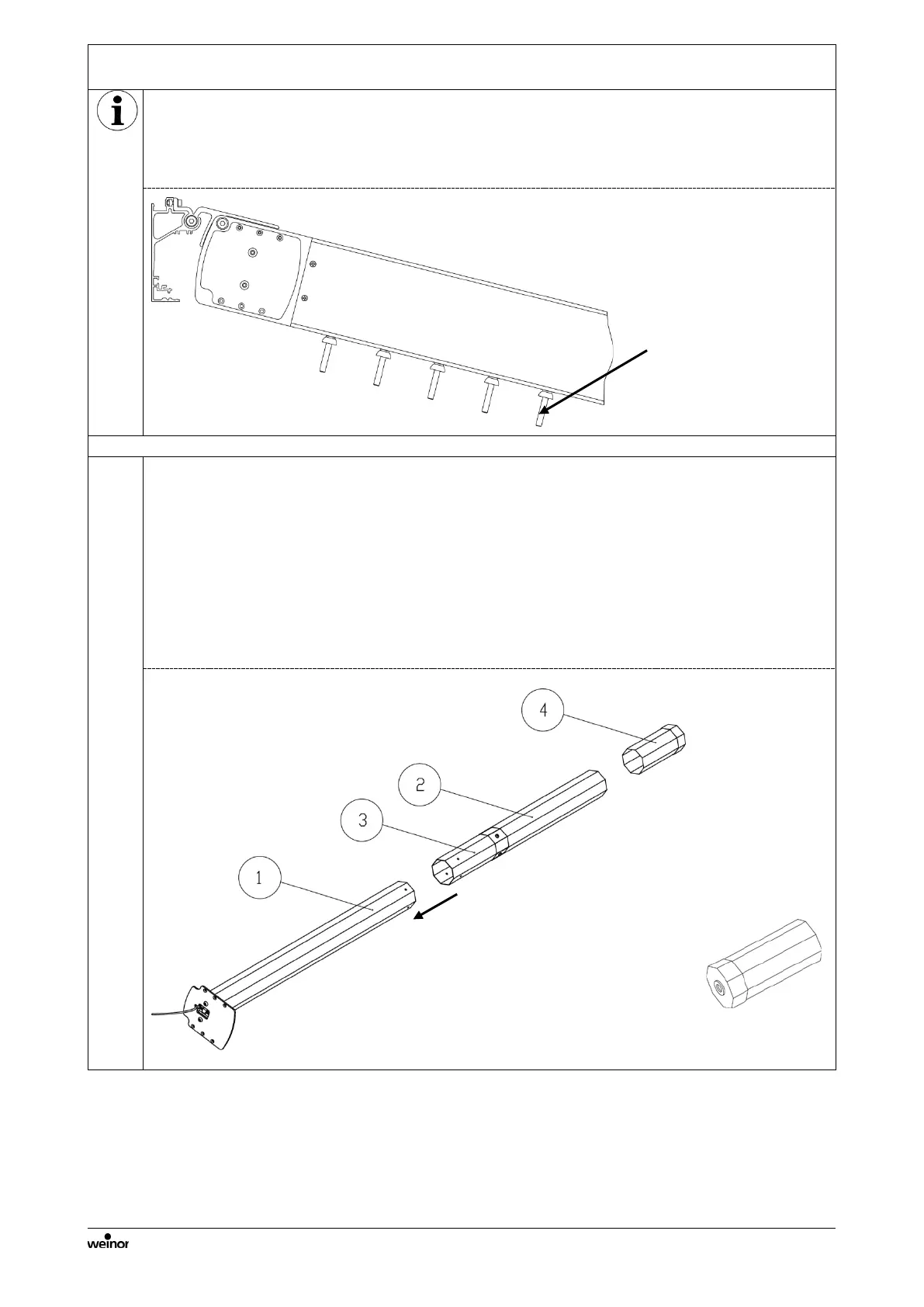

5.5 Installation of octagonal shaft and drive
The octagonal shaft is always delivered in two sections.
There are holders for the transoms in every side channel. To ensure that the transoms
run parallel, these holders must be aligned prior to the insertion of the octagonal shaft. To
do this for each side channel, push the bottom carriage (carriage) right to the top in the
direction of the wall gap sealing profile.
1.
Provision of octagonal shaft
Note:
The short octagonal shaft section (2) is positioned on the bearing side of the construction.
The "octagonal shaft connecting piece" (3) for both octagonal shaft sections (1) (2) is
mounted here.
Prior to installation, attach the "octagonal shaft connecting piece" (3) to the long
octagonal shaft piece (1) and mount the octagonal shaft holder on the bearing side
(4) to the tube.
Carriage
Octagonal shaft holder
bearing side (4)
Drive side
Bearing side
