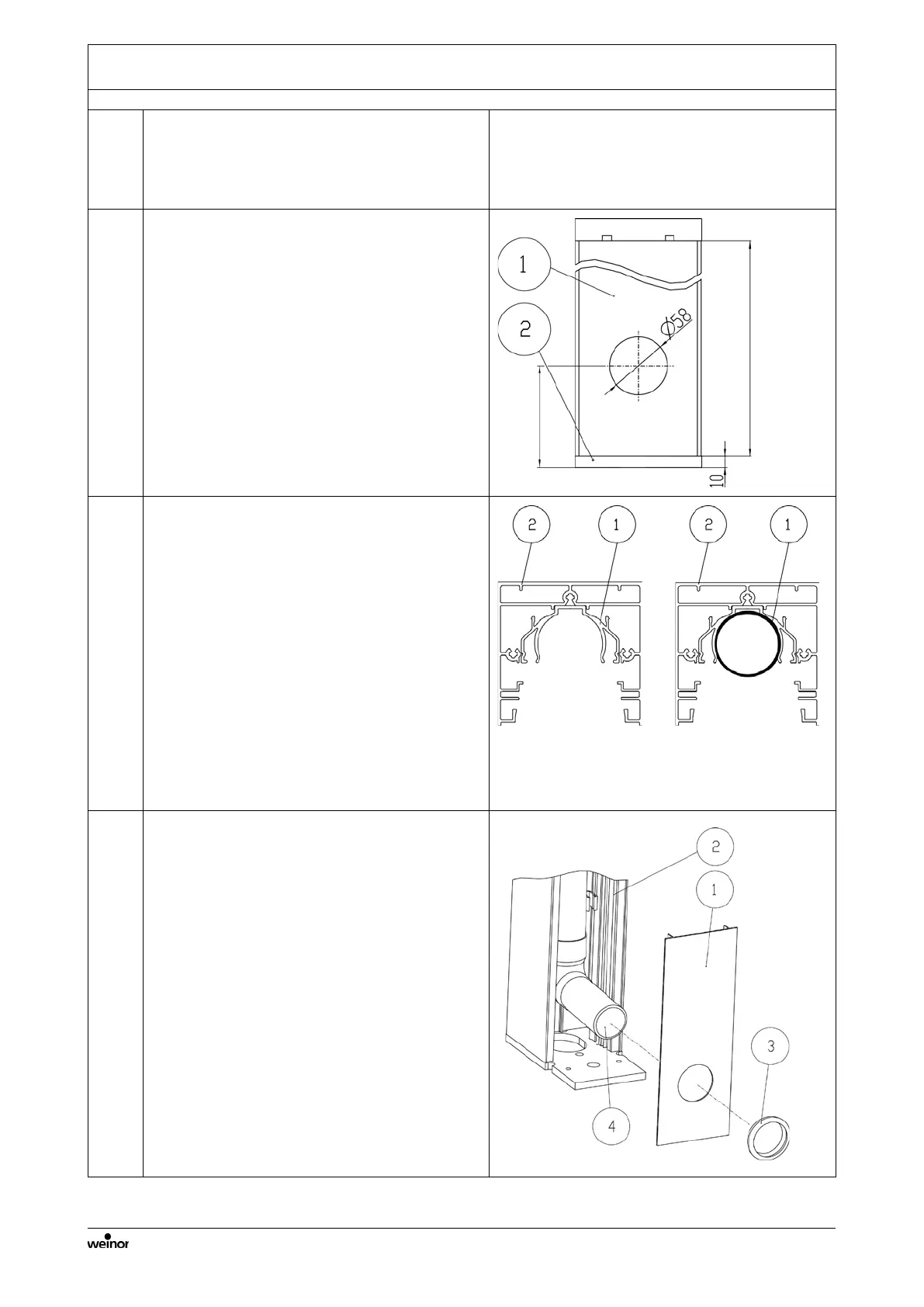

5.14 Installation of the water drain post centre/ wall
1.
Cut the downspout
2. Trim downspout according to the length
of posts.
2.
Provision of "clip profile post centre/
wall
1. Using a Ø58 mm lock saw, cut a
drainage hole into the "clip profile post
centre/ wall (1). Determine the height
from the floor to the centre of the bore
and subtract the dimension 10 mm from
the post plate (2).
2. Determine the length of the "clip profile
post centre/ wall" (1) and cut.
3.
Installation of pipe bend and downspout
1. Clip the clamps (1) in the post (2)
(Detail A). If necessary, the clamp (1)
can be slightly bent to prevent it from
slipping.
2. Insert downspout into the clamp (1)
(Detail B).
3. Mount the downspout at the top of the
post to drainage outlet using adhesive
tape (compare with Chapter 5.12
section 3).
4. Push pipe bend below in the post onto
the downspout and stick with adhesive
tape (compare with 5.13 section 3).
4.
Installation of the "clip profile post
centre/ wall"
1. Clip the prepared "clip profile post
centre/ wall" (1) onto the post (2).
2. Attach seal (3) to pipe bend (4) or insert
into the drainage bore of the clip profile.
