PergoTex II/ PergoTex II LED
Instructions for assembly
We reserve the right to make technical changes
Standard configuration: mounting post with post plate 5.2.2
• Different post plates are available for the weinor PergoTex II: "Post plate large outside
post", "Post plate small outside post", "post plate large centre post/ wall" and "post
plate small centre post/ wall". In this document, only the "post plate large outside
post" is demonstrated as standard configuration.
• The attachment screws for the post plates are self-tapping countersunk screws
6.3x50 Torx. The attachment screws need only be greased before they are screwed
in.

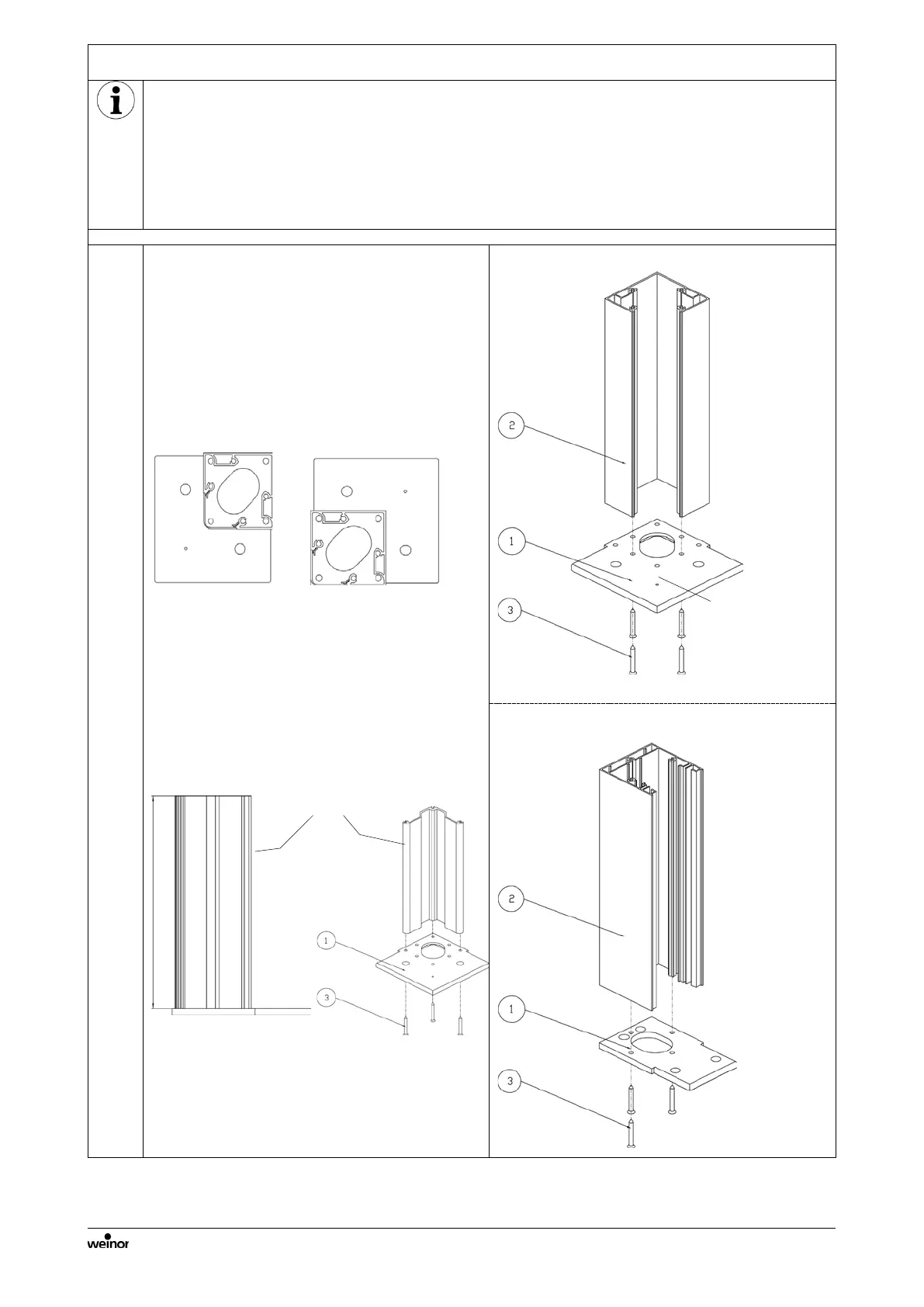

Bolting outside post with post plate
1. Position "post plate large outside post"
(1) on the "outside post" (2) and bolt
with 4 self-tapping countersunk hex
head screws 6.3x50 Torx (3).
2. There is also the possibility to turn the
"post plate large outside post" (1) if the
structural conditions allow:
Note:
"Outside posts" (2) can have a plug-in unit
profile. If available, this will be bolted
initially to the corresponding post plate (1)
with 3 self-tapping countersunk hex head
screws 6.3 x 50 Torx (3).
If necessary, the plug-in unit profile can be
sawed to the required length.
marking which
can be drilled
open for
mounting
purposes if
necessary.
plate large
post centre/
wall
Length of plug-in unit profile
