PergoTex II/ PergoTex II LED
Instructions for assembly
We reserve the right to make technical changes
5.10 Installation of fabric package with transoms
• Aids for the elevation of the fabric package are required, for example an assembly
trestle.
• The fabric package is wound in such a way that the procedure must start with the
bottom transom (carriage) on the guttering (see photo A). The carriages are moved
to the guttering for this purpose.
• Alternatively, the carriages can be left at the top position and the fabric package can
be installed from top to bottom.
• Contact surfaces for the fabric package and all aids for elevating the fabric package
must be clean so that the fabric will not be soiled.

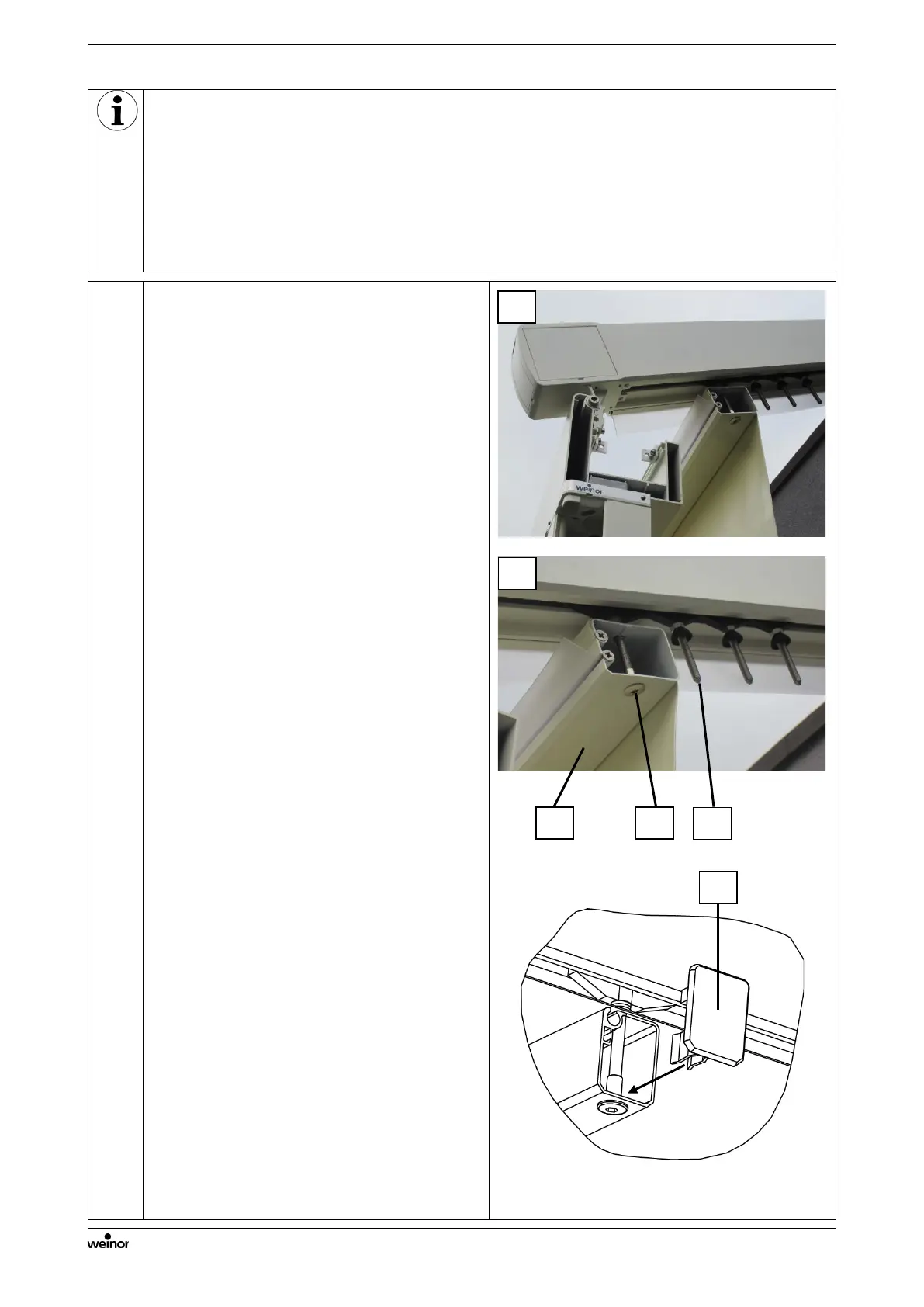

Installation of the fabric package with
transoms
1. Ascend the carriage until it is just
before the guttering (see photo A).
2. Unscrew hexagon cap nuts M8 (1).
3. Start with the large bottom transom
80x60 mm (2) and put this with the
bores onto the axles (3) of the carriage
(see photo B).
Note:
The hexagon cap nuts M8 (1) can be
greased inside to facilitate the bolting.
4. Bolt with hexagon cap nut M8 (1)
without tightening (see photo B).
CAUTION:
Do not overtighten the hexagon cap nut M8
(1). A torque of 0.1 – 0.15 Nm is
recommended. Over-tightened hexagon
cap nuts have an effect on the motion of
the transoms. Carriages could be distorted.
Consequently, the centre transoms will not
travel downwards properly. This will result
in intermediate hold-up with uneven shifting
of the transoms.
Note:
The hexagon cap nut M8 (1) is
overtightened if the cover caps for the
transoms cannot be properly attached in
the next step.
5. Repeat these steps until all transoms
are connected to the carriage.
Note:
For a centre side channel, the transoms
must also be fixed in the centre of the
construction.
6. Put "cover caps for transoms" (4) on
both sides of each of the transoms.
