PergoTex II/ PergoTex II LED
Instructions for assembly
Version 9
05.10.2017
We reserve the right to make technical changes
Item number
118697-0000
Page 37/66

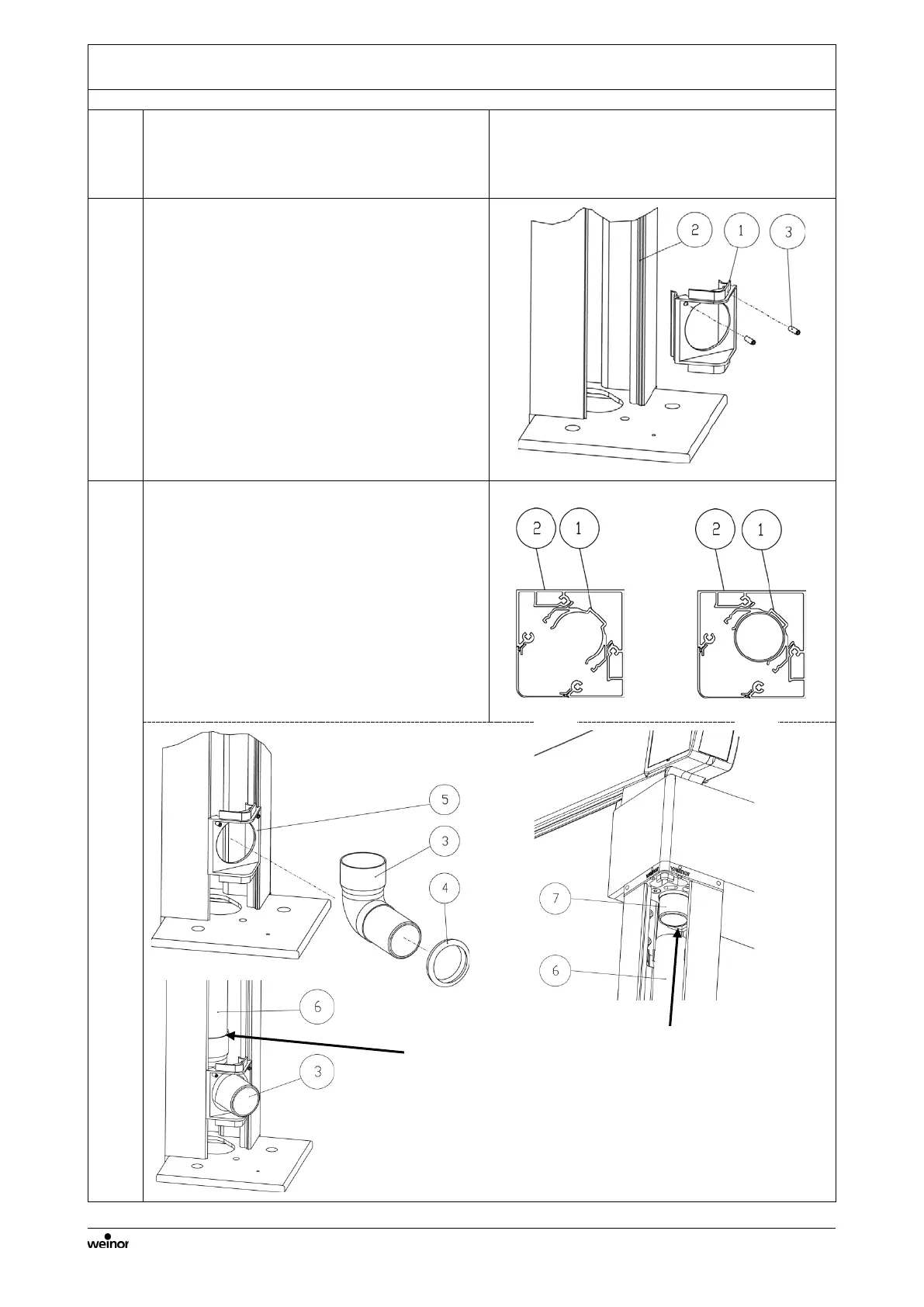

5.13 Installation of water drain outside post
1.
Cut the downspout
1. Trim downspout according to the length
of posts.
2.
Installation of the cover pipe bend
1. Insert "pipe bend cover" (1) at the
corresponding height into the post.
2. Fix with 2 grub screws M5x16 (2).
3.
Installation of pipe bend and downspout
1. Clip the clamps (1) in the post (2) (Detail
A). If necessary, the clamp (1) can be
slightly bent to prevent it from slipping.
2. Fix pipe bend (3) with seal (4) in the "pipe
bend cover (5).
3. Adhere downspout to drainage outlet (7)
and below to the pipe bend (3) using
adhesive tape.
4. Insert downspout into the clamp (1)
(Detail B).
A
B
2.
3.
3.
Adhesive
point on pipe
bend
Adhesive
point on drain
outlet
