PergoTex II/ PergoTex II LED
Instructions for assembly
We reserve the right to make technical changes

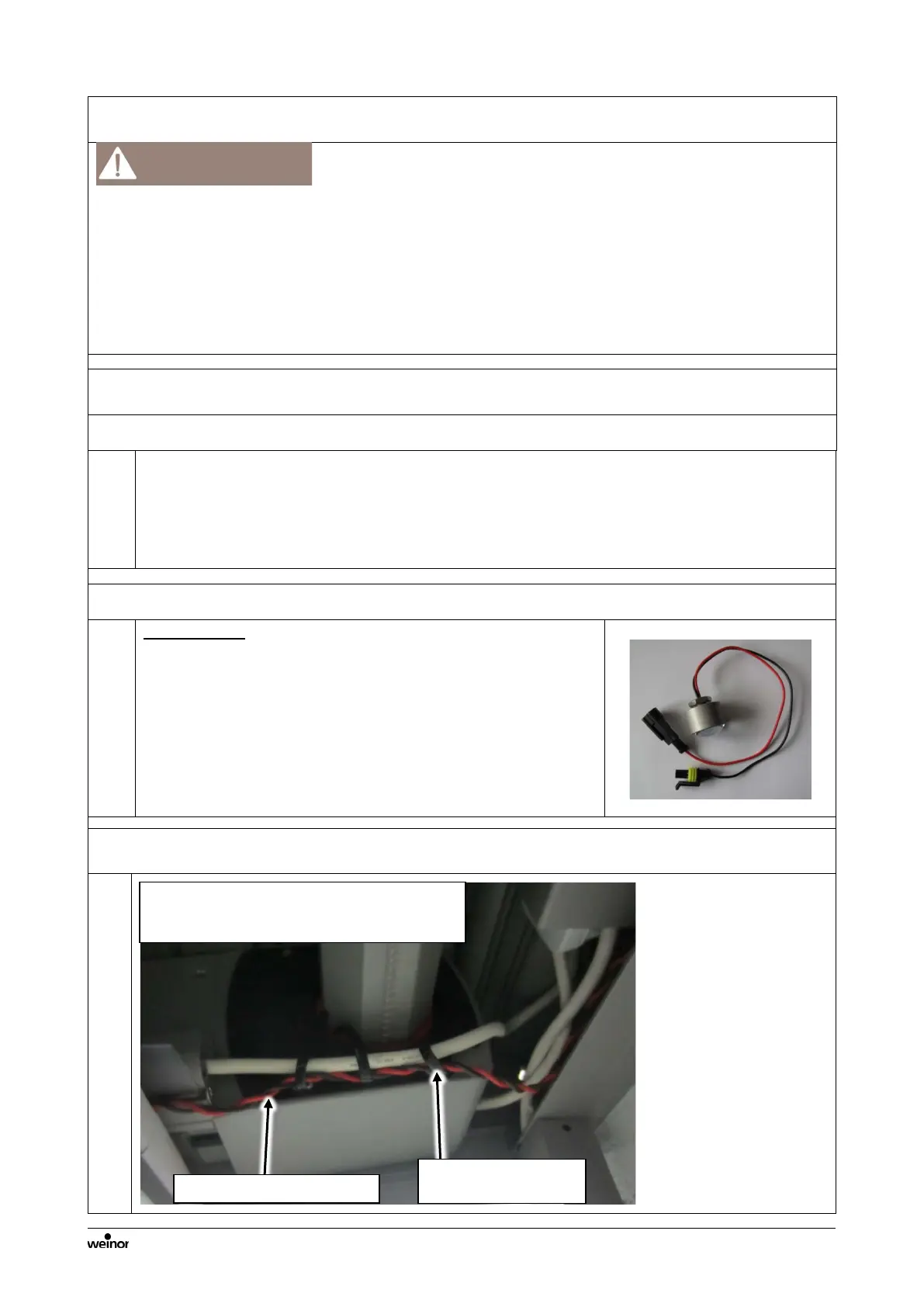

10 weinor PergoTex II LED lighting
10.1 Safety instructions on LED lamps
Damage to LED spotlights
Improper installation and wiring can result in the LED lamps being damaged.
To ensure the proper functioning of the soft-start feature - which means full
brightness is reached gradually - never connect the LED lighting device when
energised. This also applies when replacing individual LED spotlights. Always wire up
the lamps with the power turned off and only then switch on using a 230 V AC power
supply voltage.
10.2 Technical details - LED lamps
Lighting device 10.2.1
Nominal voltage: 230 V AC / 700 mA DC
Number of lamps: 2 – 48 LED spotlights
Dimmable: yes (with BiConnect BiRec MLED)
Circuit design Series-connected
IP code: IP24
LED lamps 10.2.2
Bulb: LED lamp (Cree MX6)
Operating current: 700 mA constant current
Voltage per light: 3.7 V
Output per light: 2.6 W
Colour temperature: Warm white (3000 K)
Radiation angle: 60°
Housing diameter: 29 mm
10.3 Lead routing for installation of the construction with LED lights
The black and red supply cable is fixed on the
steel cable ties preassembled at the factory onto
the "end caps for the rear side channel".
Bend steel lead ties
around the lead
Black and red supply cable
