PergoTex II/ PergoTex II LED
Instructions for assembly
Version 9
05.10.2017
We reserve the right to make technical changes
Item number
118697-0000
Page 30/66

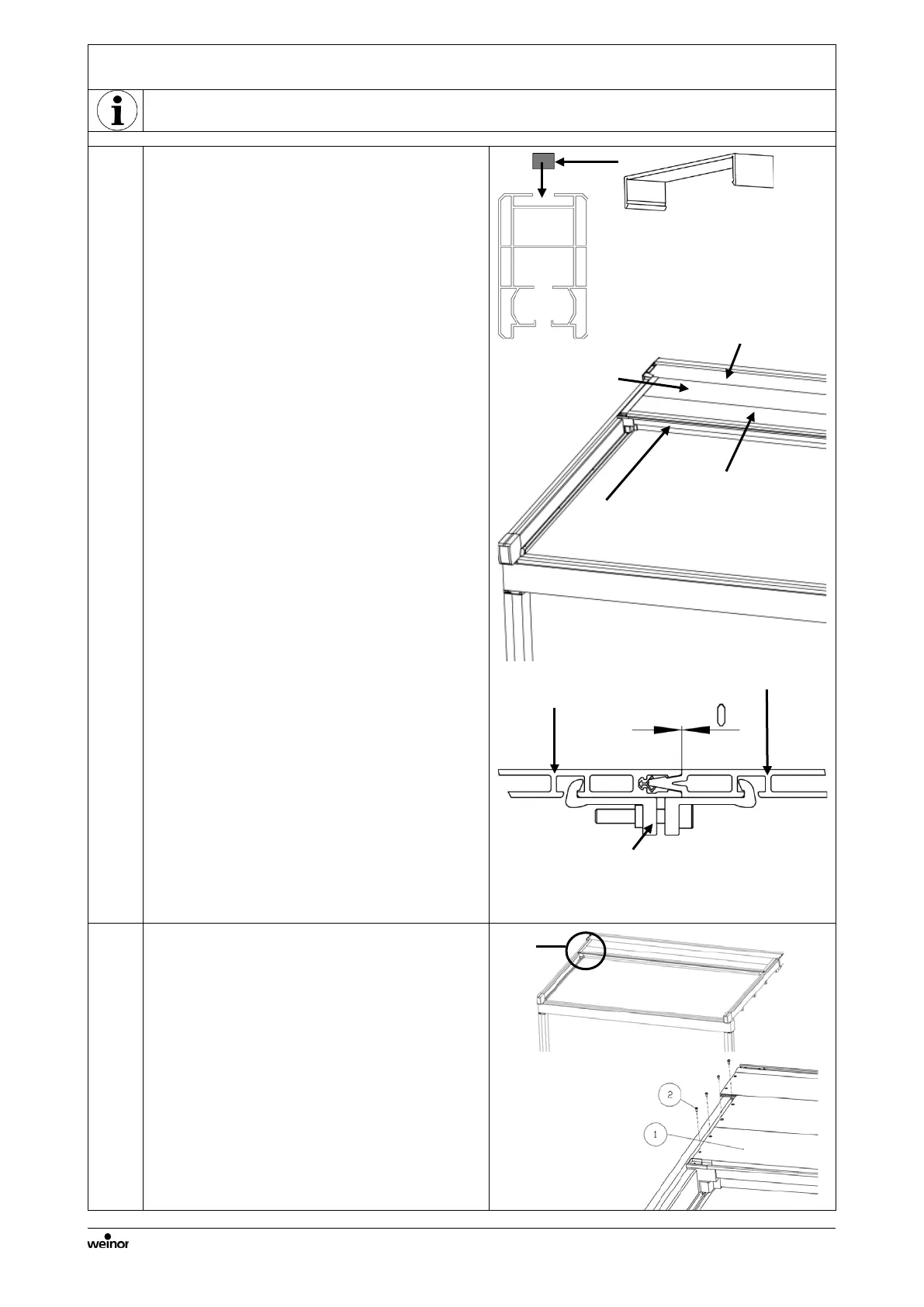

5.9 Installation of the safety shield profiles
The number of safety shield profiles is dependent on the projection.
At least one, maximum five safety shield profiles are possible.
1.
Installation of the safety shield profiles
Note:
The "sideways safety shield arrester"
included in the "side channel wall bracket"
screw set is used for easier alignment of
the safety shield profile. A separate
mounting instruction sheet is enclosed in
the set of screws.
1. Position the first safety shield profile
(without fixing slider 59 mm) with the
seal in the direction "safety shield
guttering" on the side channel and push
into the "safety shield retaining profile".
2. Insert the assembled bracing from
below and brace the first safety shield
profile with the "safety shield retaining
profile".
3. If a further safety shield profile (without
fixing slider 59 mm) with seal is
available, position this likewise on the
side channel with the seal in the
direction "safety shield guttering", push
into the first safety shield profile and
brace.
4. Finally the safety shield profile (with
fixing slider 59 mm) without a seal is
placed on the side channel and the
"safety shield guttering".
Note:
The "safety shield bracing" should be
bolted enough to allow the safety shield
profile to meet the surge.
2.
Checking and bolting the alignment
1. Check the alignment of all the safety
shield profiles.
2. Bolt safety shield (1) sideways with
drilling screws 3.9x13 (2). 2 drilling
screws 3.9x13 per safety shield profile
are screwed sideways into the pre-
drilled holes.
3. Bolt the bottom safety shield profile to
the "safety shield guttering". According
to the width of the unit, screw 1 to 2
drilling screws 3.9x13 into the pre-
drilled hole(s).
Safety shield arrester
sideways in the "small
parts set side channels
wall brackets“
First safety shield
profile
Second/ final
safety shield
profile
Guttering
safety shield
Retention profile
safety shield
First safety shield
profile
Second/ final safety
shield profile
Bracing safety shield
A
Detail A
