PergoTex II/ PergoTex II LED
Instructions for assembly
We reserve the right to make technical changes
5.11 Functional check
safety instructions 5.11.1
Physical injury
Performing functional checks is not without its risks. The following steps must be taken:
When ascending the weinor PergoTex II for the first time, its working range and the
area below it must be kept clear.
A visual inspection of the fixing material and brackets must be performed after the
weinor PergoTex II has been ascended for the first time.
When carrying out test runs, never use automatic system controls or commutators if
the weinor PergoTex II is not in the operator's line of vision (danger of unintentional
start-up).
We recommend that you connect a test lead to the motor input.
The installation and setting instructions supplied by the manufacturer of the drive,
commutators and controls must be observed.
Check the direction of rotation on the motor if connecting to automatic system control
(e.g. the weinor PergoTex II must retract in windy conditions).
With the weinor PergoTex II, it is especially important to set the drive during running-
in with point limiter approx. 2 cm before the end position and during ascending with
torque limiter.
Checking the functions of the construction 5.11.2
The drive switch-on time has been designed for 4 minutes. If this time is exceeded, the
internal thermo protector will switch off the drive. Depending on the outside temperature,
the drive can be operated again after 10 – 15 minutes.
Ascend and retract the weinor PergoTex II once.
Connect the motor cable to the electric conductor of the test run cable.
As you do this, check the following:

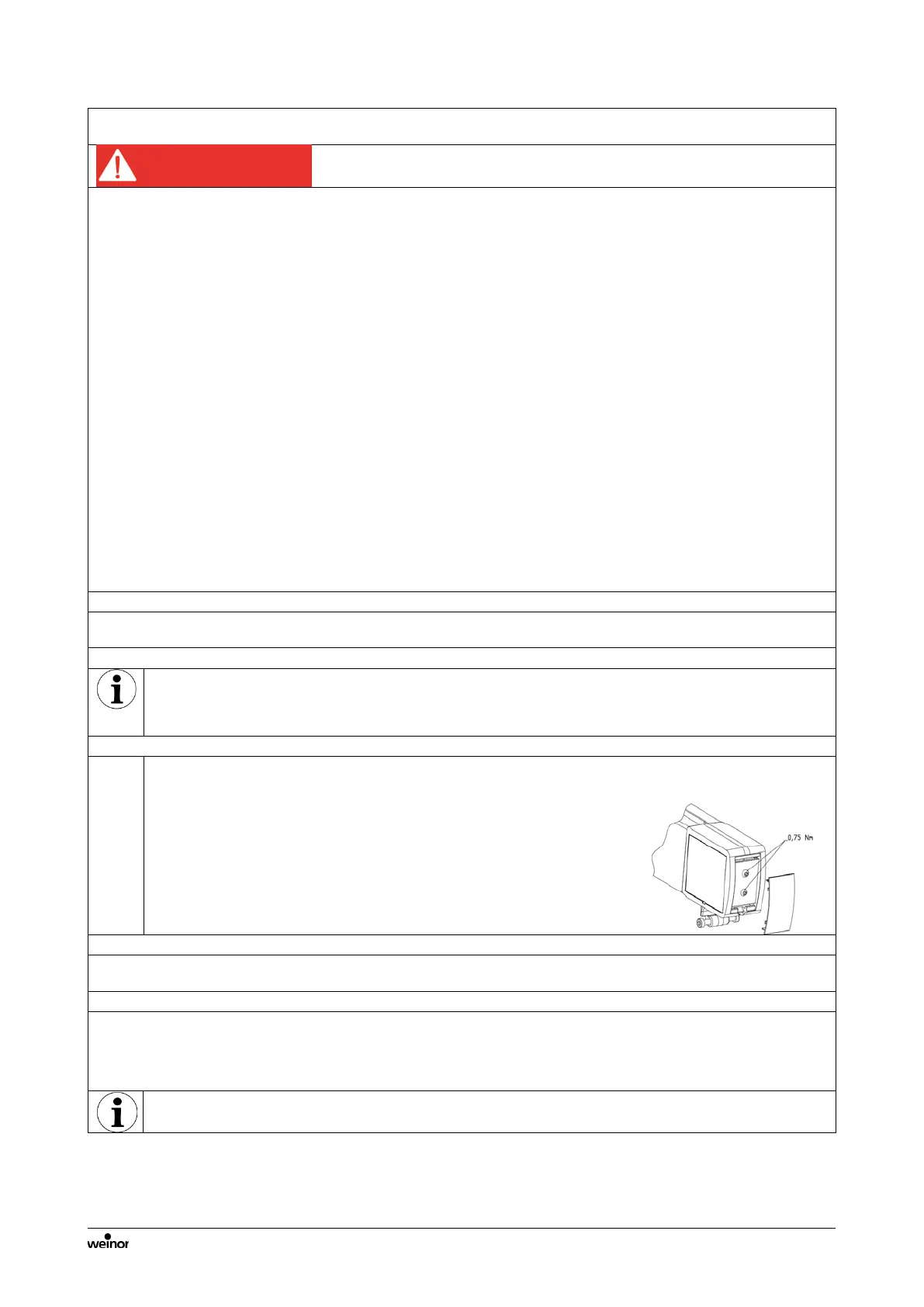

• The screws' torque (must be 0.75 Nm) in every front end
cap (see figure)
• The position of the awning when opened and retracted
• Switch light on and off
Test run 5.11.3
1. Carry out a test run and pay attention to the transoms, noise disturbance and even
movement.
2. Check that all leads are correctly routed and fixed. leads may not be too loose.
All screws, which have not yet been completed tightened prior to the alignment, should
now be tightened.
