PergoTex II/ PergoTex II LED
Instructions for assembly
Version 9
05.10.2017
We reserve the right to make technical changes
Item number
118697-0000
Page 54/66

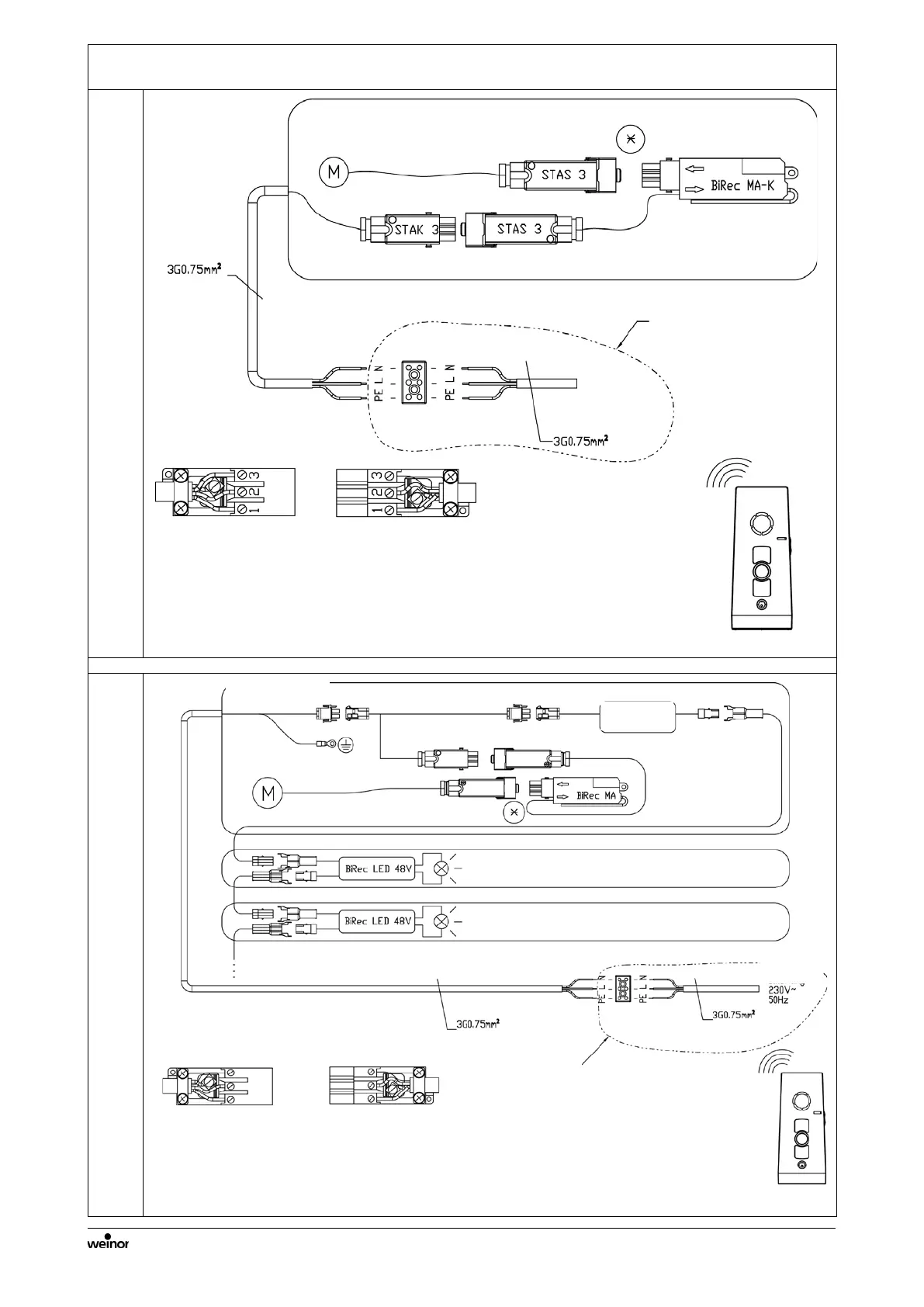

9.4 Circuit diagrams for connection of the adjustment kit
Figure 9: Circuit diagram weinor PergoTex II with BiConnect without LED
Figure 10: Circuit diagram weinor PergoTex II with BiConnect with LED
Hirschmann
Stas3
1 = N blue
2 = L brown
3 = not allocated
PE = Earthing
Hirschmann
Stak3
1 = N blue
2 = L brown
3 = not allocated
PE = Earthing
on-site
Hirschmann
Stas3
1 = N blue
2 = L brown
3 = not allocated
PE = Earthing
Hirschmann
Stak3
1 = N blue
2 = L brown
3 = not allocated
PE = Earthing
on-site
Input lead
*Connect
adjustment kit here
*Connect
adjustment kit with
service lead here
Input lead
230 V ~
50 Hz
Wall connection
Power supply
LED transom
LED transom
