weinor PergoTex II User Manual

PergoTex II/ PergoTex II LED
Instructions for assembly
Version 9
05.10.2017
We reserve the right to make technical changes
Item number
118697-0000
Page 55/66

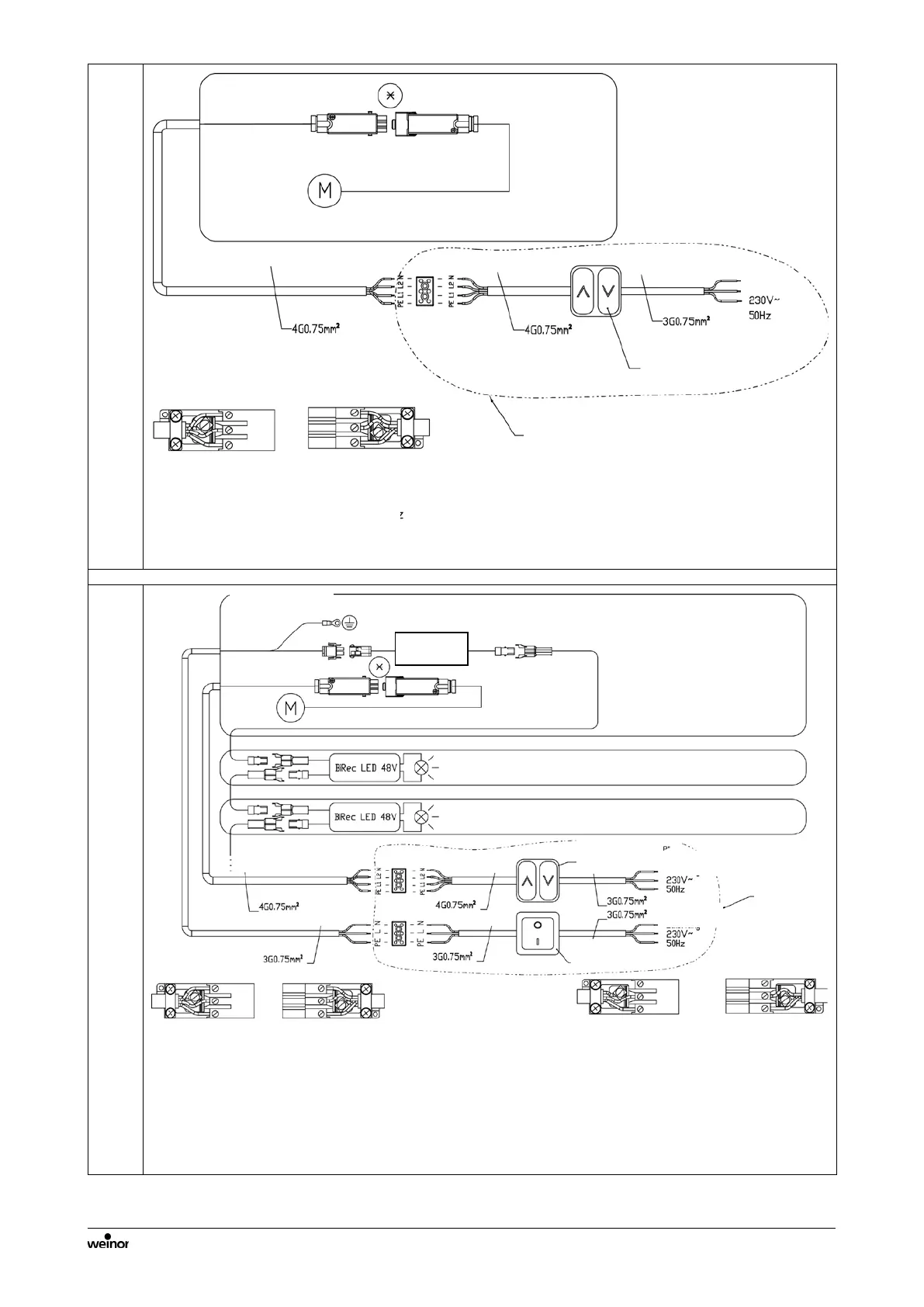

Figure 11: Circuit diagram weinor PergoTex II for conventional design without LED
Figure 12: Circuit diagram weinor PergoTex II for conventional design with LED
Hirschmann
Stak3
1 = N blue
2 = L1 black
3 = L2 brown
PE = Earthing
on-site
Light switch
Commutator to move "UP"
and "DOWN"
Assignment
Hirschmann
Stak3 for the drive
1 = N blue
2 = L1 black
3 = L2 brown
PE = Earthing
Assignment
Hirschmann
Stak3 for the drive
1 = N blue
2 = L1 black
3 = L2 brown
PE = Earthing
on-site
Commutator to move "UP"
and "DOWN"
Input lead
*Connect
adjustment kit
here
*Connect
adjustment kit here
Hirschmann
Stas3
1 = N blue
2 = L1 black
3 = L2 brown
PE = Earthing
Input lead
Assignment
Hirschmann
Stak3 for the light
1 = N blue
2 = L1 black
3 = not allocated
PE = Earthing
Assignment
Hirschmann
Stas3 for the light
1 = N blue
2 = L1 black
3 = not allocated
PE = Earthing
Input lead
LED transom
LED transom
Wall connection
Power supply
