PergoTex II/ PergoTex II LED
Instructions for assembly
Version 9
05.10.2017
We reserve the right to make technical changes
Item number
118697-0000
Page 41/66
Remove the protective
film of the contour
sealing compound

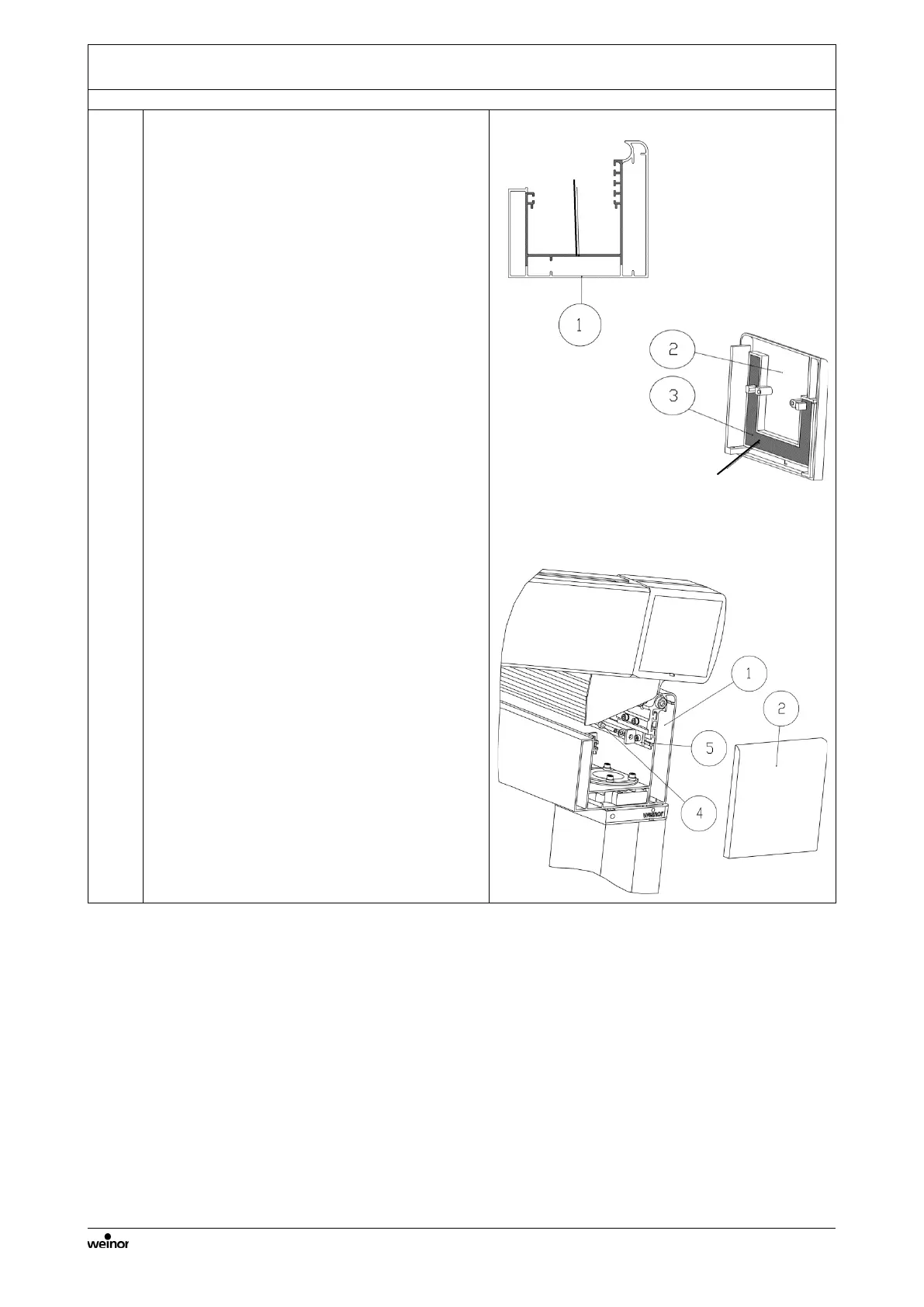

5.17 Installation of the "guttering cover cap"
1.
Installation of the "guttering cover cap"
Note:
Clean the adhesive points on the guttering
(1). When positioning, ensure that the
"guttering cover cap" (2) is properly seated.
The contour sealing compound (3) must
touch the guttering (1).
1. Remove the protective film of the
contour sealing compound (3) on the
"guttering cover cap" (2).
2. Place the "guttering cover cap (2) on
the guttering (1) and from the inside
bolt with the 2 socket head cap screws
M5x30 (4) through the angle bracket
20x20x4 mm (5).
Note:
If attachment products e.g. a Vertitex are
mounted to the guttering, we recommend
that the guttering cover cap is mounted
after the installation of the attachment
products. This facilitates the lead routing
for the Vertitex through the chambers of the
guttering for example.
Adhesive point
on the
guttering
