weinor PergoTex II User Manual

PergoTex II/ PergoTex II LED
Instructions for assembly
Version 9
05.10.2017
We reserve the right to make technical changes
Item number
118697-0000
Page 57/66

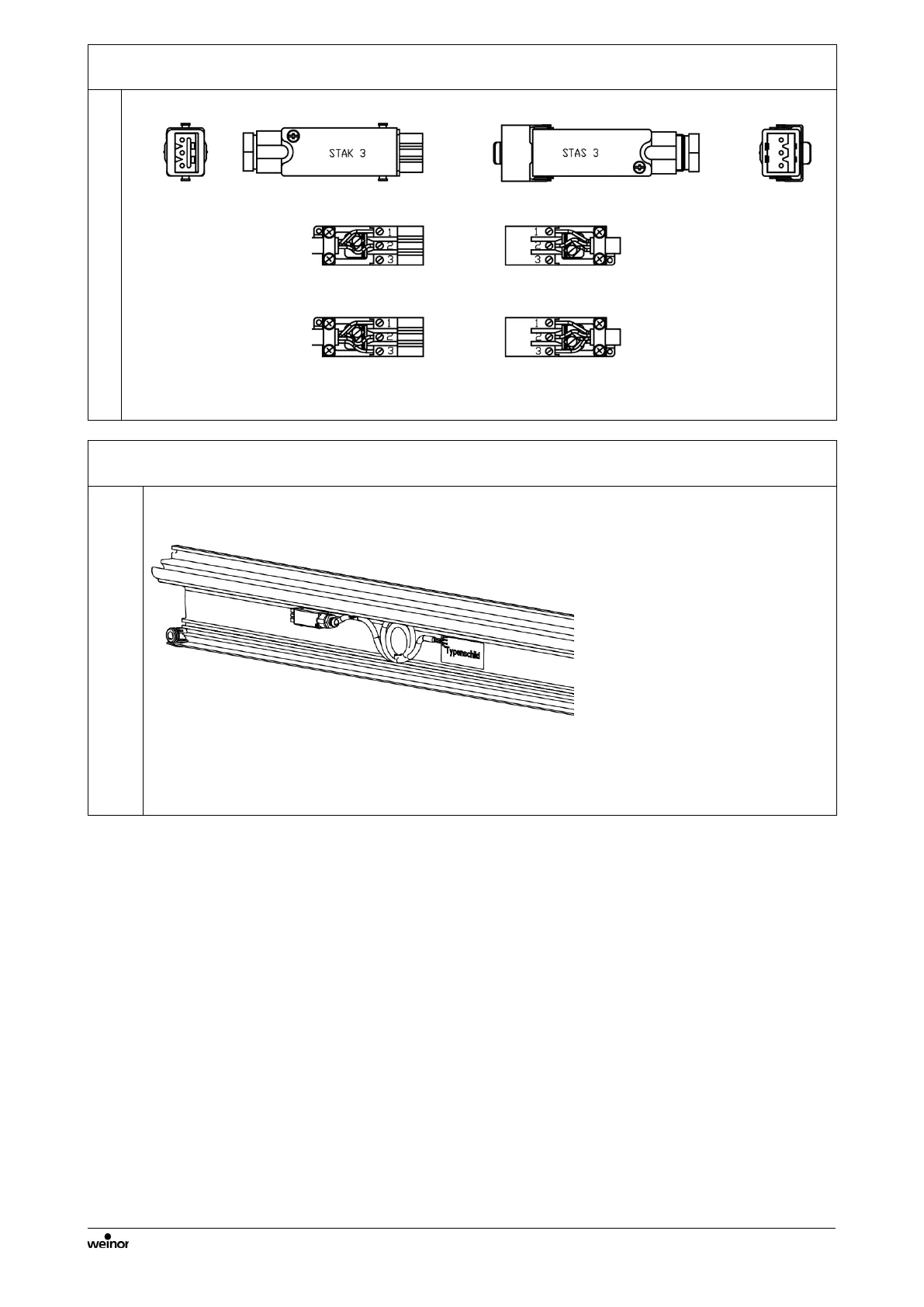

9.5 Cassita II with Hirschmann connection assembly
Figure 15: Hirschmann connection assembly
9.6 Lead routing for constructions without LED lighting
1. Plug motor cable into Hirschmann connection assembly/ BiConnect MA-K/ Somfy
Universal RTS motor remote-receiver (pre-mounted on wall gap sealing profile):
2. Mount steel cable tie with countersunk self-tapping screw 4.2x9,5 in the screw groove
of the wall gap sealing profile and secure the motor lead.
Shown here:
Hirschmann connection
assembly
Assignment for a 4-wire cable
connector Hirschmann STAK 3
1 = N blue
2 = L1 black
3 = L2 brown
PE = Earthing
Assignment for a 4-wire cable
plug
Hirschmann STAS 3
1 = N blue
2 = L1 black
3 = L2 brown
PE = Earthing
Assignment for a 3-wire cable
plug
Hirschmann STAS 3
1 = N blue
2 = L brown
3 = not allocated
PE = Earthing
Assignment for a 3-wire cable
connector Hirschmann STAK 3
1 = N blue
2 = L brown
3 = not allocated
PE = Earthing
