PergoTex II/ PergoTex II LED
Instructions for assembly
We reserve the right to make technical changes
Installation of post and guttering 5.2.4
The "post-to-guttering connection plate" is inserted in the lower chamber of the guttering. This
is always seated at the position where the post will be mounted.

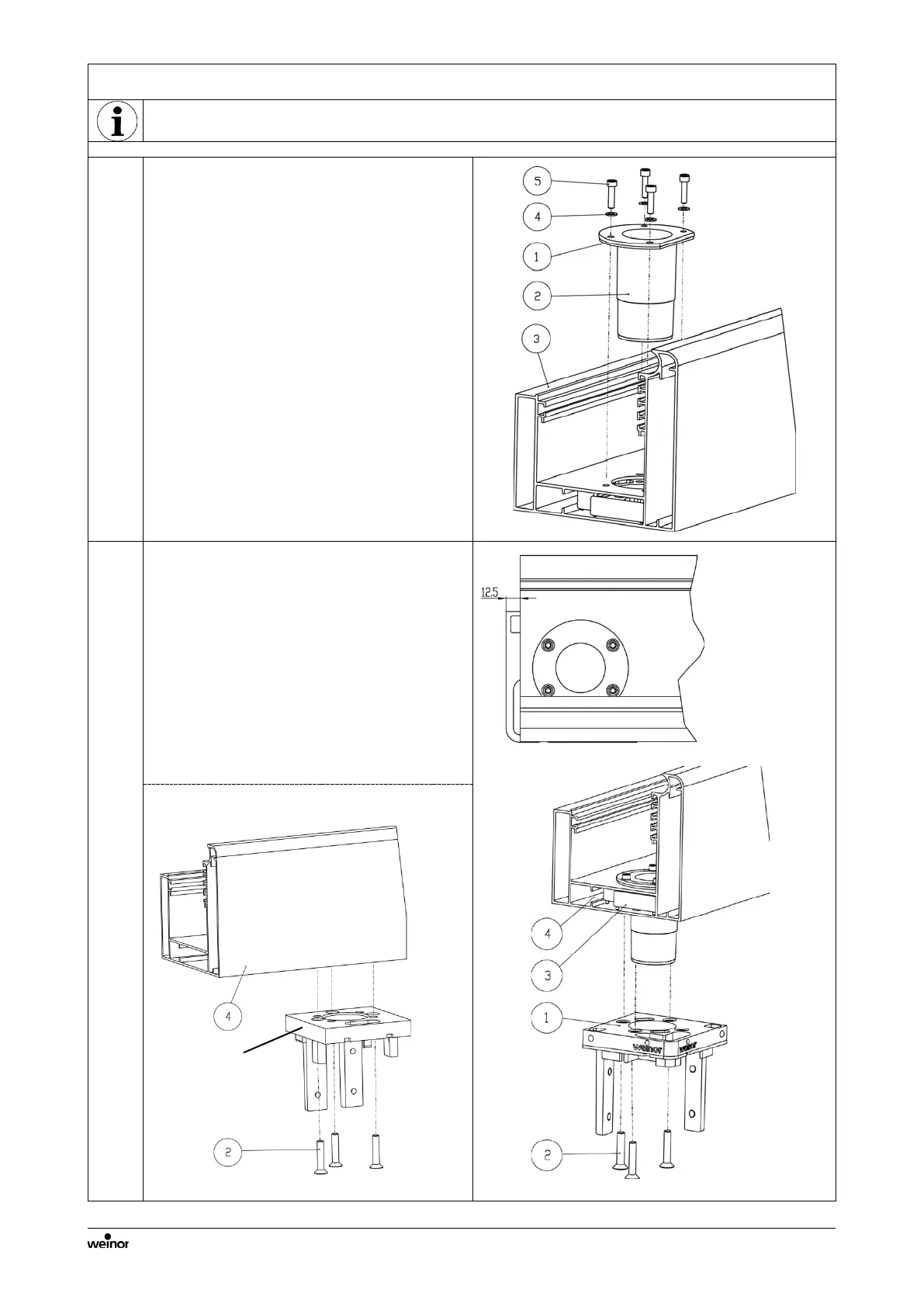

Installation of drainage outlet
CAUTION:
All adhesive surfaces must be cleaned.
Remove contour adhesive seal (1) at 1.
the bottom edge of the drainage spout
(2).
Position drainage spout (2) on the 2.
drainage hole of the guttering (3)
accordingly and bolt with 4 washers 5.3
(4) and 4 socket head cap screws
M5x20 (5).
Installation of "post to outside guttering
connection" to the guttering
1. Position "post guttering outside
connection" (1) in the guttering (4)
according to the drilling pattern.
2. Bolt from below with 3 countersunk hex
head screws M8x40 (2) so that the
"post guttering outside connection" (1)
with connector plate (pre-mounted in
the guttering) (3) + guttering (4) are
joined.
the "connection post guttering centre/ wall"
in constructions with central posts:
connection
above: the
"connection
post outside
guttering" at
the outer edge
of the guttering
projects 12.5
mm over
