PergoTex II/ PergoTex II LED
Instructions for assembly
Version 9
05.10.2017
We reserve the right to make technical changes
Item number
118697-0000
Page 24/66

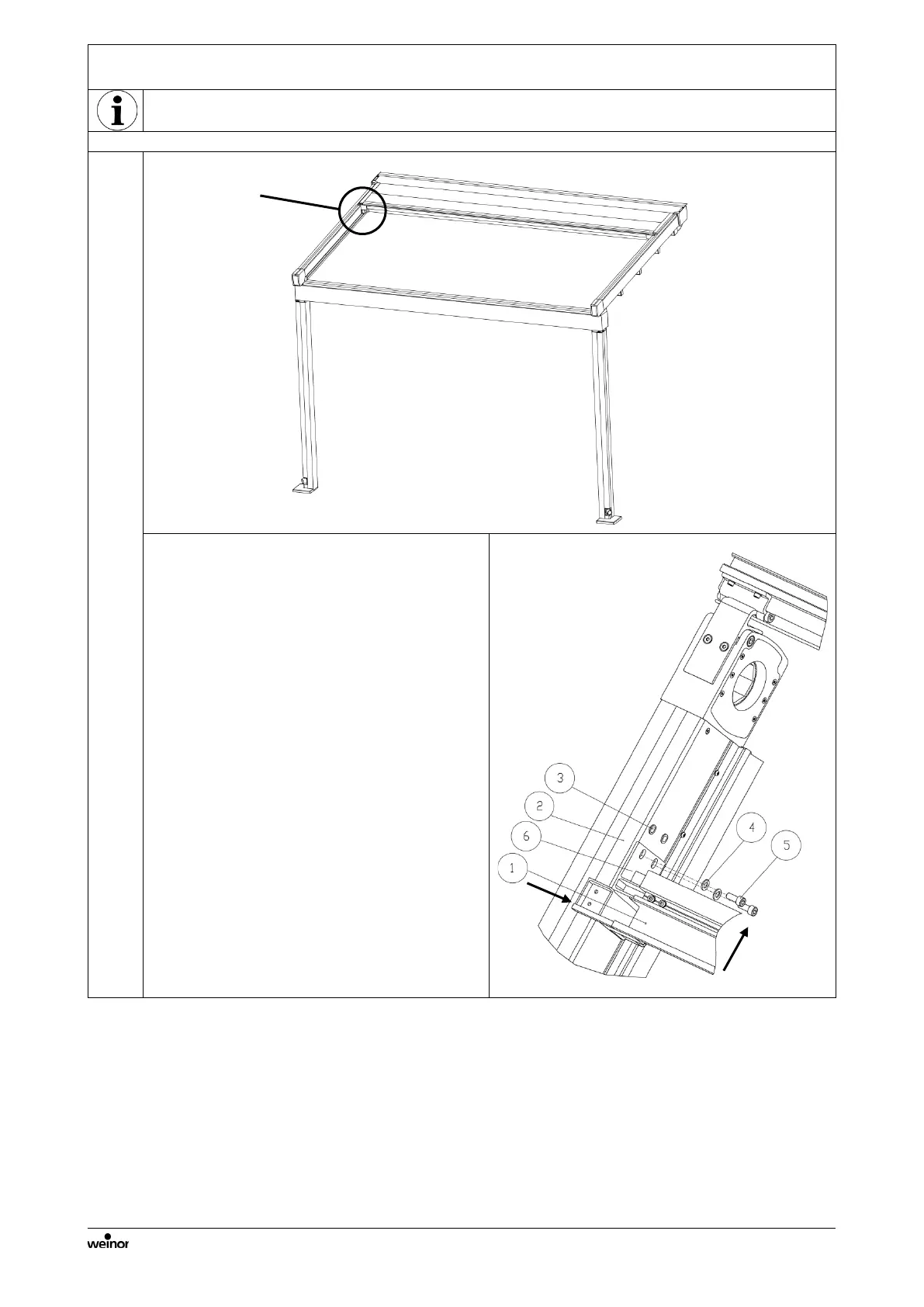

5.4 Installation of the guttering safety shield
The safety shield guttering must be mounted before all other attachment parts or the side
channels are bolted.
Installation of guttering safety shield
1. Place "guttering safety shield" (1)
between the side channels (2) from
above and push until you reach the 2
flat head blind-rivet nuts M8 (3) in the
side channel (2).
2. Screw the "safety shield guttering" (1)
to the side channels (2) with 2 washers
8,4 (4) and 2 socket head cap screws
M8x20 (5).
3. Do not tighten the socket head cap
screws M8x20 (5) yet.
Note:
Assembly tolerances of the subsequent
safety shield profiles can be compensated
later by the long slots in the "side channel
safety shield connection" (6).
Consequently, the socket head cap screws
M8x20 (5) are only tightened when the
complete safety shield has been mounted.
A
Detail A
