weinor PergoTex II User Manual

PergoTex II/ PergoTex II LED
Instructions for assembly
Version 9
05.10.2017
We reserve the right to make technical changes
Item number
118697-0000
Page 50/66

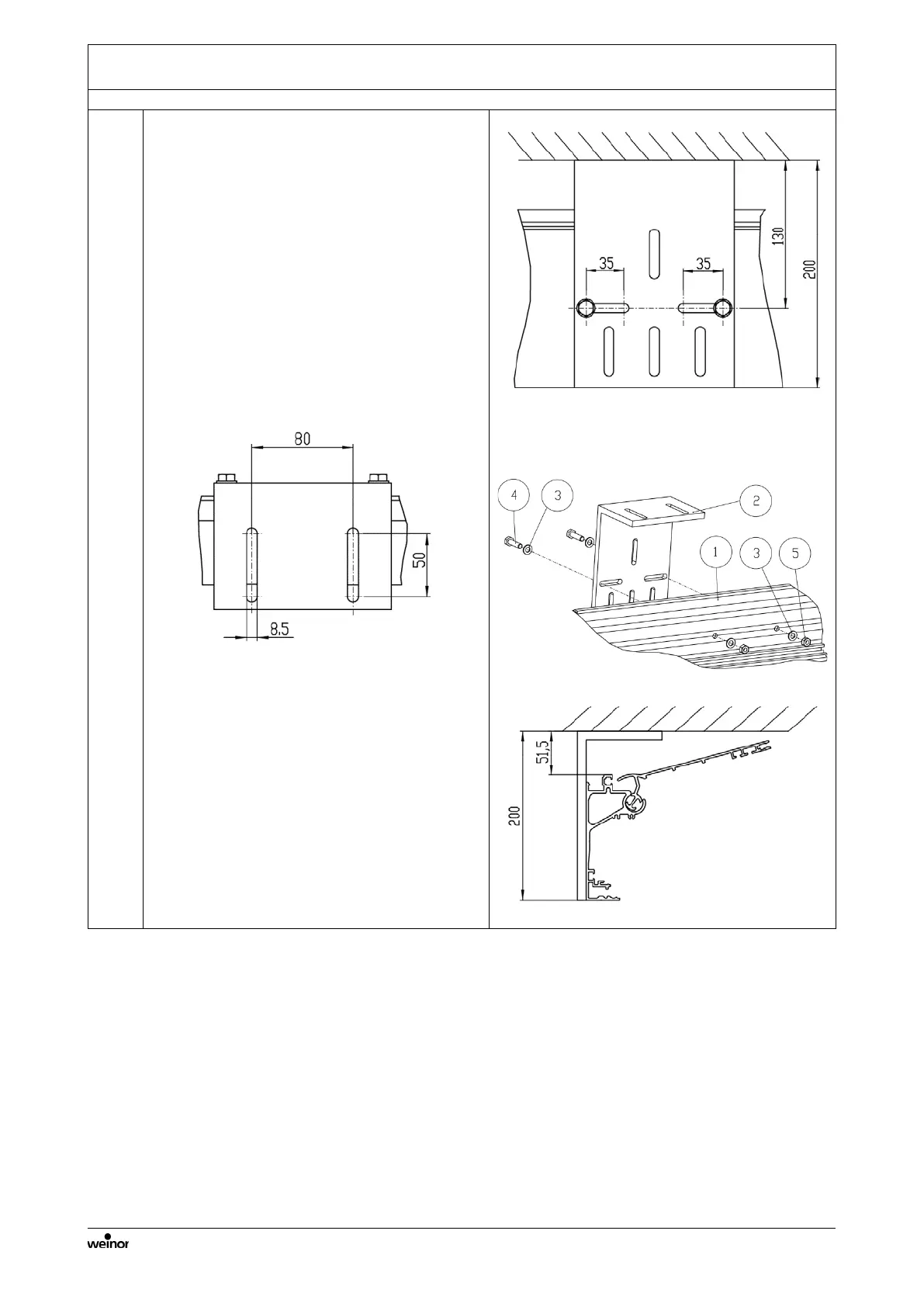

7.2 Roof installation
Angle bracket 200x100x10 mm for roof
mounting
1. Drill holes Ø 8.4 mm into the wall gap
sealing profile (1) according to the
structural conditions. Observe the
dimensions of the long slots (see Detail
A).
2. Hold the angle bracket 200x100x10 mm
(2) according to the drill holes to the
wall gap sealing profile (1) and push in
2 washers 8.4 (3) with 2 hex socket
head screws M8x30 (4) from behind.
3. Bolt with 2 washers 8.4 (3) and 2
hexagonal nuts M8 (5) from the front.
Note:
The "safety shield retaining profile" can be
swivelled when the construction has been
mounted to the roof (see Detail B).
• All further mounting steps can be found
in the weinor PergoTex II Chapters.
Detail A
View as seen from
above
As seen from the back
Detail B
