PergoTex II/ PergoTex II LED
Instructions for assembly
We reserve the right to make technical changes

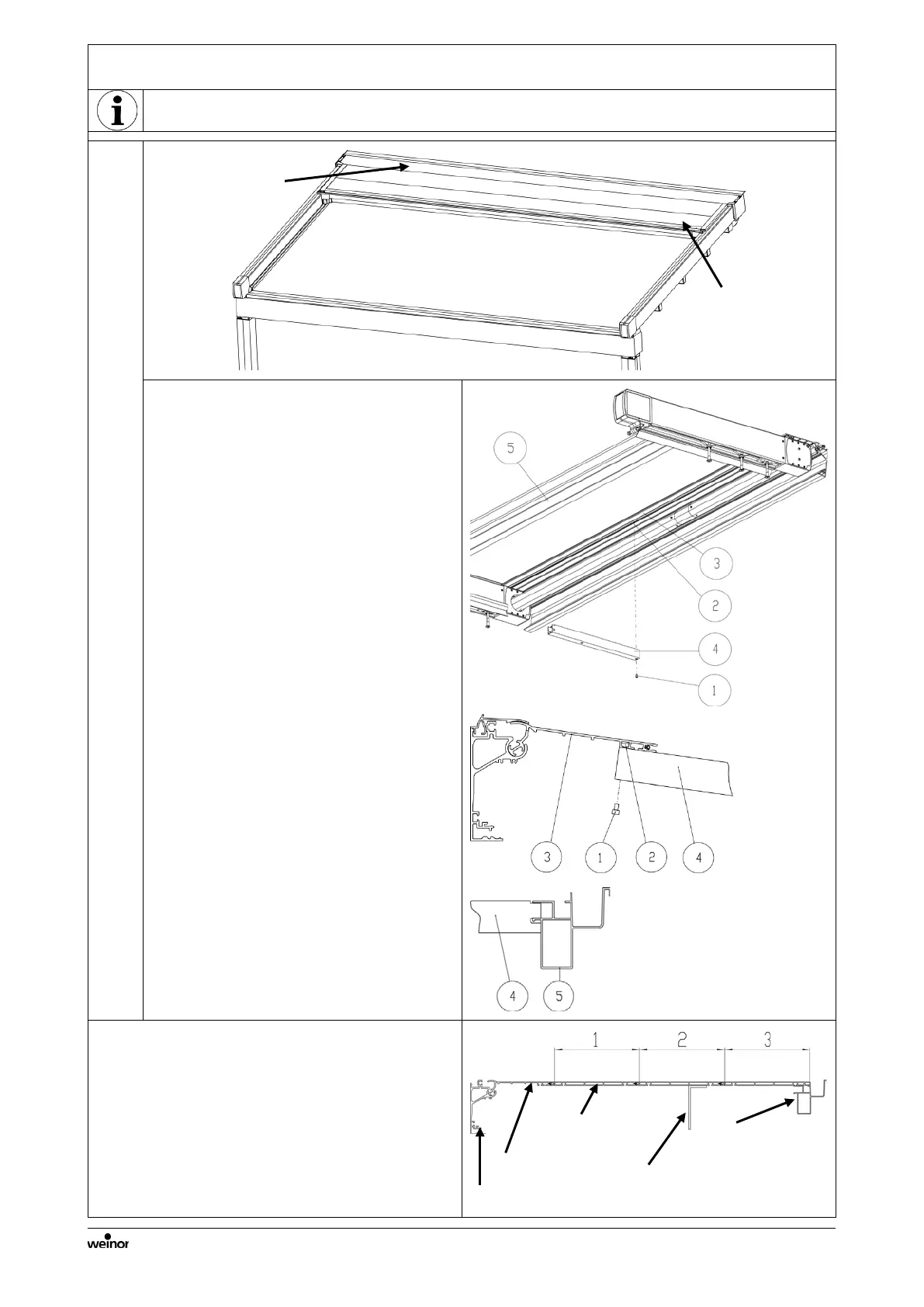

5.8 Installation of the safety shield support profile
The support profile must be mounted when this is necessary for statical or dimensional
requirements for easier installation.
Installation of support profile
Note:
In the "retaining profile safety shield"
and in the front safety shield profile,
Fixing sliders 59 mm are already pre-
mounted with socket head cap screws
M5.
1. Loosen socket head cap screw
M5x12 (1) on the pre-mounted
fixing slider 59 mm (2) in the "safety
shield retaining profile" (3).
2. Insert support profile (4) into the
"safety shield guttering"“ (5) from
below and bolt to the "safety shield
retaining profile" (3) again with
socket head cap screw M5x8.
Note:
There is still a second screw in the front
safety shield profile. The installation of
this bolting is explained in Chapter 5.9
section 3.
When providing reinforcement by using the
100x40 mm safety shield reinforcement
profiles, the support profiles do not have to be
used. The reinforcements are mounted in the
factory in accordance with the specified snow
load as well as width and projection. You can
find the position of the safety shield profiles
with reinforcement on the package insert.
profile safety
shield
shield profile
Safety shield
profile 235 mm
Safety shield reinforcement
profile 100x40 mm
Retention profile
safety shield
shield
