PergoTex II/ PergoTex II LED
Instructions for assembly
Version 9
05.10.2017
We reserve the right to make technical changes
Item number
118697-0000
Page 51/66
8 Installation of the weinor PergoTex II Basic/ LED
The number of sideways angle brackets is determined on site according to the
structural conditions prior to ordering a weinor PergoTex II.
The number of front angle brackets is always dependent on the number of the side
channels.
The number of rear angle brackets is determined on site and may not be fewer than
the number of side channels.
Drill holes Ø 8.4 mm into the wall gap sealing profile according to the structural
conditions. Observe the dimensions of the long slots in the respective angle bracket.
All further mounting steps can be found in the weinor PergoTex II Chapters.

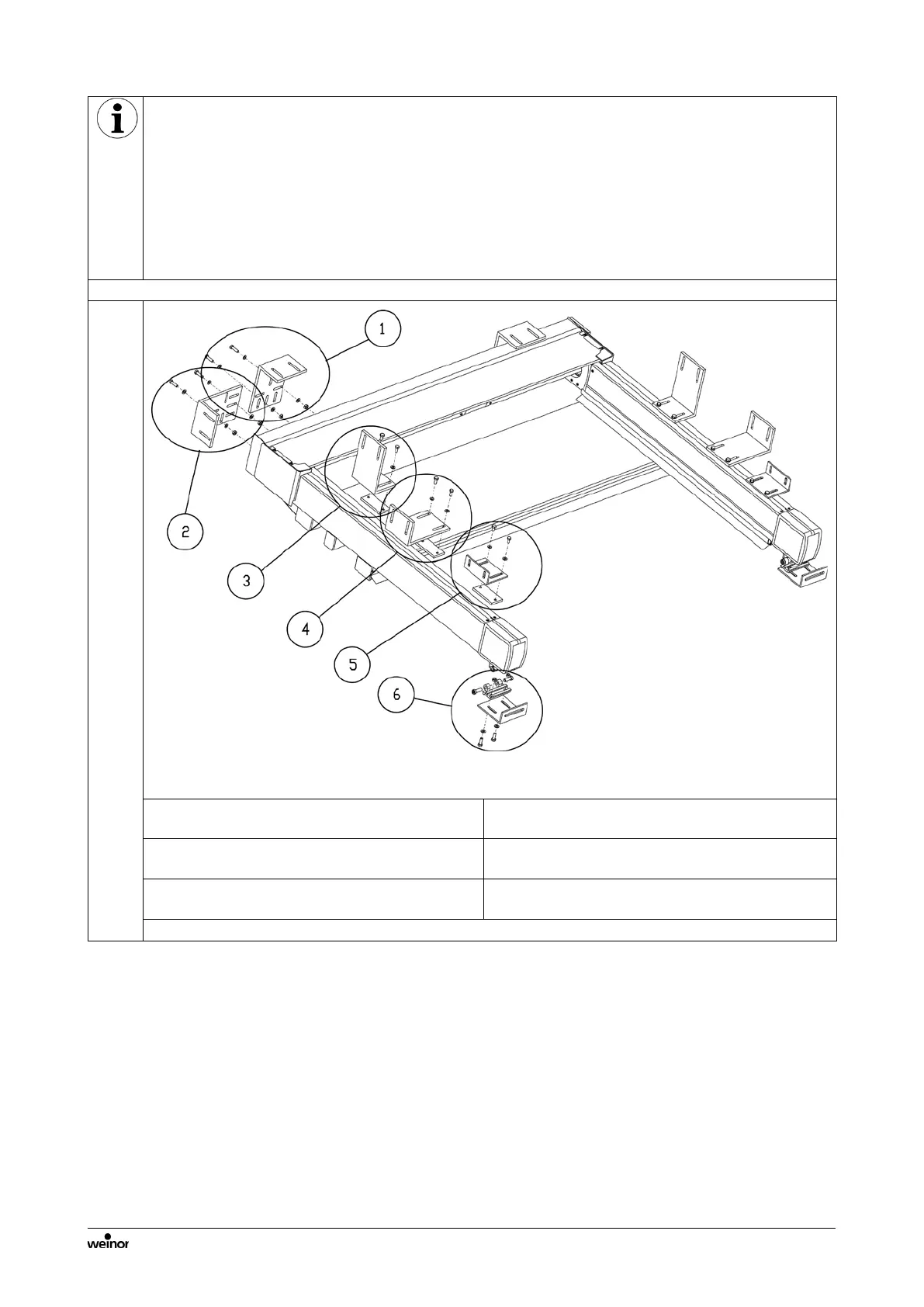

Fig. 8: weinor PergoTex II Basic/ LED
1.
Angle bracket
200x100x10x140 mm complete
4.
Angle bracket
200x100x10x120 mm complete
2.
Angle bracket
200x100x10x140 mm complete
5.
Angle bracket
100x50x5x120 mm complete
3.
Angle bracket
200x100x10x120 mm complete
6.
Angle bracket
124x100x9x120 mm complete
All angles brackets are supplied with attachment screws and fixing plate.
