PergoTex II/ PergoTex II LED
Instructions for assembly
Version 9
05.10.2017
We reserve the right to make technical changes
Item number
118697-0000
Page 44/66
6
Multi-section unit
6.1 Coupling wall gap sealing profile
Coupling the wall gap sealing profile
1. The installation of the wall cap sealing
profile (1) is carried out in accordance
with Chapter 5.1.
2. Before the wall gap sealing profile (1) is
bolted to the wall, push the fixing slider
59 mm (2) into one of the two profiles.
3. Mount the wall gap sealing profiles (1)
to the house wall and align to each
other.
Note:
The coupling point of the two wall gap
sealing profiles must be sealed with an
appropriate jointing compound.
4. Push the fixing slider 59 mm (2)
concentrically over the coupling point of
the wall gap sealing profile (1) and bolt
with 2 grub screws M5x6 (3).

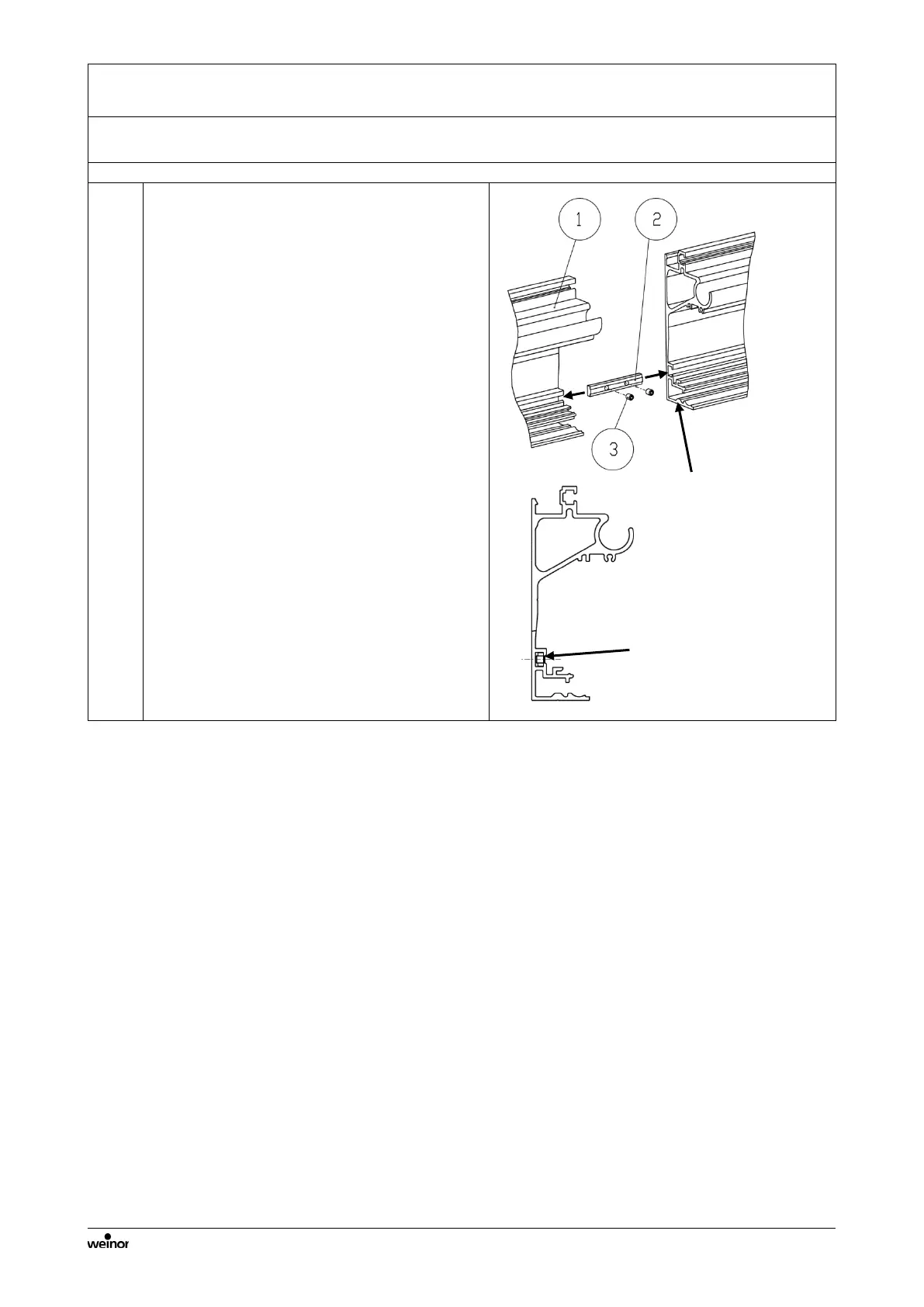

Coupling point:
seal here
Groove in the wall
gap sealing profile for
the fixing slider
