weinor PergoTex II User Manual

PergoTex II/ PergoTex II LED
Instructions for assembly
Version 9
05.10.2017
We reserve the right to make technical changes
Item number
118697-0000
Page 56/66

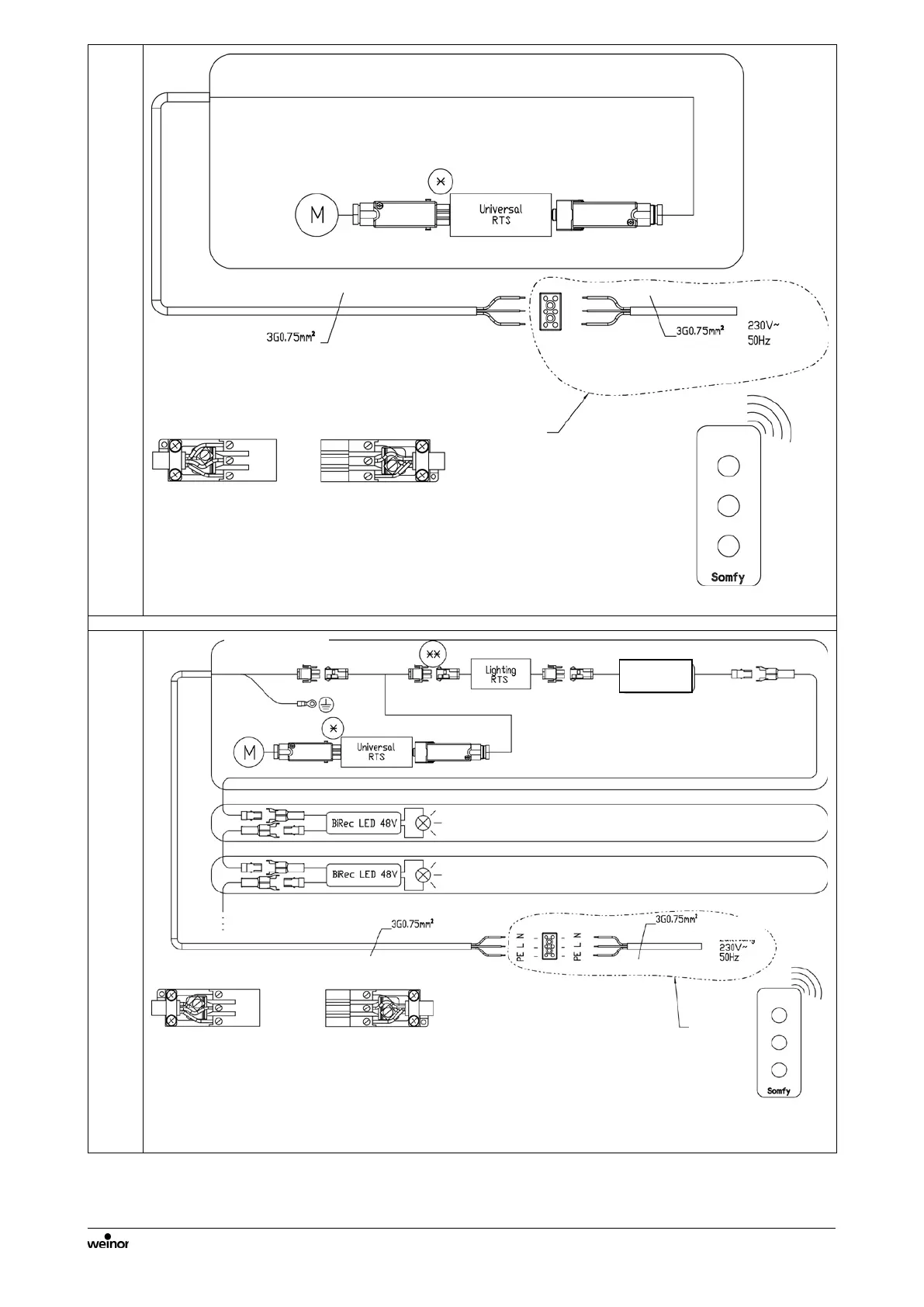

Figure 13: Circuit diagram weinor PergoTex II for Somfy without LED
Figure 14: Circuit diagram weinor PergoTex II for Somfy with LED
Input lead
Input lead
on-site
on-site
Hirschmann
Stas3
1 = N blue
2 = L brown
3 = not allocated
PE = Earthing
Hirschmann
Stak3
1 = N blue
2 = L brown
3 = not allocated
PE = Earthing
Hirschmann
Stak3
1 = N blue
2 = L brown
3 = not allocated
PE = Earthing
Hirschmann
Stas3
1 = N blue
2 = L brown
3 = not allocated
PE = Earthing
*Connect adjustment
kit here
*Connect adjustment kit here
** Disconnect light remote-receiver from power
supply voltage
Power supply
Wall connection
LED transom
LED transom
