WinGD X72-B - Hp Scr System Overview; LDU-20 Page - HP SCR SYSTEM OVERVIEW

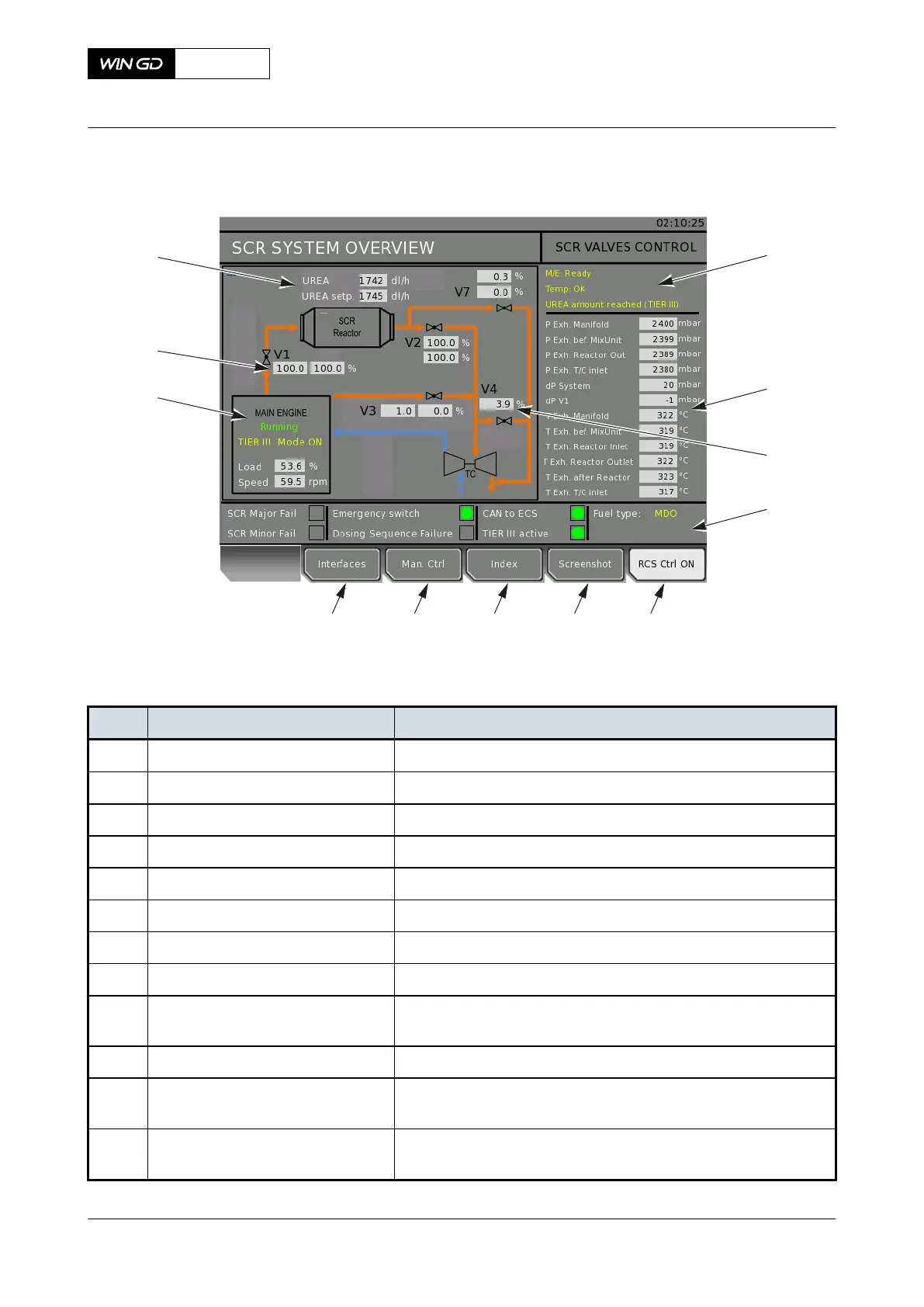

Fig 4-21 LDU-20 page - HP SCR SYSTEM OVERVIEW
007
012
011
010
008
009
001 002 003 004
006
005
Tab 4-3 HP SCR SYSTEM OVERVIEW
Item Function Effect
001 INTERFACES button Opens the interfaces page
002 MAN CTRL button Opens the manual control page
003 INDEX button Opens the index page
004 SCREENSHOT button Makes a screenshot of the current screen
005 RCS CTRL ON button Gets control from the remote control system (if button is active)
006 Status indication Shows the SCR status (failure and mode)
007 Status indication Shows the SCR status
008 Value indication Shows the values
009 Status indication Shows the V4 setpoint if E48 has control (in Tier II mode the
ECS controls V4)
010 Status indication Shows the engine status
011 Status indication Shows the current value and the valve setpoint value in percent
(0% to 100%)
012 Status indication Shows the current value and the setpoint value of the urea so-
lution injection in dl/h
X72-B
AA00-9270-00AAA-043A-A
Operation Manual HP Selective catalytic reduction system
