WinGD X72-B - Wice - Main Control Unit (MCU) Module Replacement

Default Icon
526 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
Tab 6-25 MCU - Control module configuration
Software image download
Configuration image download Normal Boot up without download
B:RI: ethernet ring initiated B:RI: ethernet ring initiated
B:RI: ethernet ring initiated
U:CK: software and config im-
age check initiated
U:CK: software and config image
check initiated
U:CK: software and config image check
initiated
U:PU: pull update check initiat-
ed
U:PU: pull update check initiated U:PU: pull update check initiated
U:SI: push single update initiat-
ed
U:SI: push single update initiated SM:I: USM state “Initialization”
U:SW: software update initiated U:CF: config update initiated SM:R: USM state “Ready”
Reboot
Reboot Blank

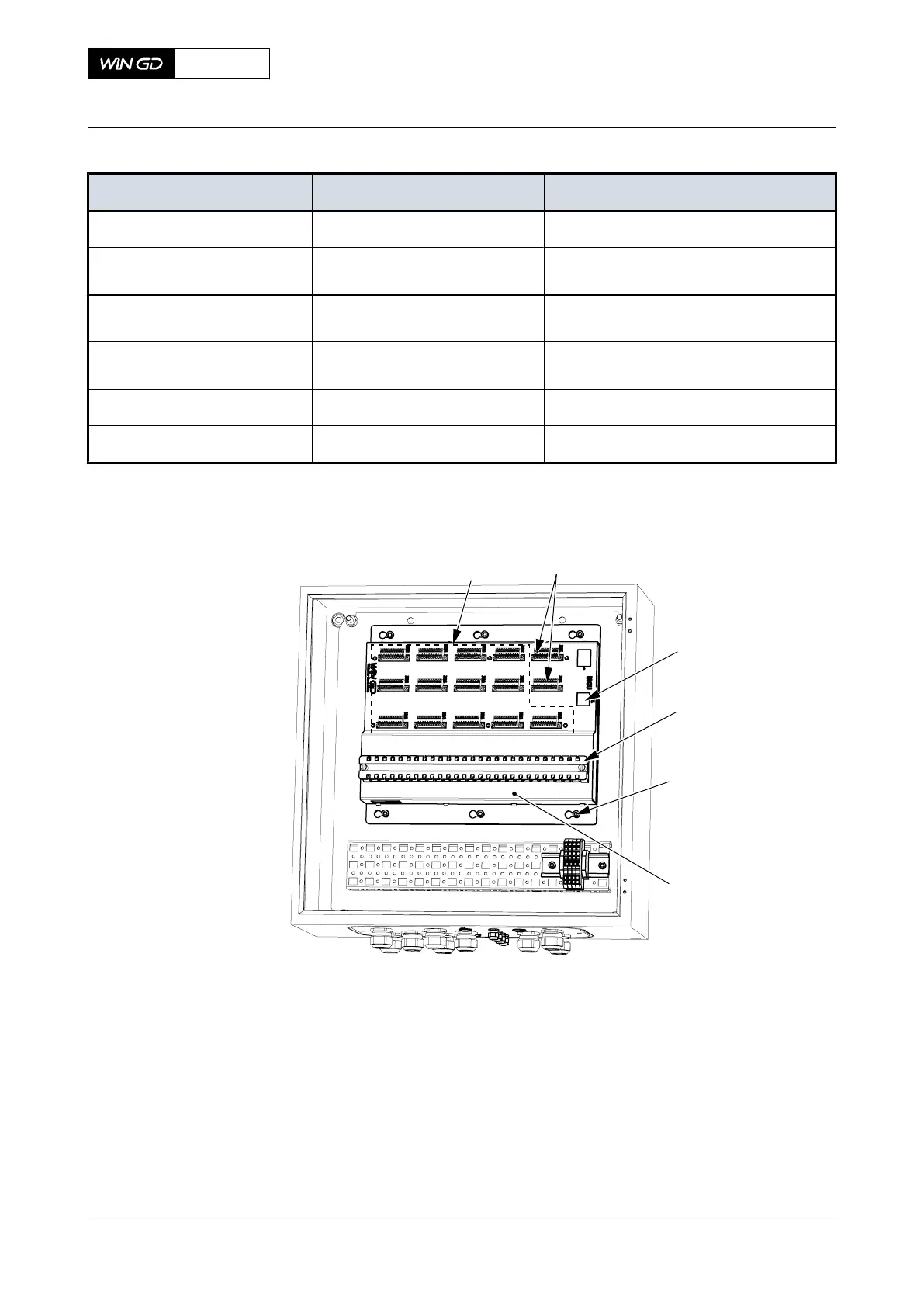

Fig 6-39 WiCE - Main Control Unit (MCU) module replacement
002
001
003
004
005
006
X72-B
AA00-0000-00AAA-200B-A
Operation Manual WiCE - Main Control Unit (MCU) replace
Winterthur Gas & Diesel Ltd.
- 293 - Issue 003 2021-12
